User Manual

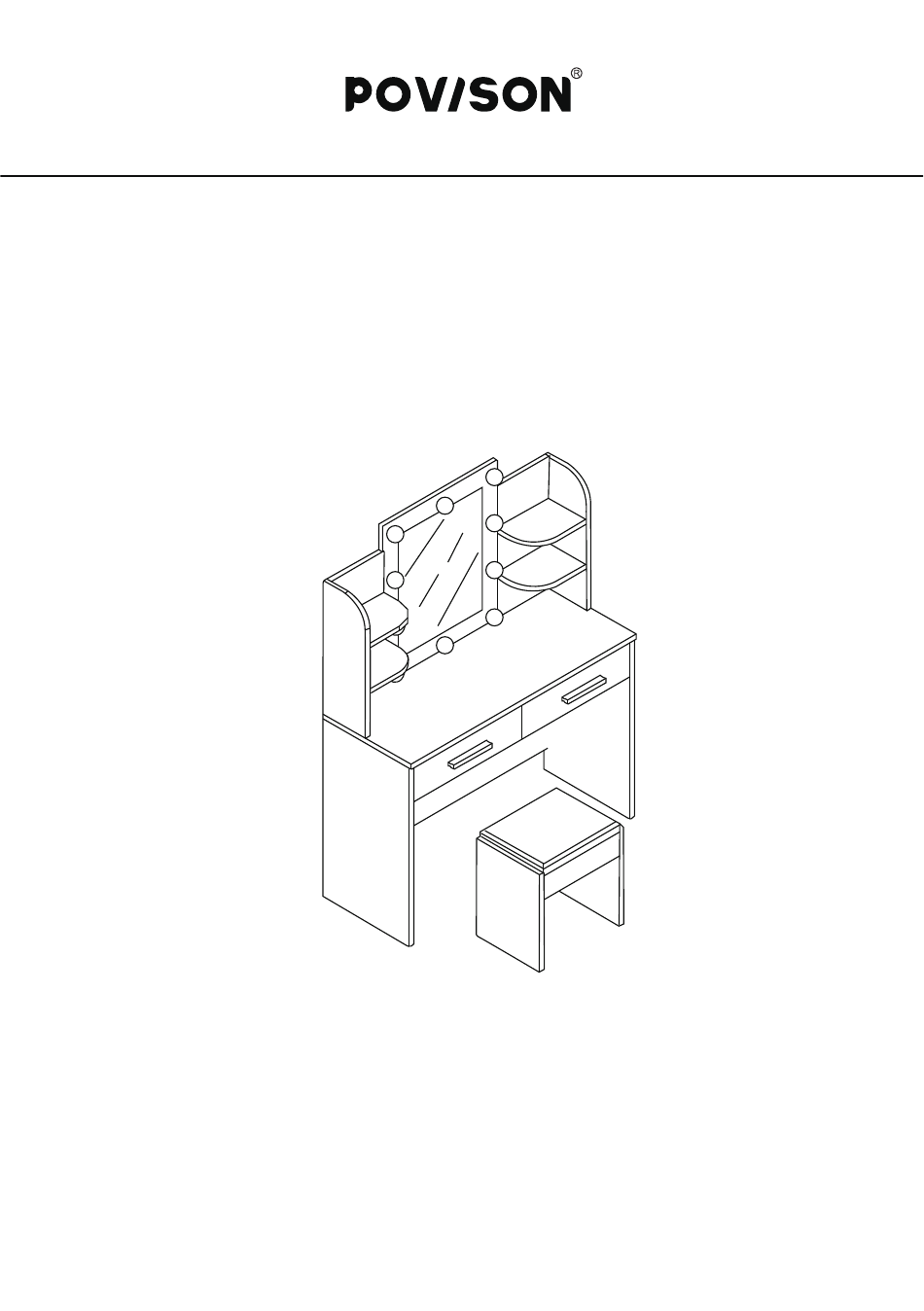

ASSEMBLY INSTRUCTION
VB002AW/VB002AB
There are 2 packages for this item.
You may receive one of the packages first due to
logistics scheduling. Rest assured, the second one will be
delivered within 2 working days after the first one's delivery.
Please email us via <amazoncs@povison.com>
if we could be of further assistance.
Simple Life , Better Home
Advertisement
Related Manuals for POVISON VB002AW
Summary of Contents for POVISON VB002AW
- Page 1 You may receive one of the packages first due to logistics scheduling. Rest assured, the second one will be delivered within 2 working days after the first one's delivery. Please email us via <amazoncs@povison.com> if we could be of further assistance.
-
Page 2: Parts List
Parts List Mirror Panel(1) Upper Left Panel(2) Upper Left Back Panel(3) 2PCS Left Shelf(4) Upper Right Back Panel(5) Upper Right Panel(6) 2PCS Right Shelf(7) Tabletop(8) Left Side Panel(9) Right Side Panel(10) Upper Back Panel(11) Table Stretcher(12) 2PCS Gap Panel(13) Bottom Panel for Table(14) Right side panel of drawer(15) - Page 3 2PCS 2PCS 2PCS Left side panel of drawer(16) Drawer Back Panel(17) Bottom Panel for Drawer(18) 2PCS Drawer Divider(19) Left front Panel (20) Right front Panel (21) 2PCS 2PCS Cushion(22) Side Panel for Stool(23) Stretcher for Stool(24) B 8*40MM A 73PCS 47PCS Seat Panel(25) Cam Bolt and Lock (A)
- Page 4 F 8PCS G 12PCS Foot Nail(F) Sticker(G) Bulb (H) J 16MM I 2PCS 4PCS K 4PCS Pull (I) Countersunk Screw (J) Angle Connector (K) L 6PCS M 1PCS Cam Bolt and Lock (L) Anti-slip Strap (M)
- Page 5 Use hardware A to connect plate 13 Use hardware A to and plate 14. connect plate 13 and plate 11.
- Page 6 Use hardware A and B to connect plate 11、12、14 and plate 9. Use hardware A and B to connect plate 11、12、14 and plate 10 . Ax12 Bx4...
- Page 7 REMARK: When installing, please make sure the screws are flattened, Not crooked; Otherwise the drawers will not be installed perfectly. D1x2 D2x2 Ex8 Fx4...
- Page 8 Use hardware C to Use hardware A connect plate 15、16 to connect plate and plate 17. 19 and plate 17. 20&21 Use hardware A to connect plate 15、16、19 and plate 20&21. 20&21 Fix the hardware I on the board 20&21 with hardware J Ex12 Ix2 Jx4 Kx4 Ax16 Cx12 D3x2...
- Page 9 Use hardware A and B to connect plate 9、10、11、13 and plate 8. Ax9 Bx7...
- Page 10 Use hardware A and B to connect plate 3 and plate 4. Use hardware A and B to connect plate 5 and plate 7. Use hardware A and B to connect plate 3、5 and plate 1. Ax14 Bx8...
- Page 11 Use hardware A and B to connect plate 3、4 and plate 2. Use hardware A and B to connect plate 5、7 and plate 6. Ax8 Bx10...
- Page 12 NOTE: Lines of the same color are connected together！...
- Page 13 Use hardware A and B to connect plate 1、2、3、5、6 and plate 8. Ax10 Bx6 Gx4...
- Page 14 Use hardware B and L to connect plate 23、24 and plate 25. Bx12 Fx4 Lx6...
- Page 15 Assembly Completed Use an An�-slip Strap(M) wherever you want. (Op�onal).
