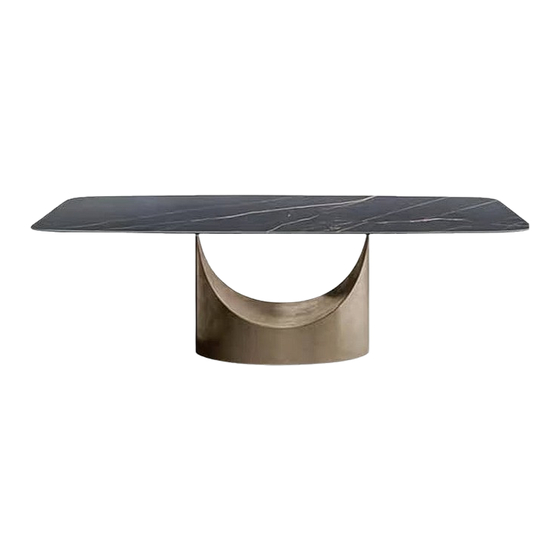

POVISON DT-009HYX24 Installation Instruction

1. Remove the useless frame from the base (keep the screws)
2. Place the correct frame from the base (remove the screws from the old frame and screw them into the
correct frame)
Hexagon Socket
Machine Installation instruction
Screws（M8*45mm）+Gasket
The number of people needed for installation ： 2
Please read the manual carefully
①
before installing this product. And
strictly follow the installation
process
Please take good care of this
②
manual for your next installation
③ Note: Before installation, screw
all the screws to 1/2 of the length
of the installation. After all
screws are half screwed in,
tighten them all together.
Hexagon Socket
Machine
Screws（M8*45mm）+Gasket
DT-009HYX24 Installation
Hexagon Socket
4 0
Machine
Screws （ M8*45mm ）
Hexagon Socket
Machine
6 2
Screws （ M8*15mm ）
10 2
Gasket
Self-Drilling
0
14
Screw(M4*15mm)
Mechanical
0
2
Adjustment Foot
1
Wrench 0
TotaL 2 page; page 1
