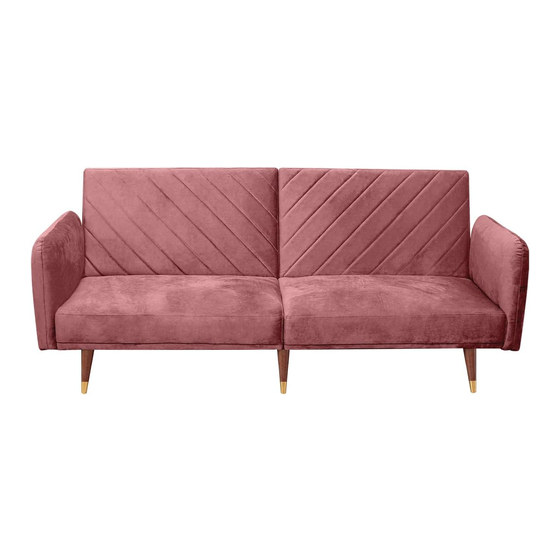

- Page 1 Functional Design, Better Home. User Manual ASSEMBLY INSTRUCTION SF010AL/SF010ADG/SF010AR +1888 666 9122 customerservice@povison.com PovisonOfficial Povison povisonofficial Povison Povison Official Povison...
-
Page 2: Parts List
Parts List PS: NO. , PRAT , QTY Cushion Cushion Armrest Front-on the le�/right Middle Straight leg Armrest Splayed Leg M8*30mm 10*25mm Le�/Right Rear Washer Straight leg Screw M8*100mm 8*12mm M 5mm Adjustable Bolt 1 L Allen Wrench Wrench... -
Page 3: Assembly Instruction
Assembly Instruction Note: Screw(H), Washer(I), Bolt(J), and Nut(K) are used for sofa. 1. Align Cushion (A) to the holes of Cushion (B) from the middle posi�on, then secure by Bolt(J), Washer (I), and Nut(K). - Page 5 2. Connect Leg (F) with Cushion (A) and Cushion (B) through Screw(H) and Washer(I) respec�vely; Leg F is a straight leg. Install Leg (E) on Cushion (A) and Cushion (B) through Screw(H) and Washer(I) respec�vely; Leg E is a splayed leg.
- Page 6 4. Tilt the backrest forward or backward to an op�mal comfortable angle as your need. (Overall Effect)
