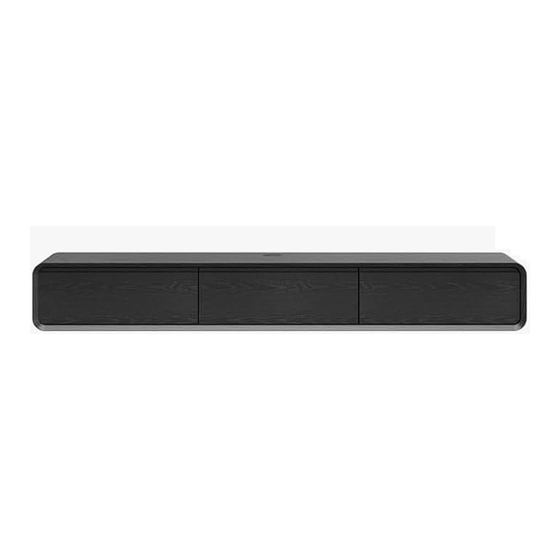

POVISON TS2001B Installation Instructions

1.Place the wall-mounted backboard at a suitable position
on the wall, mark the holes to be installed on the wall and
the backboard with a marker, and then drill holes on the
wall with an electric drill.
3.Put the TV cabinet on the wall-mounted backboard, open
the downward door, insert the self-tapping screws into the
holes of the cabinet body, and tighten them with a
screwdriver or electric drill.
Self-tapping
screw（M4*30mm）
2.After the drilling is completed, insert the expansion plug
into the wall hole, place the wall-mounted backboard, and
insert the self-tapping screw into the position where the
wall hole connects to the backboard hole. Tighten the screws
with a screwdriver.
(1)
Wall mount backplate
Wall hole
Expansion screw
plug for wall
installation
4.Installation complete
Expansion screw
plug for wall
installation
Wall mount backplate
Self-tapping
screw（M4*50mm）
(2)
Hole in the
wall mount
backplate
Self-tapping screw

Installation instruction

TS2001B/BWD/WWD/WD Installation

The number of people needed for installation：2
①
Please read the manual carefully before
installing this product. And strictly
follow the installation process
② Please take good care of this manual
for your next installation
③ Note: Before installation, screw all
the screws to 1/2 of the length of
the installation. After all screws
are half screwed in, tighten them all
together.
On a red ribbon are furniture

Parts list

installation accessories
Quantity
Serial
required for
Shape Name
number
installation
Self-tapping
A 8
screw（M4*50mm）
Expansion screw
B
plugfor wall
8
installation
Self-tapping
C
4
screw（M4*30mm）
D
E
F
G
TotaL 1 page; page 1
Spare
quantity
2
2
2
