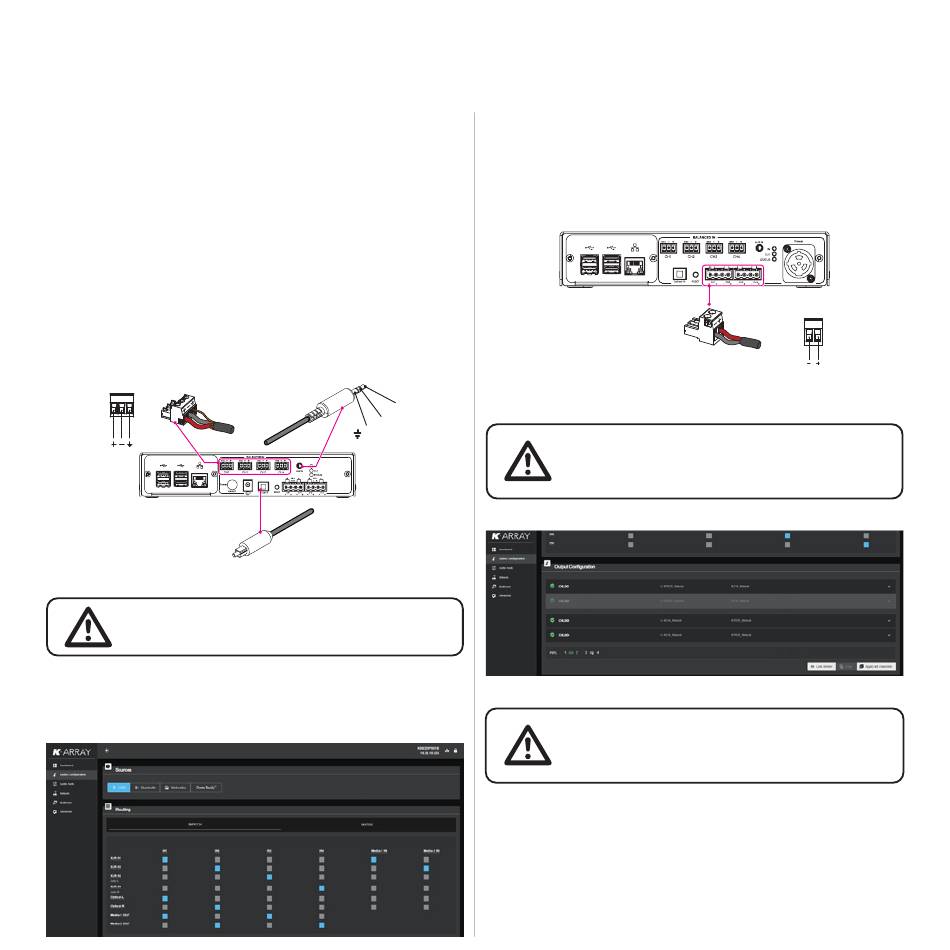

Input wiring

Audio signals can be fed to the Kommander-KA04 amplifier unit
using the input connectors on the rear panel.
The following input ports are available:
• BALANCED IN: 4x Euroblock 1,5/ 3-ST-3,81 ports for
analogue mono balanced and unbalanced signals;
• AUXILIARY IN: 1x 3,5 mm minijack for analogue stereo
unbalanced signals
• DIGITAL IN: 1x Toslink optical connector accepting SP/DIF
stereo digital signals up to 192 kHz sample frequency.
Mono balanced signal
The auxiliary input is paralleled to
mono input CH3 and CH4
In order to route the input signals to the proper output
connectors, the built in web app provides a customizable
INPATCH routing table
Stereo unbalanced signal
Left
Right
GND
Digital SP/DIF
Kommander-KA04

Loudspeaker wiring

A minimum set of Euroblock flying connectors is provided in the
package for connecting the loudspeakers to the amplifier unit.
Two terminals Euroblock 2,5/ 2-ST-5,08
The proper output configuration presets shall
be set in the K-array Connect Mobile App,
K-framework3 or embedded web app
Ensure to set the proper loudspeaker factory
preset corresponding to the actual loudspeaker
connected to the amplifier output channel
