- Page 1 Tiny O2 Controller User Manual Kperformance r2.0 Tiny O2 Controller Software,drivers and latest info can be downloaded at www.Kperformance.be Pre-canbus release...
- Page 2 Tiny O2 Controller User Manual Kperformance r2.0 Warning Do not connect or disconnect the Lambda Sensor • while powered, only do so when unpowered. The Lambda Sensor gets very hot during normal • operation, be careful when handling it. It takes roughly 30 seconds to 2 minutes to warm up •...

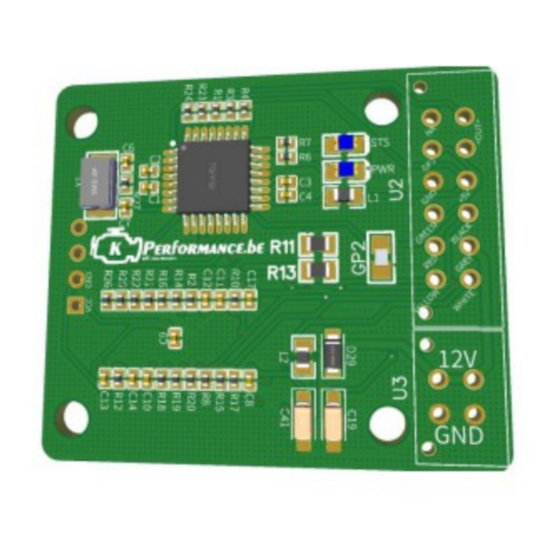

- Page 3 Tiny O2 Controller User Manual Kperformance r2.0 Electrical connections Color Function YELLOW YELLOW LSU YELLOW WHITE WHITE LSU WHITE GREY GREY LSU GREY LSU RED BLACK BLACK LSU BLACK GREEN GREEN LSU GREEN GROUND EXTRA +5V SUPPLY MAX 500mA EXTERNAL GROUND ACTIVATING <OUT>...
- Page 4 Tiny O2 Controller User Manual Kperformance r2.0 Sensor Exhaust Installation The Lambda Sensor should be installed between the 10 • o’clock and the 2 o’clock position, less than 60 degrees from vertical, this will allow gravity to remove water condensation from the sensor. For all Oxygen sensor installations the sensor must be •...
- Page 5 Tiny O2 Controller User Manual Kperformance r2.0 O-LED Display (Optional) 1.3 and 0.96 I2C are supported without software changes. Double check VCC&GND pins on aftermarket OLED-screens! Low budget/quality screens can cause freeze and hang up of Tiny Wideband Controller! Initial stand-by screen will show: Icon Sensor connection •...
- Page 6 Tiny O2 Controller User Manual Kperformance r2.0 Starting and operating Linear output settings: 0V = Lambda 10.20 = AFR 22.35 5V = Lambda 0.650 = AFR 9.50 Starting of the controller can be done by grounding “GP2” (solder bridge on PCB) or external start grounding on molex connector, with customer requirements setting.
- Page 7 Tiny O2 Controller User Manual Kperformance r2.0 User Remarques and info Pre-canbus release...
