INSERTION LOSS OF THE THROUGH CALIBRATION PATH

To calibrate board trace losses, a through calibration path is provid-
ed between the J6 and J5 connectors. J6 and J5 must be populated
with SMA RF connectors to use the through calibration path.

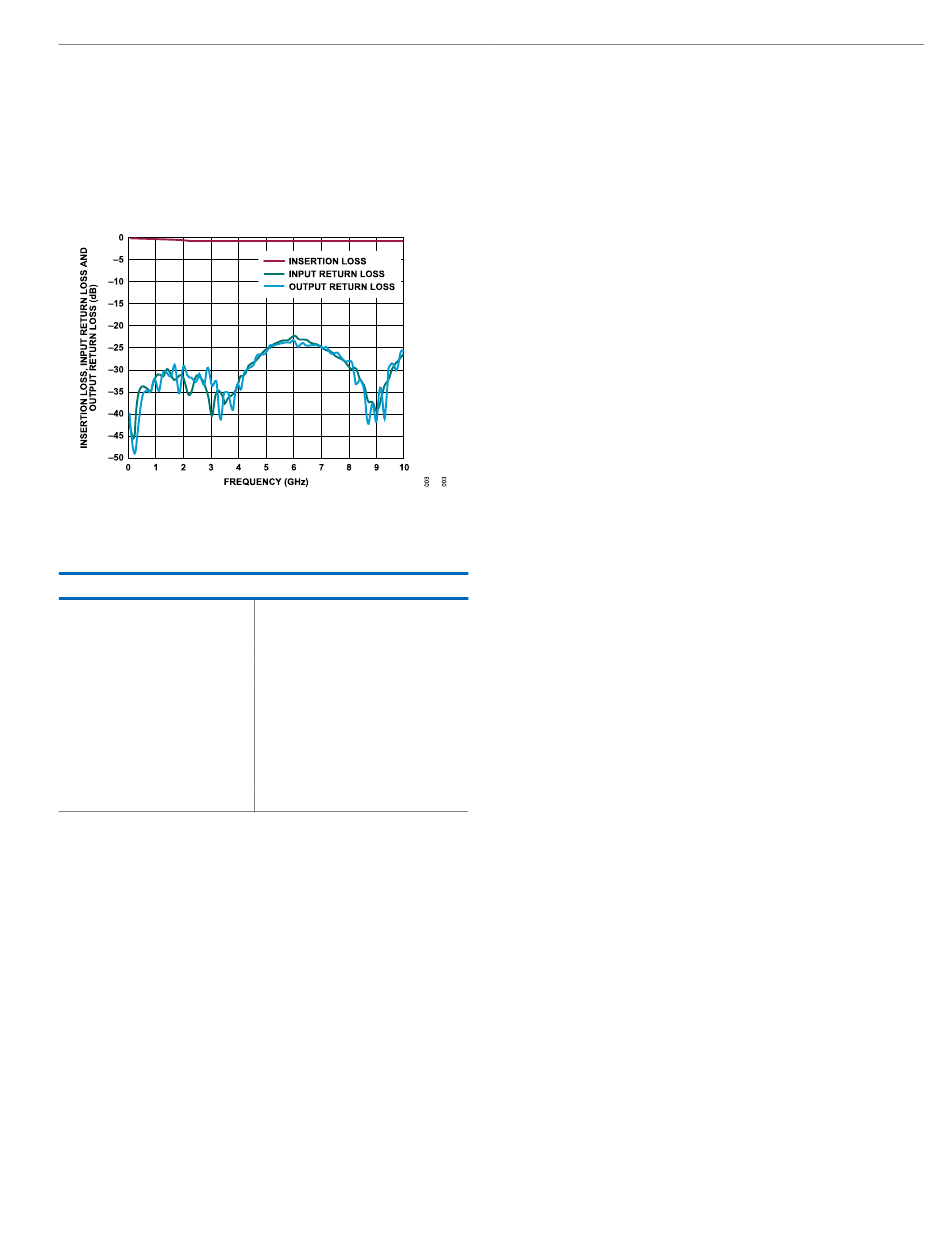

Figure 3 shows the insertion loss, input return loss, and output
return loss of the through calibration path.
loss of the through path vs. frequency.
Figure 3. Insertion Loss, Input Return Loss, and Output Return Loss of
Through Calibration Path
Table 2. Insertion Loss of Through Calibration Path
Frequency (GHz)
1
2
3
4
5
6
7
8
9
10
analog.com
Table 2 lists the insertion
Insertion Loss (dB)
−0.24
−0.36
−0.48
−0.45
−0.5
−0.55
−0.61
−0.64
−0.65
−0.65
