Operating Instructions
Level Switch Type UNS
1
Intended Applications ................................................................................................... 2
2
Safety Instructions ......................................................................................................... 2
3
Standards ....................................................................................................................... 3
4
Warranty/Guaranty ......................................................................................................... 3
5
Transport/Storage .......................................................................................................... 3
6
Principle of Operation ................................................................................................... 4
7
Installation/Commissioning .......................................................................................... 4
8
Maintenance/Cleaning ................................................................................................... 9
9
Technical Data .............................................................................................................. 10
Barksdale GmbH
Dorn-Assenheimer Straße 27
D-61203 Reichelsheim
Phone:
+49 (6035) 949-0
Fax:
+49 (6035) 949-111 and 949-113
email:
info@barksdale.de
Internet: www.barksdale.de
Art. no.: 923-1940
Index B, 11.01.2019
Specifications are subject to
changes without notice!
1
Advertisement
Table of Contents

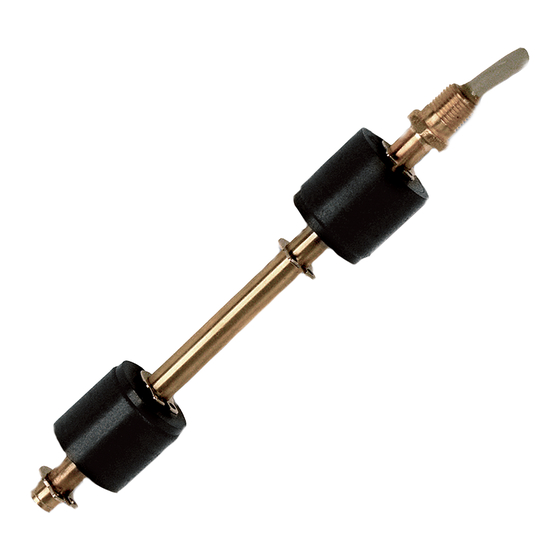

Related Manuals for Barksdale UNS1000
Summary of Contents for Barksdale UNS1000
- Page 1 Operating Instructions Dimensions UNS1000 Level Switch Type UNS Dimensions UNS2000 Intended Applications ....................2 Safety Instructions ......................2 Standards ........................3 Warranty/Guaranty ......................3 Transport/Storage ......................3 Principle of Operation ....................4 ...
- Page 2 Warranty/Guaranty Warranty Every person installing, commissioning or operating Barksdale level switches must have read and understood these operating instructions. Our scope of delivery and services is governed by the legal warranties and warranty periods. Terms of guaranty...
- Page 3 Principle of Operation The Barksdale level switches are supplied completely assembled. The level switches are installed through the tank top or bottom side. Sufficient distance must be kept to the tank wall and any installations. The float must move freely.
- Page 4 Inductive Loads Capacitive Loads and Lamp Loads Direct current (DC): Connect recovery diode parallel to the load, see picture 4. Increased inrush currents occur for capacitive loads and lamp loads. High inrush currents can lead to disturbances – even to fusing of contacts. During wiring of charged capacitors (e.g. cable Polarity must ensure that the diode will inhibit at normal operating voltage and short-circuit the capacities) a sudden discharge will occur.
- Page 5 Group 3 SPST Group 4 SPDT CAUTION Terminal Terminal The following notes must absolutely be observed: black The permissible data (see type label) must be kept. The level switch must be protected against magnetic fields. blue blue The sliding tube of the level switch must not be bent and severe shocks must be avoided, pink pink grey...
- Page 6 Mounting material Flange and screw connection Installation position from the top or from the bottom on the side Tightening torque UNS1000-G (G1‘): 40 ±5 Nm Stem material Brass CrNi steel 1.4571 CrNi steel 1.4571 CrNi steel 1.4571 Float BN25, Ø = 25 mm; VA27, Ø = 27 mm BN30, Ø...
