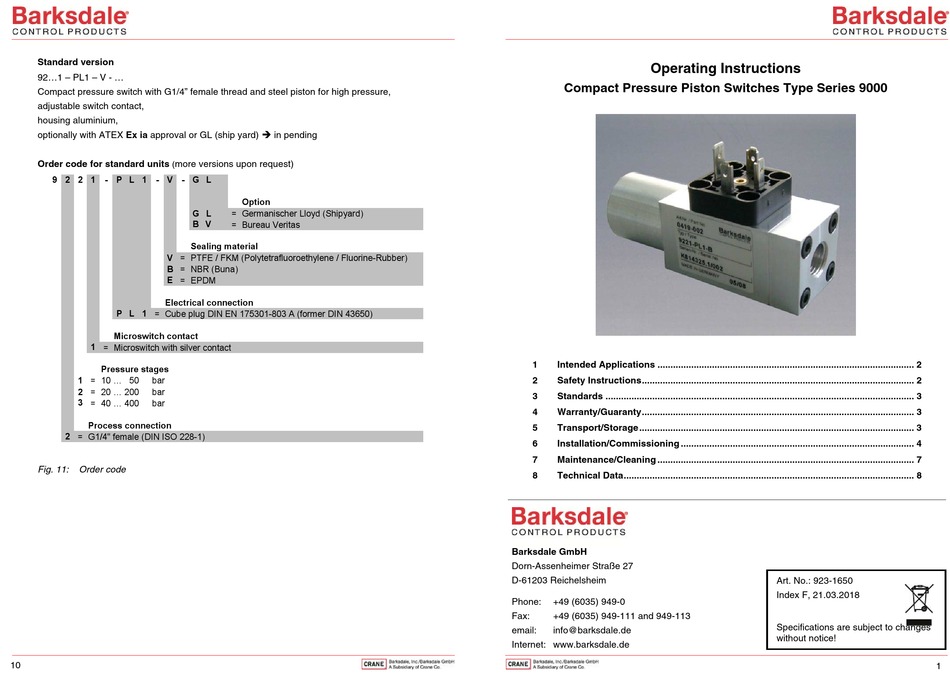

Standard version
92...1 – PL1 – V - ...
Compact pressure switch with G1/4" female thread and steel piston for high pressure,
adjustable switch contact,
housing aluminium,
optionally with ATEX Ex ia approval or GL (ship yard) in pending
Order code for standard units
more versions upon request)
(
9 2 2 1
- P L 1 - V - G L
Sealing material
V = PTFE / FKM (Polytetrafluoroethylene / Fluorine-Rubber)
B = NBR (Buna)
E = EPDM
Electrical connection
P L 1 = Cube plug DIN EN 175301-803 A (former DIN 43650)
Microswitch contact
1 = Microswitch with silver contact
Pressure stages
1 = 10 ... 50
bar
A = 145 ... 725
2 = 20 ... 200
bar
B = 290 ... 2901
3 = 40 ... 400
C = 580 ... 5802
bar
Process connection
2 = G1/4" female (DIN ISO 228-1)
Fig. 11:
Order code
10
Option
G L
= Germanischer Lloyd (Shipyard)
B V
= Bureau Veritas
psi
psi
psi
Operating Instructions
Compact Pressure Piston Switches Type Series 9000
1
Intended Applications ................................................................................................... 2
2
Safety Instructions ......................................................................................................... 2
3
Standards ....................................................................................................................... 3
4
Warranty/Guaranty ......................................................................................................... 3
5
Transport/Storage .......................................................................................................... 3
6
Installation/Commissioning .......................................................................................... 4
7
Maintenance/Cleaning ................................................................................................... 7
8
Technical Data ................................................................................................................ 8
Barksdale GmbH
Dorn-Assenheimer Straße 27
D-61203 Reichelsheim
Phone:
+49 (6035) 949-0
Fax:
+49 (6035) 949-111 and 949-113
email:
info@barksdale.de
Internet: www.barksdale.de
Art. No.: 923-1650
Index F, 21.03.2018
Specifications are subject to changes
without notice!
1
Advertisement
Related Manuals for Barksdale 9000 Series
Summary of Contents for Barksdale 9000 Series
- Page 1 Transport/Storage ......................3 2 = G1/4" female (DIN ISO 228-1) Installation/Commissioning ..................4 Maintenance/Cleaning ....................7 Fig. 11: Order code Technical Data ........................ 8 Barksdale GmbH Dorn-Assenheimer Straße 27 D-61203 Reichelsheim Art. No.: 923-1650 Index F, 21.03.2018 Phone: +49 (6035) 949-0...
-
