Barksdale D1T Operating Instructions Manual

´ß0Electrical Ratings
Micro Special Volt AC Ind.
switch Characteristics 50/60 Hz Load
A
H Microswitch 125 10
with silver 250 10
contacts
M Microswitch 125 10
with silver 250 10
contacts
GH Microswitch 125 1
with gold plated
contacts for low
GM 30 0.1
voltage and low
current
IMPORTANT
480 V AC and 15 A only upon request
We recommend to use a prefuse of the maximum current rating from the table above according
to the load switched.
We recommend gold plated contacts for all intrinsically safe and other applications with low
voltage/power.
Operating life time
Normal expected service life (expressed in the number of cycles over the full adjustment
range) is appr. 1 million for the pressure switch. This may be extended to 2.5 million cycles
max. if only a part of the adjustment range is used (about 20%).
Switch sensor life may also be effected negatively by:

Media not compatible with the wetted materials.

Too high switch cycling speed or more than 20 cycles per minute.

System cycling pressure exceeding the top of the adjustable range.
14
Res. Volt DC Ind. Res. Notes
Load Load Load
A A A
10 6 0,50 0,5 Small hysteresis;
10 to high AC / low DC
24 loads
10 12 5,00 15,0 Medium hysteresis;
10 24 1,00 2,0 high AC and DC
250 0,25 0,4 loads
1 24 1,00 1,00 low change-back
values
0.1 30 0,10 0,10 Medium hysteresis
Operating Instructions

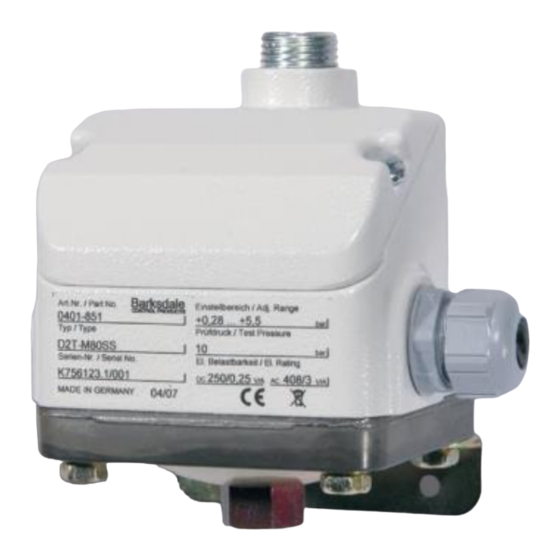

Single/Dual Metal Diaphragm Pressure Switches D1T/D2T
Single/Dual Metal Diaphragm Differential Pressure Switches DPD1T/DPD2T
1 Intended Applications .................................................................................................. 2
2 Safety Instructions ....................................................................................................... 2
3 Standards ..................................................................................................................... 3
4 Warranty/Guaranty ....................................................................................................... 3
5 Installation/Commissioning ......................................................................................... 4
6 Maintenance/Cleaning ................................................................................................. 8
7 Technical Data ............................................................................................................. 9
Barksdale GmbH
Dorn-Assenheimer Straße 27
D-61203 Reichelsheim
Phone: +49 (6035) 949-0
Fax: +49 (6035) 949-111 and 949-113
email: info@barksdale.de
Internet: www.barksdale.de
Art. no.: 923-1545
Index L, 26.08.2022
Specifications are subject to
changes without notice!
1
