UM3476
User manual
Getting started with STEVAL-A6983IV1 evaluation board based on A6983I, 38 V,
10 W synchronous iso-buck converter for isolated applications
Introduction
The
STEVAL-A6983IV1
is an evaluation board based on ST A6983I, 38 V, 10 W synchronous iso-buck converter designed for
isolated applications.
The primary output voltage can be accurately adjusted, whereas the isolated secondary output is derived by using a given
transformer ratio. No optocoupler is required. The primary sink capability up to -4.5 A (even during soft-start) allows a proper
energy transfer to the secondary side as well as enables a tracked soft-start of the secondary output. The control loop is based
on a peak current mode architecture and the device operates in forced PWM. The 390 ns blanking time filters oscillations,
generated by the transformer leakage inductance, making the solution more robust.
The compact QFN-16 3x3 mm package and the internal compensation of the A6983I help minimizing design complexity and
size.
The switching frequency can be programmed in the 200 kHz - 1 MHz range with optional spread spectrum for improved EMC.
The EN pin provides enable/disable functionality. The typical shutdown current is 2 uA when disabled. As soon as the EN pin is
pulled-up the device is enabled and the internal 1.3 ms soft start takes place. The A6983I features a power-good open collector
that monitors the FB voltage. Pulse by pulse current sensing on both power elements implements an effective constant current
protection and thermal shutdown prevents thermal run-away. Due to the primary reverse current limit, the secondary output is
protected against short-circuit events.
The evaluation board generates an isolated unregulated voltage and provides the possibility to use a postregulation to generate
a dual voltage (layout available on the bottom of the PCB, components not mounted).

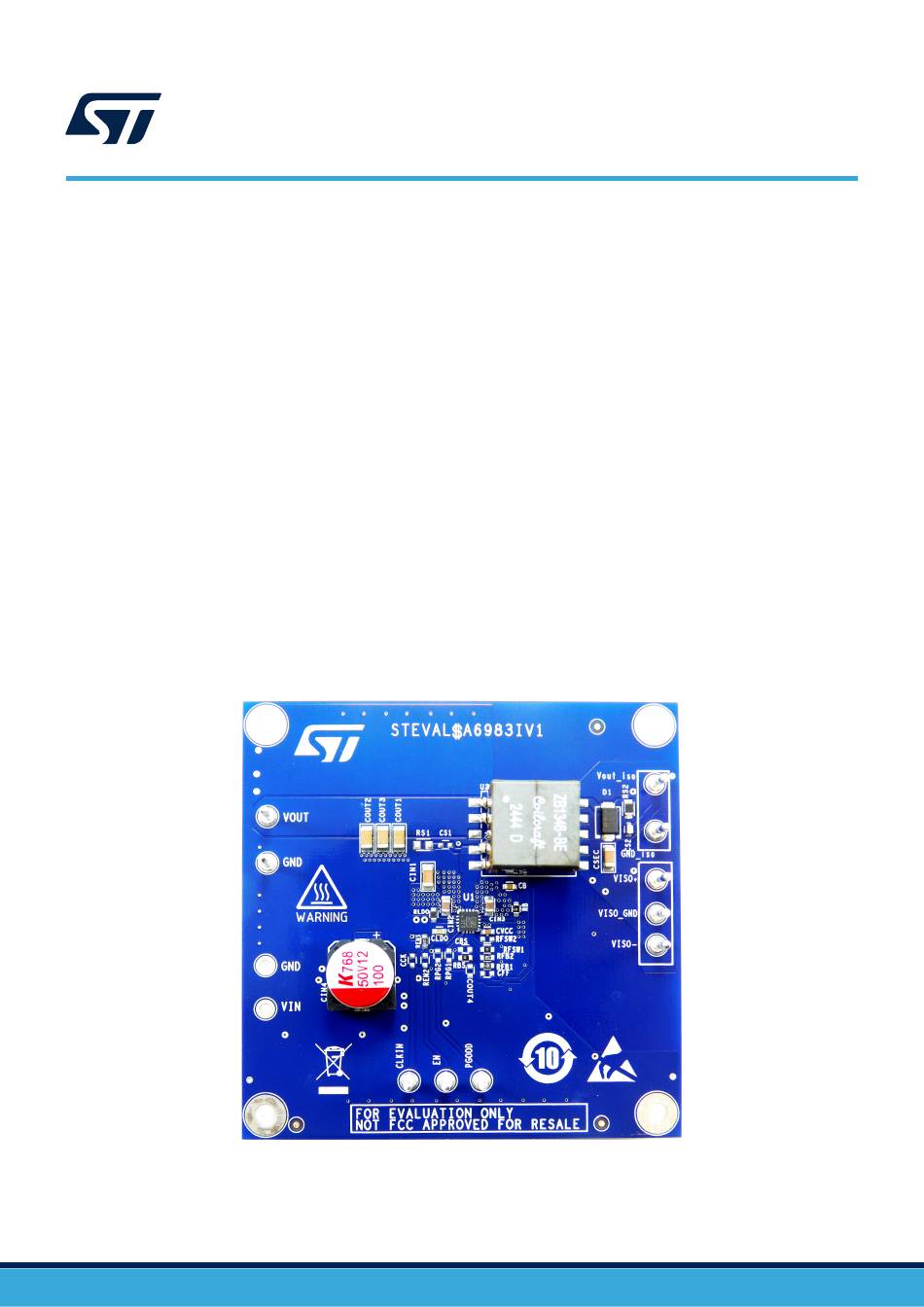

Figure 1.
STEVAL-A6983I
Notice:
For dedicated assistance, submit a request through our online support portal at www.st.com/support.
UM3476 - Rev 1 - February 2025
www.st.com
For further information, contact your local STMicroelectronics sales office.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-A6983IV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST STEVAL-A6983IV1

  • Page 1: Figure 1. Steval-A6983I

    Introduction STEVAL-A6983IV1 is an evaluation board based on ST A6983I, 38 V, 10 W synchronous iso-buck converter designed for isolated applications. The primary output voltage can be accurately adjusted, whereas the isolated secondary output is derived by using a given transformer ratio.
  • Page 2: Getting Started

    UM3476 Getting started Getting started Safety instructions This board is intended for use by skilled technical personnel who are suitably qualified and familiar with the installation, use, and maintenance of power electronic systems. The same personnel must be aware of and must apply national accident prevention rules.
  • Page 3: How To Use The Board

    5 V at the primary not isolated output and an unregulated voltage at the isolated output that varies with the applied load (see Section 5: STEVAL-A6983IV1 performance and waveforms). The switching frequency is set to 400 kHz.
  • Page 4: Connectors And Test Points

    UM3476 Connectors and test points Connectors and test points VIN - TPxx This connector is for input supply voltage. This voltage is provided, through the input EMI filter, to the pin VIN of the device. A power supply ranging from 4 V to 38 V should be connected to this test point, setting a proper current limit.
  • Page 5: Steval-A6983Iv1 Layout

    UM3476 STEVAL-A6983IV1 layout STEVAL-A6983IV1 layout STEVAL-A6983IV1 is a 2-layer PCB with 1 oz copper thickness. Figure 4. PCB layout (top) Figure 5. PCB layout (bottom) UM3476 - Rev 1 page 5/28...
  • Page 6: Steval-A6983Iv1 Performance And Waveforms

    UM3476 STEVAL-A6983IV1 performance andwaveforms STEVAL-A6983IV1 performance and waveforms Efficiency Figure 6. Efficiency at different VIN, f = 400 kHz Figure 7. Efficiency vs f = 12 V Figure 8. Efficiency vs f = 18 V Figure 9. Efficiency vs f...
  • Page 7: Figure 12. Load Regulation Vs F Sw , Vin = 18 V

    UM3476 STEVAL-A6983IV1 performance andwaveforms Figure 12. Load regulation vs f = 18 V Figure 13. Load regulation vs f = 24 V Winding currents Figure 14. = 12 V, f = 400 kHz, I = 450 Figure 15. = 12 V, f...
  • Page 8: Input Emi Filter

    UM3476 Input EMI filter Input EMI filter The STEVAL-A6983IV1 is compliant with CISPR16-4-2 due to the embedded EMI filter (bottom side). The EMI filter consists of: • A double pi filter with an inductor (Lf2). • A ferrite bead (Lf1).
  • Page 9: Steval-A6983Iv1 Emc Compliance

    UM3476 STEVAL-A6983IV1 EMC compliance STEVAL-A6983IV1 EMC compliance The STEVAL-A6983IV1 is certified by an external supervisor company and Class A compliant with the following standards, for industrial use only: Table 1. List of standards which the STEVAL-A6983IV1 complies with Reference standard...
  • Page 10: Figure 19. Conducted Emc Test Results Of The Steval-A6983Iv1

    UM3476 STEVAL-A6983IV1 EMC compliance Figure 19. Conducted EMC test results of the STEVAL-A6983IV1 Figure 20. Radiated EMC test results of the STEVAL-A6983IV1 (horizontal on the left, vertical on the right) UM3476 - Rev 1 page 10/28...
  • Page 11: Disclaimer

    UM3476 Disclaimer Disclaimer The certification of the STEVAL-A6983IV1 is fulfilled with the schematic, the layout and the BOM indicated in the sections Section 13: Schematic diagrams, Section 14: Bill of materials Section 4: STEVAL-A6983IV1 layout. Any drift from the schematic, the layout, and the BOM described in the sections...
  • Page 12: Board Setting Capability

    UM3476 Board setting capability Board setting capability The STEVAL-A6983IV1 provides the possibility to change some setting in accordance with the application conditions. Switching frequency The Rfsw2 is by default equal to 0 Ω sets the switching frequency to 400 kHz and enables the dithering.
  • Page 13: Figure 22. Resistors Enable For Thresholds Setting

    Board setting capability Enable thresholds The STEVAL-A6983IV1 is equipped with the R = 100 kΩ as pull-up resistor to keep the device always enabled. The power-up threshold can be adjusted by the user with a proper selection of the R and R = 1.2 ∙...
  • Page 14: Figure 23. Resistors Of The Primary Output Divider

    UM3476 Board setting capability Figure 23. Resistors of the primary output divider Note: Changing the value of the primary output voltage implies the variation of the isolated output voltage too. UM3476 - Rev 1 page 14/28...
  • Page 15: Edesignsuite

    The eDesignSuite software available on the www.st.com website helps in the selection of the devices as well as in the design of the external components suitable for a certain application. After inserting the application conditions, the device can be selected and the design of the external components is automatically carried out.
  • Page 16: Application Idea

    Application idea 11.1 Post regulation circuitry A post regulation circuitry is foreseen in the layout at the bottom of the STEVAL-A6983IV1. No components are embedded. Table 4 proposes the possible components that can be mounted according to the desired post-regulated voltage(s).
  • Page 17: Table 6. Main Parameters Of The Transformer Zd2087-Ae

    UM3476 Application idea Characteristic of the transformer for this solution are summarized in the table below. Table 6. Main parameters of the transformer ZD2087-AE Description Value Turn ratio 1:2.55 Magnetizing inductance Leakage inductance 150 nH Primary winding resistance 30 mΩ Secondary winding resistance 293 mΩ...
  • Page 18: Thermal Performance

    UM3476 Thermal performance Thermal performance The picture below shows the thermal performance of the STEVAL_A6983IV1 detected by an infrared camera under the specified conditions. Figure 28. VIN = 12 V, f = 400 kHz, I = 450 mA (hotspot around 74°C) OUTiso Figure 29.
  • Page 19: Schematic Diagrams

    Schematic diagrams Figure 30. STEVAL-A6983IV1 circuit schematic Rpg2 TP 47 P GOOD Rpg1 Rfb1 BOTTOM Clkin TP 14 A6983I TP 13 Rfs w1 Rfs w2 Rfb2 EP 1-S GND Rs 2 Cs 2 Cvcc EN/CLKIN Vout_is o Cldo TP 8...
  • Page 20: Bill Of Materials

    UM3476 Bill of materials Bill of materials Table 7. STEVAL-A6983IV1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code U1, QFPN Isobuck 3X3X0.80 16L converter A6983IQTR PITCH 0.50 A6983I Transformer Coilcraft ZB1346-BE LDO, DFN 6L 2X2X 0.75 Linear LDH40PURY PITCH0.65...
  • Page 21: Table 8. Main Parameters Of The Transformer Zb1346-Be

    UM3476 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code Aluminium Organic Cin4 100uF KEMET A768MS107M1HLAV024 Polymer Capacitor Cout1, Cout2, 22uF MLCC Taiyo Yuden EMK316BB7226ML-T Cout3 Ciso+ MLCC Ciso- MLCC 180pF MLCC Vishay VJ0603A181FXAPW1BC Csec, Cf1, Samsung Electro 10uF MLCC CL31B106KBHNNNE...
  • Page 22: Board Versions

    UM3476 Board versions Board versions Table 9. STEVAL-A6983IV1 versions Finished good Schematic diagrams Bill of materials STV$A6983IV1A STV$A6983IV1A schematic diagrams STV$A6983IV1A bill of materials 1. This code identifies the STEVAL-A6983IV1 evaluation board first version. UM3476 - Rev 1 page 22/28...
  • Page 23: Regulatory Compliance Information

    UM3476 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product.
  • Page 24: Revision History

    UM3476 Revision history Table 10. Document revision history Date Revision Changes 11-Feb-2025 Initial release. UM3476 - Rev 1 page 24/28...
  • Page 25: Table Of Contents

    STEVAL-A6983IV1 performance and waveforms ........
  • Page 26: List Of Tables

    List of standards which the STEVAL-A6983IV1 complies with ....... . .
  • Page 27: List Of Figures

    OUTiso Figure 18. Capacitor connection at the bottom of STEVAL-A6983IV1 for EMC compliance ..... . . 9 Figure 19. Conducted EMC test results of the STEVAL-A6983IV1 ........10 Figure 20.
  • Page 28: Disclaimer

    ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
