Arjo Huntleigh Hydroven 12 LymphAssist Professional Quick Reference Manual

Quick Reference Guide

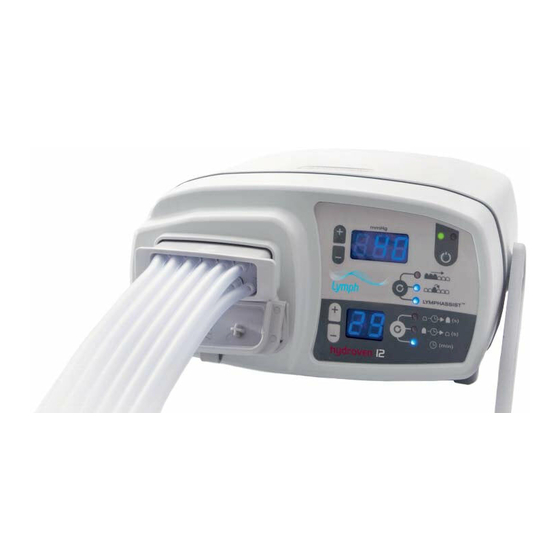

Hydroven 12 LymphAssist
®
Run/Standby
Button
Run and Sleep
Mode
Indicators
Shown in Run
Mode
Inflation Mode
Select Button
and Indicators
Shown in
Sequential Mode
Pressure
Display and
Setting Buttons
Therapy Setting
Select Button
and Indicators
Shown in Inflate
setting
Therapy Setting
Display and
Setting Buttons
Normal Setting
Continuous Therapy
779353-EN-5 02/2023
Professional
™

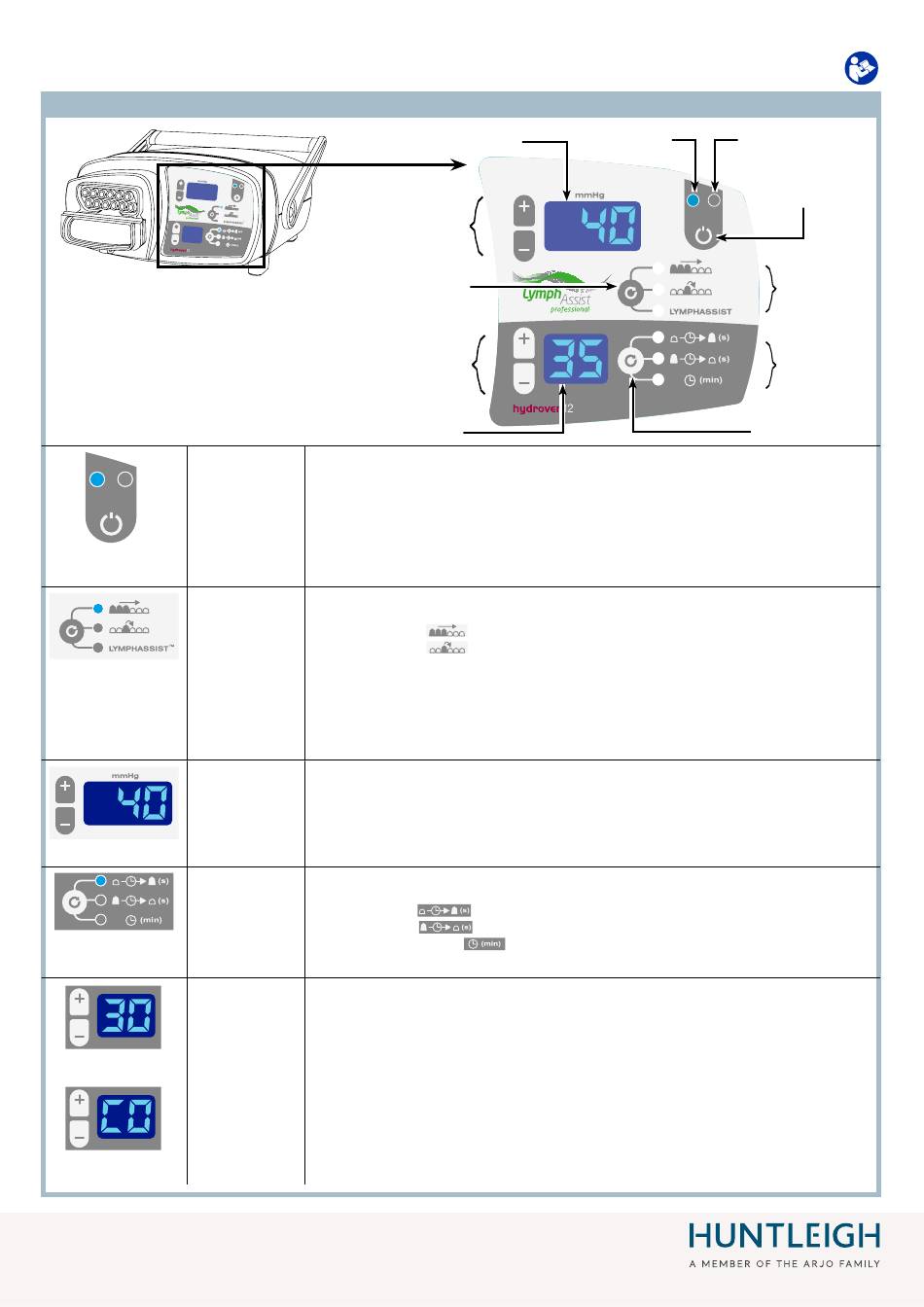

Controls and Indicators
Pressure
Display
Pressure
setting
buttons
Inflation mode
select button
Therapy
setting
buttons
Therapy setting
display
When the pump is in Standby, both the Run and Sleep Mode indicators are extinguished.
Press and hold the Run/Standby button for 3 seconds to start the patient therapy. The
Run Mode indicator is illuminated to show that the pump is in Run mode.
During therapy, the pump can be stopped by pressing and holding the Run/Standby
Button for 3 seconds. After therapy, press and hold the Run/Standby button to return the
pump to Standby.
After 10 minutes in Standby mode with no activity, the pump automatically enters Sleep
Mode with only the Sleep Mode indicator illuminated.
Repeated presses of the Inflation Mode select button will cycle the pump through the five
types of patient therapy, as follows:
• Sequential
• Wave
• LymphAssist
• LymphAssist plus Sequential (linked therapy cycles)
• LymphAssist plus Wave (linked therapy cycles)
The indicator adjacent to the selected Inflation Mode is illuminated.
With 'linked' therapy cycles, both Inflation Mode indicators are initially illuminated.
During therapy, one indicator will flash to show which cycle is currently operating.
The value shown on the Pressure display is the set pressure for the first garment chamber
to be inflated. Press the + and - Pressure Setting buttons to adjust the set pressure. The
pressure ranges are:
• Sequential: 15-120mmHg.
• Wave: 15-100mmHg.
• LymphAssist: 15-40mmHg.
Repeated presses of the Therapy Setting select button selects which parameter is shown
on the Therapy Setting display as follows:
• Inflate time
• Deflate time
• Treatment Duration
The indicator adjacent to the selected Therapy Setting is illuminated.
Use the Therapy Setting Select button to select which parameter is shown on the
Therapy Setting display. Press the + and - Therapy Setting buttons to change the value
shown on the Therapy Setting display.
• Inflate time: Sequential - 30-95sec (15-80mmHg); 60-95sec (85-120mmHg)
Wave/LymphAssist - 60-95sec
• Deflate time: Sequential - 10-95sec (15-80mmHg); 60-95sec (85-120mmHg)
Wave/LymphAssist - 15-60sec
• Inflate and Deflate times can only be adjusted when the pump is in Standby.
• Treatment Duration: 10-99 minutes.
If you hold down the + Therapy Setting button when the Treatment duration gets to 99
minutes, the Therapy Setting display will show CO (continuous therapy =2 hours).
The Treatment duration can be adjusted at any time, in Run or Standby modes.
(For detailed instructions, refer to the document
"Instructions for Use" part number 779393-EN)
