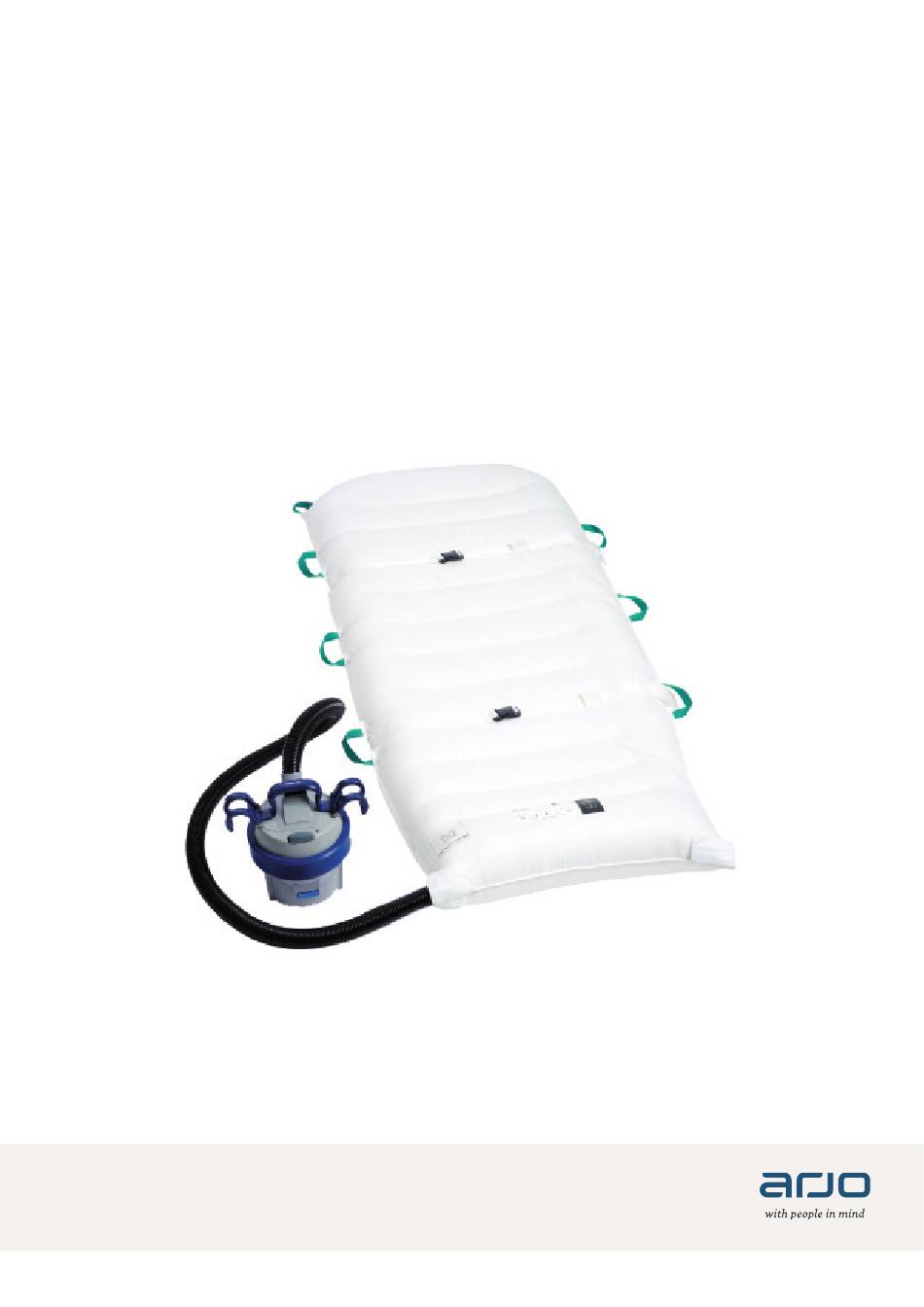

- Page 1 INSTRUCTIONS FOR USE Maxi Air 001-35001-EN Rev 7 • 12/2019...
- Page 2 Refer to the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.
-
Page 3: Table Of Contents
......................5 Parts Designation ........................6 Product Description/Functions ..................... 7 Correct Placement of the Patient ..................8 Correct Placement of the Maxi Air air supply ..............9 Transfer ..........................10 Disinfection Instructions ..................... 14 Care and Preventive Maintenance ..................16 Troubleshooting ........................ - Page 4 Intentionally left blank...
-
Page 5: Foreword
Foreword Thank you for purchasing Arjo Manufacturer Information equipment. This product was manufactured by: Your Maxi Air™ is a part of a series of quality ArjoHuntleigh AB products designed for patient transfers, Hans Michelsensgatan 10 especially for hospital and professional 211 20 Malmö... -
Page 6: Intended Use

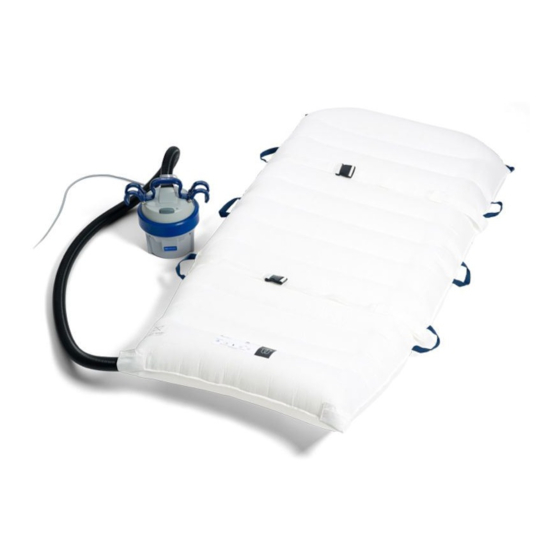

Preventive Maintenance” found in this IFU. The System The expected lifetime of the Maxi Air mattress, The Maxi Air (air supply and mattress) is an air is twenty (20) transfers. assisted lateral patient transfer system for use in lateral transfers and repositioning. -
Page 7: Safety Instructions
Maxi Air in an environment where the temperature is below 32 °C (90 °F). Temperatures above 32 °C (90 °F) can cause the Maxi Air mattress surface to reach a temperature higher than 44 °C (111 °F). If a serious incident occurs in relation to this... -
Page 8: Preparations
2) Check that all parts are supplied. Compare with section Parts Designation in this IFU. If Check that all parts of the Maxi Air is in place. any part is missing or damaged - do NOT Compare with the section Parts Designation in use the product! this IFU. - Page 9 Maxi Air air supply Dimensions: 12,5 x 7 x 7”(317,5 x 178 x 178 mm) Weight: 11 lb (5 kg) Material: ABS Plastic Air Hose Lengths: 78” (1980 mm), 300” (7620 mm) Optional Power Cord Length: 180” (4570 mm) Maxi Air mattress Widths: L 34”...
-
Page 10: Parts Designation
Parts Designation Parts Designation Maxi Air air supply Maxi Air mattress 1) Carrying handle 14) Connection points 2) Attachment hooks 15) Hook and loop strap 3) Socket inlet 16) Snap lock button 4) Push button (On/Off) 17) Safety belts 5) LED mains power indicator... -
Page 11: Product Description/Functions
“Fig. 3”. Fig. 1 Operation and controls 1) Plug in the power cord from the Maxi Air air supply to an electrical outlet. 2) The LED will light up to indicate that the mains is turned on. -
Page 12: Correct Placement Of The Patient
Maxi Air mattress can tip over during the transfer. Placement of the patient • The patient safe working load (SWL) of the Maxi Air mattress is 1200 lb / 544 kg. When using allowed mattresses other than Maxi Air mattress, observe. -
Page 13: Correct Placement Of The Maxi Air Air Supply
Correct Placement of the Maxi Air Maxi Air air supply air supply WARNING Before every transfer, always make sure the Maxi Air air supply is: • Secured from movement and from falling. • Not in the way of the electrical outlet in use. •... -
Page 14: Transfer
Fig. 9 Position one caregiver on each side of the patient, see “Fig. 9”. 3) Place the Maxi Air mattress with the labels upwards, underneath the patient. Follow local routines. 4) Make sure the patient is correctly placed on the Maxi Air mattress. - Page 15 8) Hang the Maxi Air air supply on the receiving surface. 9) Plug the power cord into an electrical outlet.
- Page 16 Sending side: feel underneath the Maxi Air mattress to make sure that the patient can’t be felt through it, see “Fig. 12” Fig. 12 If any part of the patient can be felt, the...
- Page 17 Receiving side: make sure the Maxi Air mattress is centred, see “Fig. 16”. Fig. 15 14) Sending side: turn off the Maxi Air air supply and detach the hose from the Maxi Air mattress. Receiving side until the Maxi Air mattress is completely “Fig.
-
Page 18: Disinfection Instructions
Disinfection Instructions Disinfection Instructions CAUTION WARNING Do not lower down the Maxi Air air supply in Do NOT wash the Maxi Air mattress! The disinfectant solution. This could damage the Maxi Air electrical components and cause internal and is not intended for use between patients. - Page 19 Step 2 - Cleaning brush or a cloth if need for cleaning (to remove any deposits). 2) Use a new wet cloth to wipe off all traces of water and wipe with a clean cloth. The cloth should occasionally be rinsed in running 3) Roll up the air hose and lower it down into 4) Rinse the air hose with water (approx.
-
Page 20: Care And Preventive Maintenance
Care and Preventive Maintenance Care and Preventive Maintenance The Maxi Air system is subject to wear and tear, and the following actions must be performed to WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule. - Page 21 CTION HECK Perform functionality test NOTE Every Year : Maxi Air air supply has to be serviced according to the section “Care and Preventive Maintenance” Check and Change the Air Filter 1) Fold in the attachment hooks (A). Fig. 18 2) Pull up the rubber bumper (B).
- Page 22 Maxi Air has been changed. 6) Attach the cover (C) and the rubber ring (B). If the product does not work as intended, immediately contact your local Arjo representative for support. Fig. 20 Care and Preventive Maintenance...
-
Page 23: Troubleshooting
Troubleshooting PROBLEM ACTION • Check power supply. • Check power cord connections on the Maxi Air air supply and the electrical outlet. Low pressure in the Maxi Air mattress. • Check air hose connections between the Maxi Air air supply and the Maxi Air mattress. - Page 24 Technical Data IR AIR SUPPLY Weight 11 lb (5 kg) Expected life 5 years Protection class Not protected against ingress of water Environment pollution 2 maximum degree for use Operating force: Push button 30.0 N Maximum duty cycle For continuous use Sound Level 74 dBA MR unsafe 120 VAC, 60 Hz, 1100 W (North America)
- Page 25 Glide™ Launderable mattress MAS014102-99 Large size 3062-500-032* Glide™ Launderable mattress MAS016102-99 Bariatric size 3062-500-046* No other combinations are allowed. *Note: May not be available in all markets. Please check with your Arjo representative for availability. Air Supply RODUCTS RODUCT ANUFACTURER ATTRESS OMPATIBILITY Glide™...
- Page 26 Environmental Conditions PERATING Temperature +10 °C to + 32 °C (+50 to +90 °F) Humidity 10-70% at +20 °C (+68 °F) Atmospheric pressure 700 hPa to 1060 hPa RANSPORT AND TORAGE IR AIR SUPPLY Temperature -40 °C to +80 °C (-40 °F to +176 °F) Humidity 10-70% at +20 °C (+68 °F) Atmospheric pressure...
-
Page 27: Labels On Maxi Air Mattress
LOT number The name and address of the manufacturer. MR-Safe Manufacturing date The shelf life (2 years) of the Maxi Air mattress starts from the manufacturing date LATEX Not made with natural rubber latex. on the LOT label on the outer package. -
Page 28: Labels On Maxi Air Air Supply
Model: 184445 MAS000001-US 120 V~60Hz 1100 W Class I Maxi Air Model: 2018-11-20 184445 MAS000001-EU MAS000001-US Maxi Air XXXXXXXXX 230 V~50Hz 1200 W (01)0505XXXXXXXXXX (11)181120 (21)XXXXXXXXX Date Label 230V Corporate Logo For example only Labels on Maxi Air air supply... -
Page 29: Approvals And List Of Standards
3) Turn the screws (A) to a locked (A2) position. Approvals and List of Standards Approvals and List of Standards The Maxi Air is compliant to IEC 60601-1 series, including applicable collateral standards and national deviations. Approvals and List of Standards... -
Page 30: Electromagnetic Compatibility
It may be necessary to take action, such as reorienting, relocating the equipment or shielding the location. WARNING Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm to any part of the Maxi Air, equipment could result. Electromagnetic Compatibility... - Page 31 Electromagnetic Emissions - For all Equipment and Systems The Maxi Air is intended for use in the electromagnetic environment indicated below. The customer or the user of the Maxi Air should assure that it is used in such an environment. Emissions test...
- Page 32 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems The Maxi Air the user of the Maxi Air should assure that it is used in such an environment. IEC 60601 test Electromagnetic environment - Immunity test...
- Page 33 (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems Electromagnetic Immunity test IEC 60601 test level Compliance level environment - guidance 3 V outside ISM bands 3 V outside ISM bands between 0.15-80 MHz between 0.15-80 MHz Conducted RF 6 V inside ISM and 6 V inside ISM and...
-
Page 34: Parts And Accessories
6364346 - Europe 6364347 - India 6364348 - South Africa 6364349 - United Kingdom For disinfectant, contact your local representative. Air Filter 6305180 Handle Kit 700-32101 Maxi Air Mattress Maxi Air Cart MAS014000 MCA0003 MAS015000 (XL) MAS016000 (XXL) Parts and Accessories... - Page 35 JAPAN...
- Page 36 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
