OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637397 for air section repair (see page 6).
637401-XX for fluid section repair (see page 4). NOTE: This kit also con-
tains several air motor seals which will need to be replaced.
637390-3 major air valve assembly (see page 7).
PUMP DATA
Models
. . . . . . . . . . . . .
Pump Type
. . . . . . . . . .
Material
. . . . . . . . . . . . .
Weight
. . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure
. . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig
Maximum Particle Size
. . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM
. . . . . . . . . . .
Hytrel
. . . . . . . . . . . . . . . .
Nitrile
. . . . . . . . . . . . . . . . .
Santoprene
. . . . . . . . . . .
PTFE
. . . . . . . . . . . . . . . . .
Viton
. . . . . . . . . . . . . . . .
Dimensional Data
. . . . . . . . . . . . . . . .
Mounting Dimension
. . . .
Noise Level @ 70 psig, 60 cpm
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (LA
) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
eq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
see Model Description Chart for "-XXX".
Metallic Air Operated Double Diaphragm
see Model Description Chart.
25.7 lbs (11.7 kgs)
. . . . . . . . .
120 psig (8.3 bar)
. . . . .
10 psig (0.69 bar)
120 psig (8.3 bar)
. . . .
60.0 gpm (227.1 lpm)
. . . . .
0.234 gal. (0.89 lit.)
1/8" dia. (3.3 mm)
-60 to 280 F (-51 to 138 C)
-20 to 180 F (-29 to 82 C)
10 to 180 F (-12 to 82 C)
-40 to 225 F (-40 to 107 C)
40 to 225 F (4 to 107 C)
-40 to 350 F (-40 to 177 C)
see page 8
5.9375" x 8.75" (150.8 mm x 222.3 mm)
. . . . . . .
80.6 dB(A)
© 2016
CCN 15207962
PW10A-X- -X

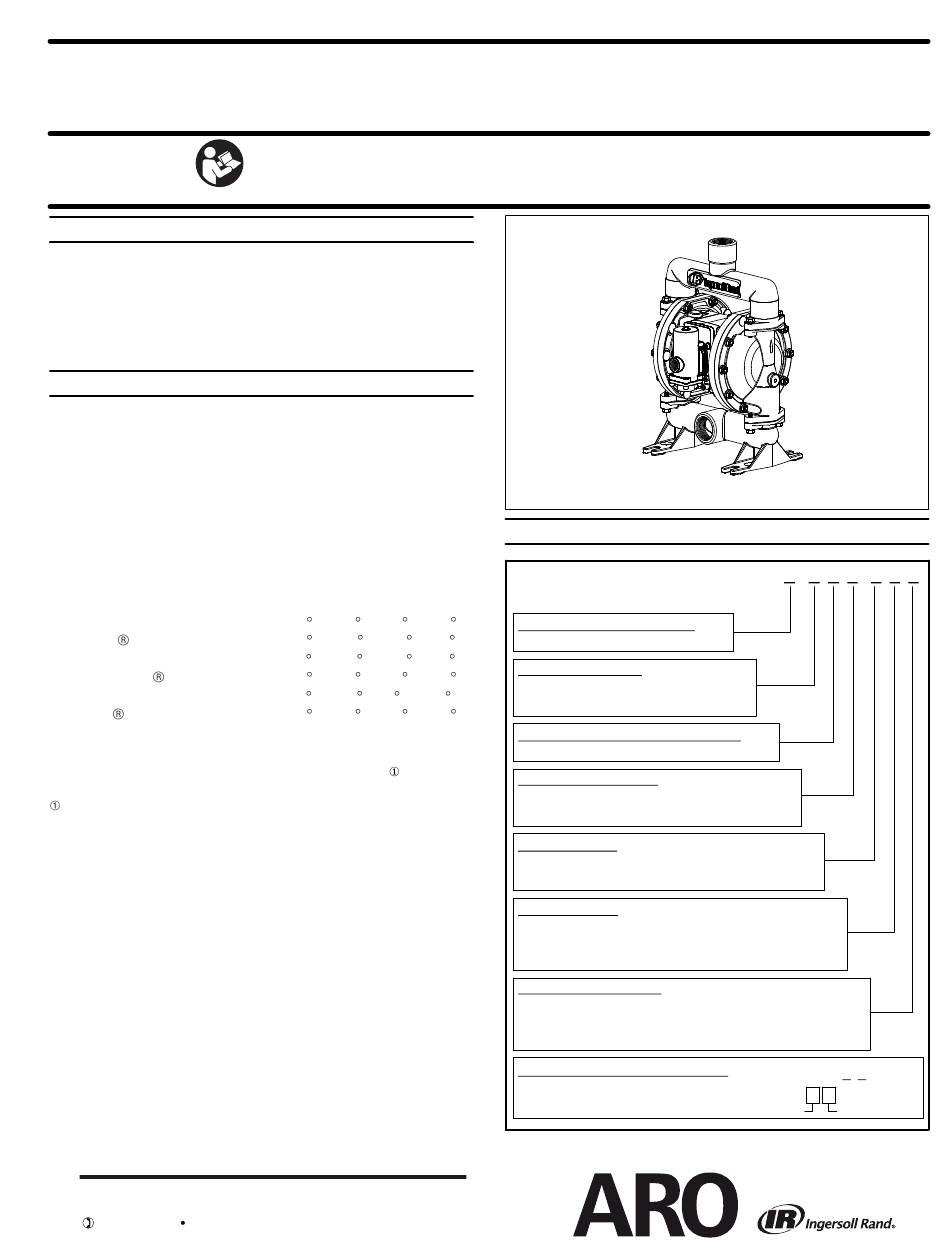

Figure 1
MODEL DESCRIPTION CHART
CENTER SECTION MATERIAL
A - Aluminum
FLUID CONNECTION
A - Inlet
- 1-1/2 -- 11-1/2 NPTF - 1
Outlet - 1-1/4 -- 11-1/2 NPTF - 1
FLUID CAPS & MANIFOLD MATERIAL
A - Aluminum
HARDWARE MATERIAL
P - Plated Steel
S - Stainless Steel
SEAT MATERIAL
A - Santoprene
F - Aluminum
C - Hytrel
G - Nitrile
BALL MATERIAL
A - Santoprene
T - PTFE
C - Hytrel
V - Viton
G - Nitrile
DIAPHRAGM MATERIAL
L - Long Life PTFE
A - Santoprene
C - Hytrel
T - PTFE / Santoprene
G - Nitrile
V - Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PW10A-AAP-AAA
FLUID SECTION SERVICE KIT # 637401-AA
RELEASED:
3-11-04
7-15-16
REVISED:
(REV. H)
PW10 A - A A X - X X X
PW10A - AAX - X X X
637401 - X X
Ball
Diaphragm
