Kramer Electronics, Ltd.

USER MANUAL

Model:
VS-41H
4x1 HDMI Switcher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-41H and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer VS-41H

  • Page 1: User Manual

    Kramer Electronics, Ltd. USER MANUAL Model: VS-41H 4x1 HDMI Switcher...
  • Page 2: Table Of Contents

    Technical Specifications Kramer Protocol 2000 Figures Figure 1: VS-41H 4x1 HDMI Switcher Figure 2: Connecting a VS-41H 4x1 HDMI Switcher Figure 3: Local Area Connection Properties Window Figure 4: Internet Protocol (TCP/IP) Properties Window Tables Table 1: VS-41H 4x1 HDMI Switcher Features...
  • Page 3: Introduction

    Thank you for purchasing your Kramer VS-41H 4x1 HDMI Switcher. Note, that the Kramer VS-41H is identical to the VS-41HDMI; just the name has changed replacing the suffix “HDMI” by “H” (according to the HDMI Guideline).
  • Page 4: Quick Start

    Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 5: Overview

    ) is a data-structure, provided by a display, to describe its capabilities to an HDMI source. The EDID enables the VS-41H to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data.
  • Page 6: About Hdmi

    High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI: •...
  • Page 7: About Hdcp

    Kramer VS-41H away from moisture, excessive sunlight and dust Your VS-41H 4x1 Switcher Figure 1 Table 1 define the VS-41H. 1 Developed by Intel 2 Available from Kramer Electronics on our Web site at http://www kramerelectronics com...

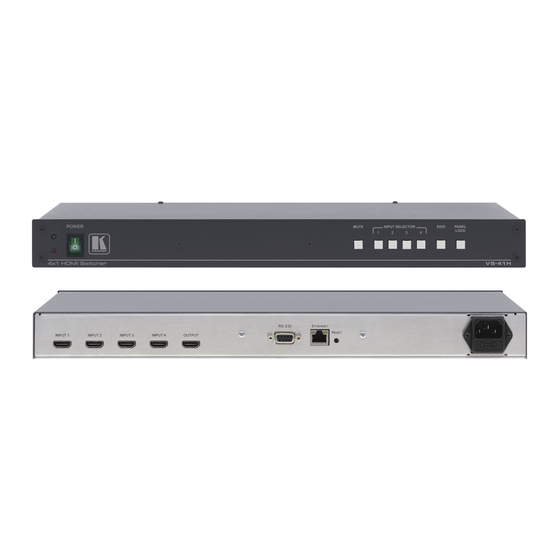

  • Page 8: Figure 1: Vs-41H 4X1 Hdmi Switcher

    Your VS-41H 4x1 Switcher Figure 1: VS-41H 4x1 HDMI Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 9: Table 1: Vs-41H 4X1 Hdmi Switcher Features

    Your VS-41H 4x1 Switcher Table 1: VS-41H 4x1 HDMI Switcher Features Feature Function IR Receiver The LED lights when receiving signals from the Infrared remote control transmitter POWER Switch Illuminated switch for turning the unit ON or OFF MUTE Button...
  • Page 10: Installing The Vs-41H In A Rack

    Installing the VS-41H in a Rack Installing the VS-41H in a Rack This section provides instructions for rack mounting the unit. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 11: Connecting A Vs-41H 4X1 Hdmi Switcher

    Press an INPUT SELECTOR button (from 1 to 4) to choose which HDMI input to route to the output. 1 Switch OFF the power on each device before connecting it to your VS-41H After connecting your VS-41H, switch on its power and then switch on the power on each device...
  • Page 12: Figure 2: Connecting A Vs-41H 4X1 Hdmi Switcher

    Connecting a VS-41H 4x1 HDMI Switcher Figure 2: Connecting a VS-41H 4x1 HDMI Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY...
  • Page 13: Operating The Vs-41H

    The LOCK button blinks. If an input button illuminates, this indicates that that input is set to the DVD mode. 1 The default 2 For example, the Kramer HDMI-DVI Gold Plated Cable in various lengths (3”, 6”, 10” and 15”)
  • Page 14: Setting The Edid

    Operating the VS-41H If an input button is not illuminated, this indicates that that input is set to the PC mode. 4. Toggle between the PC mode (input button not illuminated) and the DVD mode (input button illuminated) by pressing that input.
  • Page 15: Connecting A Pc

    7.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) You can connect the Ethernet port of the VS-41H to the Ethernet port on your PC, via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory default...
  • Page 16: Connecting The Ethernet Port Via A Network Hub (Straight-Through Cable)

    7.4.2 Connecting the ETHERNET Port via a Network Hub (Straight- Through Cable) You can connect the Ethernet port of the VS-41H to the Ethernet port on a network hub or network router, via a straight through cable with RJ-45 connectors.
  • Page 17: 7.4.3 Control Configuration Via The Ethernet Port

    Power cord, rack “ears” and IR remote control OPTIONS: Kramer HDMI cables 1 Specifications are subject to change without notice 2 For best results, use Kramer cables such as the C-HM/HM series, the C-HM/DM series and/or our HDMI over fiber optics C-FOHM/FOHM series...
  • Page 18: Kramer Protocol 2000

    Kramer Protocol 2000 Kramer Protocol 2000 The VS-41H is compatible with Kramer’s Protocol 2000 (version 0.50) (below). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit.
  • Page 19: Table 5: Instruction Codes For Protocol 2000

    Kramer Protocol 2000 For a single machine controlled via the serial port, always set M4 M0 = 1, and make sure that the machine itself is configured as MACHINE NUMBER = 1 Table 5: Instruction Codes for Protocol 2000 Note: All values in the table are decimal, unless otherwise stated...
  • Page 20 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 21 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
