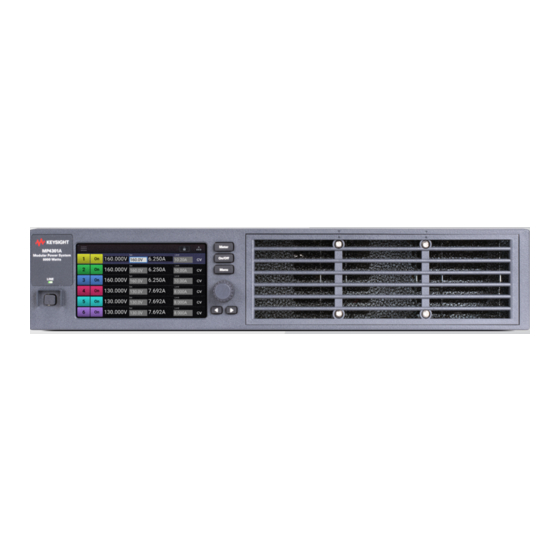

MP4300 Series Modular Power System
MP4301A, MP4302A Mainframes
MP4361A, MP4362A SAS Power Modules
OPERATING AND SERVICE GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP4300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight MP4300 Series

Summary of Contents for Keysight MP4300 Series

  • Page 1 MP4300 Series Modular Power System MP4301A, MP4302A Mainframes MP4361A, MP4362A SAS Power Modules OPERATING AND SERVICE GUIDE...

  • Page 3: Table Of Contents

    AC Mains Connections AC Mains Considerations Power Cable Connections Output Connections Wiring Considerations Single Load Connections Multiple Load Connections Remote Sense Connections Paralleled Channel Connections Parallel Connections Interface Connections LAN Connections - site and private Keysight MP4300 Series Operating and Service Guide...
  • Page 4 Current Sinking Regenerative Operation Programming Output Protection Introduction Set the Over-Voltage Protection Making Measurements Average Measurements Programming the Digital Port Digital Control Port Bi-Directional Digital I/O Digital Input Fault Output Inhibit Input System-Related Operations Keysight MP4300 Series Operating and Service Guide...
  • Page 5 Operation Status Group Frame Status Group Status Byte Register Error and Output Queues Status Diagram Reset State (*RST) SCPI Error Messages E4360A Compatibility 6 Verification and Calibration Test Equipment and Setups Test Equipment Keysight MP4300 Series Operating and Service Guide...
  • Page 6 Accessing the Calibration Switch Switch Functions Battery Replacement Replacing the Battery Cleaning Cleaning the Outside Cleaning the Filter Disassembly Electrostatic Discharge (ESD) Precautions Tools Required Remove Maintenance Cover Access the Calibration Switches and the Battery Index Keysight MP4300 Series Operating and Service Guide...

  • Page 7: Legal And Safety Information

    No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Keysight Technologies as governed by United States and international copyright laws. Keysight Technologies...
  • Page 8 EULA shall apply, except to the extent that those terms, rights, or licenses are explicitly required from all providers of commercial computer software pursuant to the FAR and the DFARS and are set forth specifically in writing elsewhere in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software.

  • Page 9: Safety And Regulatory Symbols

    The RCM mark is a registered trademark of the Australian Communications and Media Authority. Indicates United Kingdom Conformity Assessed. Contains one or more of the 6 hazardous substances above the maximum concentration value (MCV), 40 Year EPUP. Keysight MP4300 Series Operating and Service Guide...

  • Page 10: Safety Notices

    Failure to comply with these precautions or with specific warnings or instructions elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Keysight Technologies assumes no liability of the customer’s failure to comply with the requirements.
  • Page 11 Do Not Modify the Instrument Do not install substitute parts or perform any unauthorized modification to the product. Return the product to a Keysight Sales and Service Office for service and repair to ensure that safety features are maintained. Readings and State Reported by the Browser Web Control Page.
  • Page 12 Do not attempt to clean internally. In Case of Damage Instruments that are not functioning correctly, appear damaged or defective should be made inoperative and secured against unintended operation until they can be repaired by qualified service personnel. Keysight MP4300 Series Operating and Service Guide...

  • Page 13: Quick Reference

                                                    Keysight MP4300 Series Operating and Service Guide Quick Reference Legal and Safety Information Introduction to the Instrument Front Panel Reference Command Quick Reference Model Features and Options Specifications and Characteristics This document includes user, service, and programming information for the Keysight Regenerative Modular Power System (MPS) family.

  • Page 14: Introduction To The Instrument

    Front Panel Keys at a Glance Modular Power System at a Glance The Keysight Modular Power System (MPS) series include 2U rack-mountable mainframe with user- installable power modules with performance and features that are optimized for automated test systems. The output and system features are described as follows. The...

  • Page 15: Front Panel At A Glance

    4. Rotary knob- Scrolls through the display selections. Push to make a selection. 5. Navigation keys - Move horizontally across the selections on the display. 6. Air inlets - Do not block front panel air inlets. Keysight MP4300 Series Operating and Service Guide...

  • Page 16: Rear Panel At A Glance

    8. Module connectors - Includes sense and output connections for each power module. Up to six single slot modules can be installed in an MPS mainframe. 9. Lockout bar - Must be installed to operate power modules. Keysight MP4300 Series Operating and Service Guide...

  • Page 17: Front Panel Display At A Glance

    Accesses the front panel menu. Same as the Menu key. Locks or unlocks the front panel display. Displays the LAN address and hostname. This information is also available under Menu + System\ IO\ LAN. Keysight MP4300 Series Operating and Service Guide...
  • Page 18 The status area on the right side of the channel information indicates the status of the channel. Touch the status area for a brief description of the status. Refer to Using the Front Panel for more information. Keysight MP4300 Series Operating and Service Guide...

  • Page 19: Front Panel Keys At A Glance

    Pushing the knob again will choose the option from the list. Arrow keys let you navigate around the display in the same manner as the Rotary knob. Keysight MP4300 Series Operating and Service Guide...

  • Page 20: Front Panel Menu Reference

    Specifies the power-on state (either Reset or State 0) Help Back Back to previous level Error Queue Displays the error messages Reading the messages deletes them About Instrument Displays Mainframe serial number and firmware version Displays power module information Keysight MP4300 Series Operating and Service Guide...

  • Page 21: Command Quick Reference

    Returns the averaged measurement.             :VOLTage [:DC]? (@<chanlist>) Returns the averaged measurement. HCOPy       :SDUMp            :DATA? [JPG|PNG] Returns an image of the front panel display.            :DATA                  :FORMat JPG|PNG Specifies the format for front panel images returned. Keysight MP4300 Series Operating and Service Guide...
  • Page 22 Turns the front panel LXI identify indicator on or off.       :MDNS [:STATe] 0|OFF|1|ON Sets the MDNS state MEASure [:SCALar]             :CURRent [:DC]? (@<chanlist>) Takes a measurement; returns the averaged current.             :VOLTage [:DC]? (@<chanlist>) Takes a measurement; returns the averaged voltage. Keysight MP4300 Series Operating and Service Guide...
  • Page 23 Resets the latched protection.             :COUPle 0|OFF|1|ON Enables or disables channel coupling for protection faults.             :OT :AMBient:MARGin? Returns the difference between over-temp and ambient temp.                   :TUNNel:MARGin? (@<chanlist>) Returns the difference between heatsink over-temp and temp. Keysight MP4300 Series Operating and Service Guide...
  • Page 24                  :DATA? Reads the state of the digital control port.             :OUTPut                  :DATA <value> Sets the state of the digital control port.             :PIN<1-7>                  :FUNCtion <function> Sets pin function. DIO|DINPut|FAULt|INHibit|ONCouple|OFFCouple                  :POLarity POSitive|NEGative Sets the pin polarity. Keysight MP4300 Series Operating and Service Guide...
  • Page 25 Specifies the voltage scale in SAS mode.                   :VMP <value> Sets the voltage at the Vmp point of the curve in SAS mode.                   :VOC <value> Sets the Voc voltage of the curve in SAS mode. Keysight MP4300 Series Operating and Service Guide...
  • Page 26 Queries the questionable condition register.             :ENABle <value>, (@<chanlist>) Sets the questionable enable register.             :NTRansiton <value>, (@<chanlist>) Sets the Negative transition filter.             :PTRansiton <value>, (@<chanlist>) Sets the Positive transition filter.       :UNR             :CONDition? (@<chanlist>) Queries the UNR condition register. Keysight MP4300 Series Operating and Service Guide...
  • Page 27 Reads and clears one error from the error queue.       :REBoot Reboots the instrument to its power-on state.       :TIME <hh>, <mm>, <ss> Sets the time of the system clock.       :VERSion? Returns the SCPI version that the instrument complies with. Keysight MP4300 Series Operating and Service Guide...

  • Page 28: Model Features And Options

    Filler module kit (contains 5 filler modules for installing in unused slots) Keysight 1CP104A Rack mount kit with handles - for use with MP4301A and MP4302A Keysight RP7908A Rack rails for Keysight racks or similar designs Keysight MP4300 Series Operating and Service Guide...

  • Page 29: Specifications And Characteristics

    1 From 20 Hz to 20 MHz with 10 ohms in parallel with ≥100nF, or either terminal grounded 2 From 20 Hz to 10 MHz with 10 ohms in parallel with ≥100nF, terminals ungrounded, or either terminal grounded 3 @ 23°C ±5°C ≥ Keysight MP4300 Series Operating and Service Guide...
  • Page 30 4 From 20 Hz to 20 MHz with 10 ohms in parallel with ≥100nF, or either terminal grounded 5 Change in output voltage or current for any load change within ratings 6 Change in output voltage or current for any line voltage change within ratings Keysight MP4300 Series Operating and Service Guide...

  • Page 31: Power Module Output Quadrants

    Acoustic statement Acoustic noise emission (European Machinery Directive) LpA <70 dB at Operator position: LpA <70 dB at Bystander position LpA <55 dB at Idle fan speed Normal operation mode per ISO 7779 Keysight MP4300 Series Operating and Service Guide...
  • Page 32 No output terminal may be more than ±240 VDC from any other terminal or chassis ground. Typical Weight MPS mainframe: 42.4 lbs (19.3 kg) Power module: 3.8 lbs (1.7 kg) Fully loaded mainframe: 65.2 lbs (29.5 kg) Dimensions Outline Diagram for details Keysight MP4300 Series Operating and Service Guide...

  • Page 33: Outline Diagram

    1 Quick Reference Outline Diagram All dimensions are in millimeters. Keysight MP4300 Series Operating and Service Guide...

  • Page 35: Installing The Instrument

                                                    Keysight MP4300 Series Operating and Service Guide Installing the Instrument Before Installation or Use Installing the Mainframe AC Mains Connections Output Connections Multiple Channel Connections Interface Connections Heavy Weight Danger to hands and feet. To avoid personal injury and damage to the instrument, always use a sturdy cart or other suitable device to move the instrument.

  • Page 36: Before Installation Or Use

    /find/assist). Save the shipping carton and packing materials in case the unit has to be returned. Check for Items Supplied Before getting started, check the following list and verify that you have received these items. If anything is missing, please contact your nearest Keysight Sales and Support Office. Supplied Items Description...

  • Page 37: Observe Environmental Conditions

    Stacking Instruments Never stack more then three mainframes in a free-standing installation. Rack Mounting Accessories Keysight MP4300 MPS mainframes can be mounted in a 19-inch EIA rack cabinet. They are designed to fit in two rack-units (2U) of space. Accessory...

  • Page 38: Installing The Mainframe

    The lockout bar ensures that the power modules are not inserted or removed while the internal high voltage rail is active. Without the lockout bar, the module cannot be powered-on. The front panel will indicate "No Module Installed". Keysight MP4300 Series Operating and Service Guide...
  • Page 39 Lastly, tighten the module thumbscrews all the way, thus clamping the metal tabs to the lockout bar. To remove a module, follow the above steps in reverse. Replacement installation parts can be ordered from Keysight Technologies using the following part numbers: Part Number...

  • Page 40: Bench Installation

    Four self-adhesive feet are shipped with the mainframe. If desired, install the feet on the bottom of the chassis - one on each corner. Do not install the feet on the front frame. Keysight MP4300 Series Operating and Service Guide...

  • Page 41: Ac Mains Connections

    Power Cable Connections AC Mains Considerations Keysight MPS systems have a fully bi-directional three-phase ac input converter, which allows for seamless bi-directional power flow between the ac mains and dc output terminals. In a standard power supply, energy only flows from the ac to the dc output terminals. In a regenerative...
  • Page 42 A Wye-type or Delta-type ac mains distribution is required, provided the correct line-to-line voltage is applied. An earth-ground to the PE-ground connection through a separate conductor is also required. Delta- type Wye-type Keysight MP4300 Series Operating and Service Guide...
  • Page 43 Torque the M5 combination nut to 20 in-lbs. Attach the safety cover to the unit using the three T10 screws provided. Torque the cover screws to 9 in-lbs. Tighten the strain relief. Keysight MP4300 Series Operating and Service Guide...

  • Page 44: Output Connections

    The only time the sense jumpers should be disconnected from the output is when remote sensing. Keysight recommends 22 AWG wire used for sense jumpers as well as for remote sensing. Ferrules are recommended for all wiring, especially when using stranded wires (see Items Supplied).
  • Page 45 4. Because of wire inductance considerations, it is also recommended that you keep your load leads twisted, tie wrapped, or bundled together and less than 50 feet (14.7 meters) in length per lead. 5. Wire ferrules are included with this product for AWG 12 and 4 mm 2 stranded wires. Keysight MP4300 Series Operating and Service Guide...

  • Page 46: Single Load Connections

    Disconnect the connector plug to make your wire connections. The 4-pin output connector accepts wires sizes from AWG 8 to AWG 24. Wire sizes smaller than AWG 20 are not recommended. Keysight recommends either using solid wires, or attaching ferrules to the end of stranded wires.

  • Page 47: Multiple Load Connections

    Remote voltage sensing may be recommended when using remote distribution terminals. Sense either at the remote distribution terminals or, if one load is more sensitive than the others, directly at the critical load. Keysight MP4300 Series Operating and Service Guide...

  • Page 48: Remote Sense Connections

    (see following table). protect The formula assumes that the voltage drop in the +/- load leads are equal. Keysight MP4300 Series Operating and Service Guide...
  • Page 49 If it is desirable to keep voltage transient levels to a minimum, place an aluminum or tantalum capacitor, with an approximate value of 10 µF per foot (30.5 cm) of load lead, right across the load. Keysight MP4300 Series Operating and Service Guide...

  • Page 50: Paralleled Channel Connections

    Specifications for outputs operating in parallel can be obtained from the specifications for single outputs. Most specifications are expressed as a constant or as a percentage (or ppm) plus a constant. For parallel operation, the percentage portion remains unchanged while constant portions or any Keysight MP4300 Series Operating and Service Guide...
  • Page 51 Voltage: All parallel specifications referring to voltage are the same as for a single output except for CV load effect, CV load cross regulation, CV source effect, and CV short term drift. These are all twice the voltage programming accuracy (including the percentage portion) at all operating points. Keysight MP4300 Series Operating and Service Guide...

  • Page 52: Interface Connections

    Remote Interface Configuration. If you have not already done so, install the latest Keysight IO Libraries Suite from www.keysight.com. For detailed information about interface connections, refer to the Keysight Technologies USB/LAN/GPIB Interfaces Connectivity Guide, included with the Keysight IO Libraries Suite.

  • Page 53: Usb Connections

    169.254.nnn. The front panel LAN indicator will come on when the LAN port has been configured. 2. Use the Connection Expert utility of the Keysight IO Libraries Suite to add the instrument and verify a connection. To add the instrument, you can request the Connection Expert to discover the instru- ment.
  • Page 54 Option GPB. 1. Connect your instrument to the GPIB interface card using a GPIB interface cable. 2. Use the Connection Expert utility of the Keysight IO Libraries Suite to configure the GPIB card’s parameters. 3. You can now use Interactive IO within the Connection Expert to communicate with your instru- ment, or you can program your instrument using the various programming environments.

  • Page 55: Getting Started

                                                    Keysight MP4300 Series Operating and Service Guide Getting Started Using the Front Panel Remote Interface Configuration...

  • Page 56: Using The Front Panel

    If a self-test error occurs, the self test error will be noted in the Error queue. Refer to Service and Maintenance for instructions on returning the instrument for service. Keysight MP4300 Series Operating and Service Guide...

  • Page 57: Set The Output Voltage

    Cancel cancels everything and exits the dialog. Method 3 Touch Channel to display the channel details. Fixed Mode and Voltage Priority is assumed. Touch Channel 1's Set field. Repeat Method 1 or Method 2 to enter a value. Keysight MP4300 Series Operating and Service Guide...

  • Page 58: Set The Output Current

    Use the numeric keypad to enter a value. Back backs up one digit. Clear clears the entry. EEX adds an exponent to the value. Enter enters the value. Cancel cancels everything and exits the dialog. Keysight MP4300 Series Operating and Service Guide...

  • Page 59: Set The Output Mode And Priority

    In current priority mode, the unit will maintain the output current at its programmed setting. The unit will limit the output voltage when it reaches the specified voltage limit value. Refer to Set the Output Mode for more information. Keysight MP4300 Series Operating and Service Guide...

  • Page 60: Enable The Output

    No more errors are stored until you remove errors from the queue. If there are no errors, the instrument responds with +0,"No error". Except for selftest errors, errors are cleared when exiting the Error Log menu by touching OK. or when cycling power. Keysight MP4300 Series Operating and Service Guide...

  • Page 61: Remote Interface Configuration

    Introduction This instrument supports three remote interfaces: LAN, USB, and optional GPIB. To use the interfaces, you must first install the latest Keysight IO Libraries Suite from www.keysight.com. Then connect your instrument to your PC. This instrument provides Ethernet connection monitoring. With Ethernet connection monitoring, the instrument’s LAN port is continually monitored, and automatically reconfigured when the instrument is...

  • Page 62: Modifying The Lan Settings

    Subnet Mask - This value is used to enable the instrument to determine if a client IP address is on the same local subnet. The same numbering notation applies as for the IP address. When a client IP address is on a different subnet, all packets must be sent to the Default Gateway. Keysight MP4300 Series Operating and Service Guide...

  • Page 63: Gpib/Usb Configuration

    5. Your computer’s GPIB interface card address must not conflict with any instrument on the GPIB interface bus. This setting is non-volatile; it will not be changed by power cycling or *RST. Keysight MP4300 Series Operating and Service Guide...

  • Page 64: Using The Web Interface

    4. Click on Use Instrument IO to send SCPI commands to the instrument. You an also select from Use RDP to launch a remote desktop session, or Use VNC to launch a remote display session. Selecting Use Tablet Optimized lets you access the GUI on most mobile devices Keysight MP4300 Series Operating and Service Guide...
  • Page 65 3 Getting Started 5. You need to enter a password to continue. As shipped, the default password is Keysight. To set a different password, click on the Settings (gear) icon. 6. Enter the SCPI command in the Command field and click the Execute button. The command and response will display in the Response History area.
  • Page 66 The Advanced options button accesses the reset network configuration option. You will need to reboot your instrument after you have changed the LAN configuration For additional help about any of the pages, click on the ? button. Keysight MP4300 Series Operating and Service Guide...

  • Page 67: Using Telnet

    Type the SCPI commands at the prompt. Using Sockets Keysight instruments have standardized on using port 5025 for SCPI socket services. A data socket on this port can be used to send and receive ASCII/SCPI commands, queries, and query responses. All commands must be terminated with a newline for the message to be parsed.

  • Page 69: Using The Modular Power System

                                                    Keysight MP4300 Series Operating and Service Guide Using the Modular Power System Fixed Mode Operation SAS Operation Current Sinking Operation Programming Output Protection Making Measurements Programming the Digital Port System-Related Operations...

  • Page 70: Fixed Mode Operation

    - either Voltage priority or Current priority. Refer Output Quadrants for details. Curve mode - selects solar array simulator operation in which an exponential model is used to approximate the I-V curve. Refer to Programming a Curve for details. Keysight MP4300 Series Operating and Service Guide...

  • Page 71: Set The Output Priority Mode

    Touch the Set field to display the Numeric Entry dialog for the voltage setting. Enter a value and press Enter. In voltage priority mode, you can specify a positive and negative current limit, which limits the output current at the specified value. Keysight MP4300 Series Operating and Service Guide...

  • Page 72: Set The Output Current

    During a 1-cycle ac line dropout the unit may reboot. The output remains off after reboot until the previous settings are reinstated either by the front panel controls or using a computer program. This is consistent with safe operating procedures. Keysight MP4300 Series Operating and Service Guide...

  • Page 73: Priority Mode Tutorial

    4 Using the Modular Power System Priority Mode Tutorial Keysight MP4362A power modules have a fixed sinking current limit of 0.5 A. They also have a rectangular output characteristic. Refer to Output Quadrants for details. Voltage Priority In voltage priority mode, the output is controlled by a constant-voltage feedback loop, which maintains the output voltage at its programmed setting as long as the load current remains within the positive or negative current limit settings.
  • Page 74 A LIM+ (positive voltage limit) status is set to indicate that the voltage limit has been reached. This condition is annunciated by VL+ on the front panel. Keysight MP4300 Series Operating and Service Guide...
  • Page 75 OCF status bits will be set. In such a case, it is important to set the voltage limit properly in order prevent this protection shutdown. Keysight MP4300 Series Operating and Service Guide...

  • Page 76: Sas Operation

    Keysight MPS instruments operate as a solar array simulator when the SAS:MODE command specifies either Curve or Table mode. The two primary SAS applications for which the Keysight MP4361A and MP4362A power modules are designed for are: dc to dc converter devices, and shunt switching devices.

  • Page 77: Compensation Modes

    Not recommended for performance evaluation of DC/DC converter, MPPT, or shunt switching DUTs Will not provide stable operation with an active DC/DC converter in regulation mode. Recommended for initial verification of hardware configuration with a static load. Keysight MP4300 Series Operating and Service Guide...
  • Page 78 Not recommended Recommended Not recommended minimum of 20 μF external capacitance Performance testing of shunt switching DUTs Not recommended Not recommended Recommended Note that changing the curve compensation turns the channel's output off. Keysight MP4300 Series Operating and Service Guide...

  • Page 79: Programming A Curve

    Imp – the current at the maximum power point Isc – the short-circuit current Vmp - the voltage at the maximum power point Voc – the open-circuit voltage Specify Curve Operation You can specify Curve operation as follows: Keysight MP4300 Series Operating and Service Guide...
  • Page 80 To output the curve that was previously programmed: Front Panel Menu Reference SCPI Command With the correct channel selected, press the On/Off key. To run the curve on output 1: OUTP ON, (@1) Keysight MP4300 Series Operating and Service Guide...

  • Page 81: Programming A Table

    What this means is that the I-V curve is generated by connecting the points in the table by straight lines. The more points that you provide, the more accurate the curve will be when the points are connected. Keysight MP4300 Series Operating and Service Guide...
  • Page 82 Not available To select a table on output 1: CURR:TABL:NAME <"name">, (@1) Enable Table Mode To enable Table mode: Front Panel Reference SCPI Command Not available To specify Table mode: CURR:MODE TABL, (@1) Keysight MP4300 Series Operating and Service Guide...

  • Page 83: Reference Information

    The following SCPI commands are not supported in SAS mode: CALibrate:STATe Enable calibration mode CURRent[:LEVel] all CURR[:LEV] commands CURRent:LIMit all CURR:LIM commands FUNCtion CURR|VOLT Priority mode setting VOLTage[:LEVel] all VOLT[:LEV] commands VOLTage:LIMit all VOLT:LIM commands Keysight MP4300 Series Operating and Service Guide...
  • Page 84 Note 1 This model is described in the paper: Britton, Lunscher, and Tanju, "A 9 KW High-Performance Solar Array Simulator", Proceedings of the European Space Power Conference, August 1993 (ESA WPP-054, August 1993) Keysight MP4300 Series Operating and Service Guide...

  • Page 85: Current Sinking Operation

    This is the most commonly used application of the regenerative function of the unit, which is automatic and completely transparent to the user. The Keysight MP4361A power module can continuously sink up to 100% of its rated current. This two quadrant sourcing and sinking capability allows for seamless transitions between sourcing and sinking current without changing the power supply’s output characteristics or introducing any disruptive...

  • Page 86: Programming Output Protection

    Clear Output Protection Introduction Keysight MPS models have many protection functions. These functions disable the channel output to protect the device under test (DUT) as well as the channel. A front panel status indicator will turn on when a protection function has been set. Most protection functions are latching, which means that they must be cleared once they have been set.

  • Page 87: Set The Over-Voltage Protection

    Delay values can range from 10 microseconds to 65 milliseconds. SCPI Command To set the OVP level to 120 volts: VOLT:PROT 120, (@1) To enter a delay value of 10 ms: VOLT:PROT:DEL 0.01, (@1) Keysight MP4300 Series Operating and Service Guide...

  • Page 88: Making Measurements

    Press the [Meter] key again to display a single channel view. To return the other parameter from the simultaneous measurement: If dashes are displayed, the front panel measurement is FETC:VOLT? interrupted because a remote interface measurement is FETC:CURR? taking place. Keysight MP4300 Series Operating and Service Guide...

  • Page 89: Programming The Digital Port

    The polarity of the pins can also be configured. Pin 8 is the signal common for the digital I/O pins. Data is programmed according to the following bit assignments: Bit Weight 6 (MSB) 0 (LSB) Keysight MP4300 Series Operating and Service Guide...

  • Page 90: Digital Input

    DIGital:OUTPut:DATA. To configure the pins for digital input only: SCPI Command To select the pin function: DIG:PIN<1-7>:FUNC DINP To select the pin polarity: DIG:PIN<1-7>:POL POS To read the data on the pins: DIG:INP:DATA? Keysight MP4300 Series Operating and Service Guide...

  • Page 91: Fault Output

    OFF - The Inhibit input is ignored. To configure the Inhibit Input function: SCPI Command To select the Inhibit function: DIG:PIN3:FUNC INH To select the pin polarity: DIG:PIN3:POL POS To specify the Inhibit mode: OUTP:INH:MODE LATC OUTP:INH:MODE OFF Keysight MP4300 Series Operating and Service Guide...

  • Page 92: System-Related Operations

    Turn the rotary knob to select; press the knob to Save. To recall a state from location 1: *RCL 1 Select the Recall field and enter a location from 0 to 9. Turn the rotary knob to select; press the knob to Recall. Keysight MP4300 Series Operating and Service Guide...

  • Page 93: Password Protection

    If the message “Locked out by internal switch setting” or “Calibration is inhibited by switch setting” appears, the internal switch is set to prevent the password from being changed. Refer to Calibration Switches for more information. Keysight MP4300 Series Operating and Service Guide...

  • Page 95: Scpi Programming Reference

                                                    Keysight MP4300 Series Operating and Service Guide SCPI Programming Reference Related Software SCPI Introduction Commands by Subsystem Status Tutorial E4360A Compatibility...

  • Page 96: Related Software

    Web at www.keysight.com/find/connectivity. Web Interface The Keysight Grand Olympus provides a Web interface that is built into the instrument. You can use this interface over LAN for remote access and control of the instrument via a Web browser. See...

  • Page 97: Scpi Introduction

    Note that some [optional] commands have been included for clarity. OUTPut [:STATe] OFF|0|ON|1, (@<chanlist>)      :INHibit             :MODE OFF      :PROTection             :CLEar (@<chanlist>) Keywords Keywords, also referred to as headers, are instructions recognized by the instrument. Common commands are also keywords. Keysight MP4300 Series Operating and Service Guide...

  • Page 98: Queries

    This lets you send several subsystem commands within the same message string. For example, sending the following command string: OUTPut:STATe ON, (@<chanlist>);PROTection:CLEar (@<chanlist>);COUPle ON is the same as sending the following commands: Keysight MP4300 Series Operating and Service Guide...

  • Page 99: Syntax Conventions

    However, if you are combining several commands within the same message string as pre- viously described, you must include the optional commands to place the command parser at the correct level in the hierarchy. Keysight MP4300 Series Operating and Service Guide...

  • Page 100: Parameter Types

    IMMediate, EXTernal, or BUS). They may have a short form and a long form just like command keywords. You can use upper- or lower-case letters. Query responses will always return the short form in all upper-case letters. The following command requires a discrete parameter for the Function: Keysight MP4300 Series Operating and Service Guide...

  • Page 101: Device Clear

    If a measurement is in progress, it is aborted. The instrument returns to the trigger idle state. The instrument's input and output buffers are cleared. The instrument is prepared to accept a new command string. Keysight MP4300 Series Operating and Service Guide...

  • Page 102: Commands By Subsystem

    5 SCPI Programming Reference Commands by Subsystem CALibrate FETCh HCOPy IEEE-488 Common MEASure MEMory OUTPut [SOURce:] CURRent DIGital FUNCtion VOLTage STATus SYSTem Keysight MP4300 Series Operating and Service Guide...
  • Page 103 Enters the calibration value read by the external meter. You must first select a calibration level for the value being entered. Data values are expressed in base units - either volts or amperes Parameter Typical Return <value> the numeric value (none) Enter the calibration value 10.02: CAL:DATA 10.02 Keysight MP4300 Series Operating and Service Guide...
  • Page 104 To change the password: unsecure calibration memory with old code, then set the new code. If you forget your password, refer to Calibration Switches. This setting is non-volatile; it will not be changed by power cycling or *RST. Keysight MP4300 Series Operating and Service Guide...
  • Page 105 Calibrates the output voltage. The value entered selects the range that is being calibrated. Parameter Typical Return <value> the maximum voltage rating of the range (none) <channel> the channel to calibrate Calibrates the 160 V range: CAL:VOLT 160, (@1) Keysight MP4300 Series Operating and Service Guide...

  • Page 106: Current Subsystem

    DAC values of the next channel. Parameter Typical Return <chanlist> one or more channels <4.8,4.9,5.0,5.1,5.2,5.3, ...> Returns the DAC table settings on channel 2: CURR:DTAB? (@2) Keysight MP4300 Series Operating and Service Guide...
  • Page 107 DAC values of the next channel. Parameter Typical Return <"name"> the table name <4.8,4.9,5.0,5.1,5.2,5.3, ...> <chanlist> one or more channels Returns the DAC table on channel 2: CURR:DTAB:TABL? "table1", (@2) Keysight MP4300 Series Operating and Service Guide...
  • Page 108 Parameter Typical Return FIXed|SASimulator|TABLe *RST: FIXed FIX|SAS|TABL <chanlist> one or more channels Set channel 2 to operate in SAS mode: CURR:MODE SAS, (@2) Keysight MP4300 Series Operating and Service Guide...
  • Page 109 OCP bit is set. In SAS and Table modes this occurs when the output current exceeds the CURRent:PROTection:LEVel setting. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 <chanlist> one or more channels Enable the current protection state: CURR:PROT:STAT ON, (@2) Keysight MP4300 Series Operating and Service Guide...
  • Page 110 When programming an entirely new curve, it is best to send all parameters on the same program line. In this case, the instrument checks that all parameters are acceptable. The parameters can be sent in any order. Any parameter not programmed takes on the value of the previous curve. Keysight MP4300 Series Operating and Service Guide...
  • Page 111 If you send the command without specifying a table name, it de-selects the active table. This allows the MEMory:DELete:ALL command to delete all tables in both volatile and non-volatile memory. When operating in Table mode, an error is generated if this command is sent without a table name. Keysight MP4300 Series Operating and Service Guide...
  • Page 112 5 SCPI Programming Reference Parameter Typical Return <"name"> the table name <table name> <chanlist> one or more channels Activates the table named curve1 on channel 1: CURR:TABL:NAME "curve1", (@1) De-selects the active table: CURR:TABL:NAME (@1) Keysight MP4300 Series Operating and Service Guide...

  • Page 113: Digital Subsystem

    Pin 1 functions as an isolated fault output. Pin 2 is common for pin 1 INHibit Pin 3 functions as an inhibit input. ONCouple Pins 4 -7 synchronize the output On state. OFFCouple Pins 4 -7 synchronize the output Off state. Keysight MP4300 Series Operating and Service Guide...
  • Page 114 NEGative means a logical true signal is a voltage low at the pin. For trigger inputs and outputs, NEGative means a falling edge. The pin polarities are saved in non-volatile memory. Parameter Typical Return POSitive|NEGative POS or NEG Sets pin 1 to POSitive polarity: DIG:PIN1:POL POS Keysight MP4300 Series Operating and Service Guide...

  • Page 115: Fetch Subsystem

    The data is valid until the next MEASure command occurs. Parameter Typical Return <chanlist> one or more channels +1.000000E+01 Returns the measured DC current FETC:CURR? (@1 Returns the measured DC voltage FETC:VOLT? (@1 Keysight MP4300 Series Operating and Service Guide...

  • Page 116: Function Command

    Priority Mode Tutorial for more information. Parameter Typical Return CURRent|VOLTage, *RST VOLTage CURR or VOLT <chanlist> one or more channels Sets the output regulation to current priority on channel 2: FUNC CURR, (@2) Keysight MP4300 Series Operating and Service Guide...

  • Page 117: Hcopy Subsystem

    Returns the image in PNG format: HCOP:SDUM:DATA? PNG HCOPy:SDUMp:DATA:FORMat JPG|PNG HCOPy:SDUMp:DATA:FORMat? Specifies the format for front panel images returned. Parameter Typical Return BMP|JPG|PNG, *RST PNG JPG, or PNG Specify JPG as the image format: HCOP:SDUM:DATA:FORM JPG Keysight MP4300 Series Operating and Service Guide...

  • Page 118: Ieee-488 Common Commands

    Event status event query. Reads and clears the event register for the Standard Event Status group. The event register is a read-only register, which latches all standard events. Refer to Status Tutorial for more information. Keysight MP4300 Series Operating and Service Guide...
  • Page 119 Other commands may be executed before the operation complete bit is set. However, other com- mands cannot be executed until the query completes. The difference between *OPC and *OPC? is that *OPC? returns "1" to the output buffer when the current operation completes. Keysight MP4300 Series Operating and Service Guide...
  • Page 120 Reset State. Parameter Typical Return (none) (none) Reset the instrument: *RST This cancels any measurement or transient actions in process. It resets the WTG-meas, WTG-tran, and WTG-dlog bits in the Operation Status registers. Keysight MP4300 Series Operating and Service Guide...
  • Page 121 Output Queue MAV bit. The Status Byte is a read-only register and the bits are not cleared when it is read. Refer to Status Tutorial for more information. Parameter Typical Return (none) <bit value> Read status byte: *STB? Keysight MP4300 Series Operating and Service Guide...
  • Page 122 Pauses additional command processing until all pending operations are complete. See for more information. Parameter Typical Return (none) (none) Wait until all pending operations complete. *WAI *WAI can only be aborted by sending the instrument a Device Clear command. Keysight MP4300 Series Operating and Service Guide...

  • Page 123: Lxi Subsystem

    To blink the front panel LXI indicator: LXI:IDENT ON LXI:MDNS[:STATe] 0|OFF|1|ON LXI:MDNS[:STATe]? Sets the MDNS state on or off. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 To set the MDNS state on: LXI:MDNS ON Keysight MP4300 Series Operating and Service Guide...

  • Page 124: Measure Subsystem

    The MEASure query starts a new measurement immediately. It is not synchronized to any trigger event. Use the INITiate, TRIGger, and FETCh sequence for synchronized measurements. The default measurement time interval is 1.7 milliseconds. Keysight MP4300 Series Operating and Service Guide...

  • Page 125: Memory Subsystem

    Deletes all tables in both volatile and non-volatile mass memory. The command fails if a table is currently selected or activated with the MEMory:TABLe:SELect or CURRent:TABLe:NAME command. If the command fails, no tables are deleted. Parameter Typical Return (none) (none) Deletes all tables in volatile and non-volatile memory: MEM:DEL:ALL Keysight MP4300 Series Operating and Service Guide...
  • Page 126 Querying values from a table where no values have been set will return NAN (9.91E37). MEMory:TABLe:CURRent[:MAGNitude] :POINts? The query returns the number of current points in the active table. Parameter Typical Return (none) <# of points> Return the number of points in the active table: MEM:TABL:CURR:POIN? Keysight MP4300 Series Operating and Service Guide...
  • Page 127 Querying values from a table where no values have been set will return NAN (9.91E37). MEMory:TABLe:VOLTage[:MAGNitude] :POINts? The query returns the number of voltage points in the active table. Parameter Typical Return (none) <# of points> Return the number of points in the active table: MEM:TABL:VOLT:POIN? Keysight MP4300 Series Operating and Service Guide...

  • Page 128: Output Subsystem

    OUTPut:PROTection:CLEar command or a protection clear command from the front panel. OFF - The Inhibit input is ignored. Parameter Typical Return LATChing|OFF LATC or OFF Sets the Inhibit Input to Latching mode: OUTP:INH:MODE LATC Keysight MP4300 Series Operating and Service Guide...
  • Page 129 When disabled, only the affected output channel is disabled when a protection fault is triggered. Parameter Typical Return 0|OFF|1|ON, *RST OFF 0 or 1 Turns the output coupling protection on: OUTP:PROT:COUP ON Keysight MP4300 Series Operating and Service Guide...
  • Page 130 The margin is returned in degrees Celsius. Parameter Typical Return <chanlist> one or more channels (none) Returns the temperature margin for channel 1: OUTP:PROT:OT:TUNN:MARG? (@1) The factory over-temperature setting is 100° C and the ambient temperature is 25° C. Keysight MP4300 Series Operating and Service Guide...

  • Page 131: [Source] Subsystem

    Because SOURce subsystem commands are often used without the optional SOURce keyword, these commands are listed by their individual subsystems, below: Subsystems and Commands Using the Optional [SOURce:] Keyword CURRent DIGital FUNCtion VOLTage Keysight MP4300 Series Operating and Service Guide...

  • Page 132: Status Subsystem

    The value returned is the binary-weighted sum of all enabled bits in the register.  For example, with bit 3 (value 8) and bit 5 (value 32) set and enabled, the query returns +40. *RST has no effect on this register. Keysight MP4300 Series Operating and Service Guide...
  • Page 133 When a bit in the PTR register is set to 1, then a 0-to-1 transition of the corresponding bit in the Frame Condition register causes that bit in the Frame Event register to be set. STATus:PRESet sets all bits in the PTR registers and clears all bits in the NTR registers. Keysight MP4300 Series Operating and Service Guide...
  • Page 134 The condition register bits reflect the current condition. If a condition goes away, the cor- responding bit is cleared. *RST clears this register, other than those bits where the condition still exists after *RST. Keysight MP4300 Series Operating and Service Guide...
  • Page 135 If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Oper- ation Condition register can set the corresponding bit in the Operation Event register. The value returned is the binary-weighted sum of all enabled bits in the register. Keysight MP4300 Series Operating and Service Guide...
  • Page 136 The condition register bits reflect the current condition. If a condition goes away, the cor- responding bit is cleared. *RST clears this register, other than those bits where the condition still exists after *RST. Keysight MP4300 Series Operating and Service Guide...
  • Page 137 If the same bits in both NTR and PTR registers are set to 0, then no transition of that bit at the Ques- tionable Condition register can set the corresponding bit in the Questionable Event register. The value returned is the binary-weighted sum of all enabled bits in the register. Keysight MP4300 Series Operating and Service Guide...
  • Page 138 The condition register bits reflect the current condition. If a condition goes away, the cor- responding bit is cleared. *RST clears this register, other than those bits where the condition still exists after *RST. Keysight MP4300 Series Operating and Service Guide...

  • Page 139: System Subsystem

    SYSTem:CHANnel:SERial? (@<chanlist>) Returns the serial numbers of the selected channels. Multiple responses are separated by semicolons. Parameter Typical Return <channel list> MY00123456; MY00234567 Returns the serial numbers in channels 3 and 4: SYST:CHAN:SER? (@3,4) Keysight MP4300 Series Operating and Service Guide...
  • Page 140 The error queue is cleared by the *CLS and when power is cycled. It is not cleared by a *RST. Errors have the following format <error code>,<error string>. The error string may contain up to 255 characters. For a list of error codes and message strings, see SCPI Error Messages. Keysight MP4300 Series Operating and Service Guide...
  • Page 141 Typical Return (none) <"version"> Return the SCPI version: SYST:VERS? The command returns a string in the form "YYYY.V", where YYYY represents the year of the version and V represents a version for that year. Keysight MP4300 Series Operating and Service Guide...

  • Page 142: Voltage Subsystem

    Multiple responses are separated by commas. If more than one channel has been queried, all the DAC values for the first channel are returned, followed immediately by the DAC values of the next channel. Keysight MP4300 Series Operating and Service Guide...
  • Page 143 Returns the calculated VOC of the DAC table on channel 2: VOLT:DTAB:SAS:VOC? (@2) [SOURce:]VOLTage:DTABle:TABLe[:IMMediate]? <"name">, (@<chanlist>) Returns the DAC table that was calculated based on the values from the specified table. The number of voltage points returned is set at 1024. Keysight MP4300 Series Operating and Service Guide...
  • Page 144 Questionable Condition status register OV bit is set. Parameter Typical Return 0 to 120% of rating, *RST 120% of rating <protect level> <chanlist> one or more channels Sets the over-voltage protection to 24 V: VOLT:PROT 24, (@2) Keysight MP4300 Series Operating and Service Guide...
  • Page 145 Voc. The values are programmed in volts. Parameter Typical Return 0 – 160 (MP4361A), *RST 0.8% of nominal rating <0.8 X max value> 0 – 130 (MP4362A), *RST 0.8% of nominal rating Keysight MP4300 Series Operating and Service Guide...
  • Page 146 When programming an entirely new curve, it is best to send all parameters on the same program line. In this case, the instrument checks that all parameters are acceptable. The parameters can be sent in any order. Any parameter not programmed takes on the value of the previous curve. Keysight MP4300 Series Operating and Service Guide...

  • Page 147: Status Tutorial

    Channel is disabled by oscillation protection. PWM_SAT_HI Channel is disabled by persistent PWM high saturation protection PWM_SAT_LO Channel is disabled by persistent PWM low saturation protection PWM_SAT_EITHER Channel is disabled by persistent PWM saturation protection Keysight MP4300 Series Operating and Service Guide...

  • Page 148: Unr Status Register

    An execution error occurred. Command Error A command syntax error occurred. not used not used 0 is returned Power On Power has been cycled since the last time the event register was read or cleared. Keysight MP4300 Series Operating and Service Guide...

  • Page 149: Questionable Status Groups

    Output is disabled by current sharing fault protection Output is disabled by leader/follower protection not used not used 0 is returned Output is disabled by under-voltage protection Output is disabled by internal over-current protection Keysight MP4300 Series Operating and Service Guide...

  • Page 150: Operation Status Group

    This register summarizes the status information from the MPS mainframe. The groups consist of a Condition, PTR/NTR, Event, and Enable register. The following table describes the Frame status register bit assignments. Refer to Status Diagram. Keysight MP4300 Series Operating and Service Guide...

  • Page 151: Status Byte Register

    SRQ interrupt line true and latches RQS into bit 6 of the Status Byte register. When the controller does a serial poll, RQS is cleared inside the register and returned in bit position 6 of the response. The remaining bits of the Status Byte register are not disturbed. Keysight MP4300 Series Operating and Service Guide...

  • Page 152: Error And Output Queues

    The Output Queue is a first-in, first-out (FIFO) data register that stores messages until the controller reads them. Whenever the queue holds messages, it sets the MAV bit (4) of the Status Byte register. Status Diagram Keysight MP4300 Series Operating and Service Guide...

  • Page 153: Reset State (*Rst)

    CURRent:SASimulator:IMP 0.8% of nominal rating CURRent:SASimulator:ISC 1% of nominal rating CURRent:SAS:SCALe 100% DIGital:OUTPut:DATA FUNCtion VOLTage LXI:IDENtify LXI:MDNS OUTPut VOLTage VOLTage:LIMit 102% of rating VOLTage:LIMit:LOW VOLTage:PROTection 120% of rating VOLTage:SASimulator:VMP 0.8% of nominal rating Keysight MP4300 Series Operating and Service Guide...
  • Page 154 Subnet mask 255.255.0.0 Default gateway 0.0.0.0 Host name K-<modelname>-<last 5 digits of serial number> mDNS service name Keysight MP4300 Modular Power System <serial number> LAN service - VXI-11 Enabled LAN service - Telnet Enabled Keysight MP4300 Series Operating and Service Guide...
  • Page 155 5 SCPI Programming Reference SCPI Command As-shipped Settings LAN service - mDNS Enabled LAN service - Web server Enabled LAN service - sockets Enabled Web password Blank (web password is disabled) Keysight MP4300 Series Operating and Service Guide...

  • Page 156: Scpi Error Messages

    5 SCPI Programming Reference SCPI Error Messages The Keysight instrument returns error messages in accord with the SCPI standard. Up to 30 errors can be stored in each interface-specific error queue (one each for GPIB, USB, VXI- 11, and Telnet/Sockets.) Errors appear in the error queue of the I/O session that caused the error.
  • Page 157 A selftest failure has occurred. See selftest failure list for details. 203 Compatibility function not implemented The requested compatibility function is not available. 204 NVRAM checksum error A checksum error has occurred in the instrument’s nonvolatile random access memory. Keysight MP4300 Series Operating and Service Guide...
  • Page 158 One or more lists are not the same length. 308 This setting cannot be changed while transient trigger is initiated Setting cannot be changed while the instrument is waiting for or executing a trigger sequence. Keysight MP4300 Series Operating and Service Guide...
  • Page 159 337 IMP must be less than or equal to ISC The IMP curve parameter is greater than the ISC parameter 339 VMP and/or IMP too small The VMP and/or IMP are less than the allowable range of values Keysight MP4300 Series Operating and Service Guide...
  • Page 160 A command was received that was not valid for this instrument. -114 Header suffix out of range The value of the numeric suffix is not valid. -120 Numeric data error Generic numeric data error. Keysight MP4300 Series Operating and Service Guide...
  • Page 161 -151 Invalid string data An invalid character string was received. Check that the string is enclosed in quotation marks. -158 String data not allowed A character string was received, but is not allowed for this command. Keysight MP4300 Series Operating and Service Guide...
  • Page 162 -230 Data corrupt or stale Possible invalid data. A new reading was started but not completed. -231 Data questionable The measurement accuracy is suspect. -232 Invalid format The data format or structure is inappropriate. Keysight MP4300 Series Operating and Service Guide...
  • Page 163 -430 Query DEADLOCKED A condition causing a deadlocked query error occurred. -440 Query UNTERMINATED after indefinite response A query was received in the same program message after a query indicating an indefinite response was executed. Keysight MP4300 Series Operating and Service Guide...

  • Page 164: E4360A Compatibility

    5 SCPI Programming Reference E4360A Compatibility This section describes the primary features of the Keysight MP4360A Modular SAS Power System and how they compare with the primary features of the Keysight E4360A Modular Solar Array Simulator. Differences in General Items...
  • Page 165 Not available CURRent:TABLe:OFFSet <NRf> Not available TRIGger commands Not available FETCh:DLOG Not available VOLTage:DTABle:SAS:LIST? queries Not available FORMat commands Not available VOLTage:SLIMit:HIGH <NRf> Not available INITiate commands Not available VOLTage:TABLe:OFFSet <NRf> Not available Keysight MP4300 Series Operating and Service Guide...

  • Page 167: Verification And Calibration

                                                    Keysight MP4300 Series Operating and Service Guide Verification and Calibration Test Equipment and Setups Performance Verification Instrument Calibration Test Record Forms...

  • Page 168: Test Equipment And Setups

    If you are using a Keysight 3458A DMM, you can set up the voltmeter to do this automatically. From the instrument’s front panel, program 100 power line cycles per measurement. Press NPLC 100 ENTER.
  • Page 169 Many of the test procedures require the use of a variable load capable of dissipating the required power. For all tests, a Keysight MP4300 mainframe, with MP4361A modules can be used as a load. The electronic load unit is considerably easier to use than load resistors.

  • Page 170: Performance Verification

    The performance verification tests are recommended as acceptance tests when you first receive the instrument. The acceptance test results should be compared against the instrument specifications. Keysight Technologies recommends that you repeat the performance verification tests at every calibration interval. This ensures that the instrument will remain within specifications for the next calibration interval and provides the best long-term stability.

  • Page 171: Verification Setups

    Turn the unit off or send a Reset command after completing the verification procedure to return all instrument settings to their default values. Verification Setups Keysight MP4300 Series Operating and Service Guide...

  • Page 172: Test Considerations

    (refer to the Mainframe Characteristics section). Step 1. Turn off the unit under test. Connect the load resistors, differential amplifier, and an oscilloscope (ac coupled) to the output (see Test Setup Keysight MP4300 Series Operating and Service Guide...
  • Page 173 “CV Ripple and Noise”. Turn the output on. Let the oscilloscope run for a few seconds to generate enough measurement points. On the Keysight Infiniium scope, the maximum peak-to-peak voltage measurement is indicated at the bottom of the screen on the right side. The result should not exceed the peak-to-peak limits in the test record form under “CV Ripple and Noise,...
  • Page 174 CC status. Divide the voltage drop (DMM reading) across the current shunt by the shunt resistance to convert to amps and record this value. The readings should be within the limits specified in the test record form under “Current Sink Test”. Keysight MP4300 Series Operating and Service Guide...

  • Page 175: Instrument Calibration

    These constants are not saved in nonvolatile memory until a SAVE command is explicitly given. Exit the calibration mode by sending CAL:STAT OFF. Note that any calibration section that was cal- ibrated but not saved will revert to its previous calibration constants. Keysight MP4300 Series Operating and Service Guide...

  • Page 176: Calibration Interval

    A one-year interval is adequate for most applications. Accuracy specifications are warranted only if adjustment is made at regular calibration intervals. Published accuracy specifications are not warranted beyond the one-year calibration interval. Keysight MP4301A and MP4302A mainframes do not require calibration.

  • Page 177: Calibration Procedure

    Voltage Programming and Measurement Calibration Step 1. Connect the voltage input of the Keysight 3458A DMM to an output channel. Connect the +sense terminal to the +output and the -sense terminal to the -output (see Test Setup Step 2.
  • Page 178 Full scale ranges vary by model. This selects the 10 A range: CAL:CURR 10, (@1) Step 5. Select the first current calibration point. Calculate the shunt current (I=V/R) and enter the data. SCPI Command CAL:LEV P1 *OPC? Keysight MP4300 Series Operating and Service Guide...
  • Page 179 Step 8. Enter a Calibration date. SCPI Command CAL:DATE <"date">, (@1) Step 9. Save Calibration and Exit. SCPI Command To save calibration data: CAL:SAVE To exit calibration mode: CAL:STAT OFF Step 10. Turn the unit off. Keysight MP4300 Series Operating and Service Guide...

  • Page 180: Test Record Forms - Mps Family

    Current priority: 100 V, 0 A not used Current Programming & Readback High: Current priority: 100 V, 10 A not used Current Rating (Isink): Current priority: 102 V, -10 A Voltage priority: 100 V, 10.2 A Keysight MP4300 Series Operating and Service Guide...
  • Page 181 Current priority: 130 V, 0 A not used Current Programming & Readback High: Current priority: 130 V, 8 A not used Current Rating (Isink): Current priority: 132 V, -0.5 A Voltage priority: 130 V, 0.52 A Keysight MP4300 Series Operating and Service Guide...

  • Page 183: Service And Maintenance

                                                    Keysight MP4300 Series Operating and Service Guide Service and Maintenance Introduction Self-Test Procedure Calibration Switches Battery Replacemsnt Cleaning Disassembly...

  • Page 184: Introduction

    7 Service and Maintenance Introduction Repair Service Available If your instrument fails during the warranty period, Keysight Technologies will repair or replace it under the terms of your warranty. After your warranty expires, Keysight offers repair services at competitive prices.
  • Page 185 7 Service and Maintenance Do not ship MPS mainframes with the power modules installed. Remove all power modules from the mainframe before returning the instrument. Keysight suggests that you always insure shipments. Keysight MP4300 Series Operating and Service Guide...

  • Page 186: Self-Test Procedure

    If 0, self-test passed. If 1, self-test failed. on. Press the Error key to display the list of errors. If self test-fails, use SYSTem:ERRor? to view the self-test error. For a list of errors, see SCPI Error Messages. Keysight MP4300 Series Operating and Service Guide...

  • Page 187: Calibration Switches

    The calibration password is reset to 0 when the instrument is first powered on. Use this setting if you have forgotten the password. Inhibit Calibration All calibration commands are disabled. This is useful where access is guarded by instru- ment seals. Keysight MP4300 Series Operating and Service Guide...

  • Page 188: Battery Replacement

    The top of the small spring clips should be visible after the battery is seated (see red circle) 4. Replace the top cover when finished. 5. Reset the date and time (see Clock Setup) Keysight MP4300 Series Operating and Service Guide...

  • Page 189: Cleaning

    4. Install the filter in the front panel. Firmly attach the filter so the metal tabs protrude into the slits in the filter. Note that the filter is asymmetrical and can only be correctly installed one way. Keysight MP4300 Series Operating and Service Guide...
  • Page 190 7 Service and Maintenance 5. Replace the filter housing on the front panel. Note that the triangle symbols must align. 6. Hand tighten the housing screws. Replacement filters and parts can be ordered from Keysight Technologies using the following part numbers: Part Number...

  • Page 191: Disassembly

    1. Turn off the power. Remove all cables from the instrument. 2. Remove the four screws indicated in the following figure. Place the screws in a container so that you do not lose them. Keysight MP4300 Series Operating and Service Guide...

  • Page 192: Access The Calibration Switches And The Battery

    Move the wires to the side as indicated by the arrow. 2. If your unit does not have GPIB board, you must also remove the shield located underneath the ac wires. Keysight MP4300 Series Operating and Service Guide...
  • Page 193 GPIB card. Reinsert the ac wires into the ac connector block and push down the orange locking tabs. 5. Reinstall the maintenance cover. When reassembling, torque all screws to 9 in-lbs. Keysight MP4300 Series Operating and Service Guide...

  • Page 195: Index

    Environment 37 Air flow 37 Compatibility Error commands 164 Average measurements 88 messages 156 Connections Error queue 92 AXC mains 41 Battery replacement 188 ESE 118 bus bar 44 ESR? 118 interface 52 Keysight MP4300 Series Operating and Service Guide...
  • Page 196 Options 28 voltage 71 Instrument identification 92 Output Protection Introduction 97 current 58 over-current 86 SCPI Language 97 enable 72 over-temperature 86 Isc 79 voltage 57 over-voltage 86 OUTPut Subsystem 128 Keywords 97 Keysight MP4300 Series Operating and Service Guide...
  • Page 197 Summary 121 Vmp 79 settings 153 Standard Operation Voc 79 RST 120 Register 121 Voltage 57 Standard Operation Sum- VOLTage Subsystem 142 mary 121 Safety 36 State storage 92 cover 46 WAI 122 Keysight MP4300 Series Operating and Service Guide...
  • Page 198 Wire size 44 Keysight MP4300 Series Operating and Service Guide...

This manual is also suitable for:

Mp4301aMp4302aMp4361aMp4362a

Table of Contents
