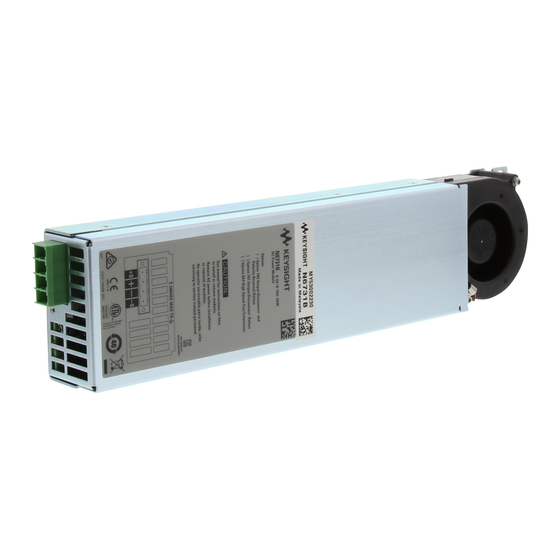

- Page 1 Modular Power System This manual provides the documentation for the following instruments: N6731B through N6736B N6741B through N6746B N6751A through N6756A N6761A through N6766A N6773A through N6777A N6781A through N6786A N6791A and N6792A Declassification and Security Document...
- Page 2 IMPLIED WARRANTIES OF technical data. MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Safety Notices KEYSIGHT SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, USE, OR A CAUTION notice denotes a hazard.
- Page 3 During the warranty period, Keysight Technologies will, at its option, either repair or replace products that prove to be defective. For warranty service or repair, this product must be returned to a service facility designated by Keysight Technologies.
-
Page 4: Table Of Contents
Table of Contents Contacting Keysight Sales and Service Offices ..................5 Products Covered by this Document ..................... 6 Security Terms and Definitions ......................7 Instrument Memory ..........................8 Summary of Memory Declassification Procedures ................11 Procedure for Declassifying a Faulty Instrument ................15... -
Page 5: Contacting Keysight Sales And Service Offices
Contacting Keysight Sales and Service Offices Assistance with test and measurement needs, and information on finding a local Keysight office, is available on the Internet at: http://www.keysight.com/find/assist If you do not have access to the Internet, please contact your field engineer. -
Page 6: Products Covered By This Document
The model’s user guide explains how to store states outside the product. Keysight Technologies cannot be held responsible for any lost files or data resulting from the clearing, or sanitization of memory. -
Page 7: Security Terms And Definitions
Instrument sanitization is typically required when an instrument is moved from a secure to a non-secure environment, such as when it is returned to the factory for calibration. Keysight memory sanitization procedures are designed for customers who need to meet the requirements specified by the US Defense Security Service (DSS). These requirements are specified in the “Clearing and Sanitization Matrix”... - Page 8 This section contains information on the types of memory available in your module. It explains the size of memory, how it is used, its location, volatility, and the clearing or sanitization procedure. Table1: Memory Summary For Model N6731B, N6732B, N6733B, N6734B, N6735B, N6736B N6741B, N6742B, N6743B, N6744B, N6745B, N6746B N6751A, N6752A, N6753A, N6754A, N6755A, N6756A...
- Page 9 Table 2: Memory Summary For Model N6781A, N6782A, N6784A, N6785A, N6786A Memory Type and Purpose/ Contents Data Input Location in Sanitization Method Instrument and Procedure Size Remarks Programmed Used to store, before installed Note 1 EEPROM Model Number and by Firmware Main PCA See Table 4 16K-bit...
- Page 10 Table 3: Memory Summary For Model N6791A, N6792A Memory Type and Purpose/ Contents Data Input Location in Sanitization Size Method Instrument and Procedure Remarks EEPROM Used to store, Programmed Model Number before installed 16K-bit See Table 4 Serial Number and by Firmware Main PCA Calibration data operations (cal...
-
Page 11: Summary Of Memory Declassification Procedures
The procedure erases the user state information. Read this entire document before using any sanitization procedure. Failure to do so may necessitate returning the instrument to an Authorized Keysight Service Center for firmware downloads and recalibration. Table 4: Mainframe Flash (User NAND Flash section B for N6700C, N6701C, N6702C and N6705C mainframe) For more information on mainframe memory see Declassification Security Document for mainframe model.) - Page 12 Be sure that all information stored by the user in the instrument that needs to be saved is properly backed up before attempting to clear any of the instrument memory. Remarks Keysight Technologies cannot be held responsible for any lost files or data resulting from the clearing of memory. Table 5: Module EEPROM...
- Page 13 Table 6: Module EEPROM (Use when module installed in N6700B, N6701A,N6702A, N6705B mainframe) For more information on mainframe memory see Declassification Security Document for mainframe model.) Description and This module EEPROM memory is used to identify the module, It is Used to store, purpose Model Number, Serial number, Calibration data, Calibration Date, and User saved states Size...
- Page 14 When using the module in N6700B,N6701A,N6702A mainframes: To clear mainframe nonvolatile RAM, and module saved states, 1) Turn on the mainframe. 2) Enter the Admin menu by Pressing: 3) The Menu key 4) Select, System, enter 5) Select, Admin, enter 6) Login, enter 7) Enter password , enter 8) Enter,...
-
Page 15: Procedure For Declassifying A Faulty Instrument
Procedure for Declassifying a Faulty Instrument If the instrument is not able to power on, the user information cannot be cleared using the front panel or the remote interface. The only choice in this situation is to take manual steps to remove any user information that may be present. -
Page 16: References
References DoD 5220.22-M, “National Industrial Security Program Operating Manual (NISPOM)” United States Department of Defense. Revised February 28, 2006. May be downloaded in Acrobat (PDF) format from: http://www.dss.mil/isp/fac_clear/download_nispom.html ISFO Process Manual for the Certification and Accreditation of Classified Systems under the NISPOM Defense Security Service. - Page 17 This information is subject to change without notice ©Keysight Technologies, 2018 December, 2018 5992-3110EN www.keysight.com...
