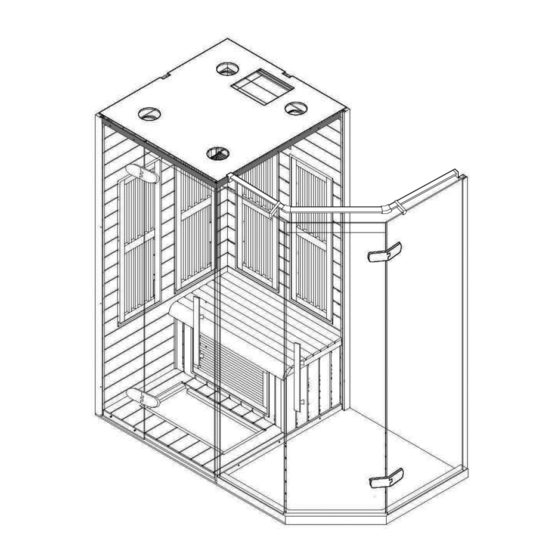

INSTALLATION MANUAL
KYS2000
Sauna Series
30 Day Technical Support:
Call 01908 317512 and request technical support for aiding your
installation.
Replacements Parts:
Inside of your warranty period visit:
https://www.insigniashowers.com, click support and make a
warranty claim.
Spares/Replacements Parts:
Outside of your warranty period visit
https://www.insigniashowers.com/replacement-parts.html
ATTENTION INSTALLERS:
These instructions must be
left with the customer
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

Advertisement

loading

Related Manuals for Insignia KYS2000

Summary of Contents for Insignia KYS2000

  • Page 1 Last Modified: 31/01/2022 INSTALLATION MANUAL KYS2000 Sauna Series 30 Day Technical Support: Call 01908 317512 and request technical support for aiding your installation. Replacements Parts: Inside of your warranty period visit: https://www.insigniashowers.com, click support and make a warranty claim.
  • Page 2 www.insigniashowers.com Last Modified: 31/01/2022 Contents Thank you for your purchase Fixed Glass Panel Install (Shower) Electrical & Tool requirements Door Install (Shower) Box contents Shower Support Bar Install Sauna Side Panel and Back Panel Install Door Handle Install (Shower) Floor Placement Sauna Control Panel Instructions Bench Install Sauna Room Safety Guide...
  • Page 3 Last Modified: 31/01/2022 Thank you for your recent purchase of an Insignia Sauna. Please read this booklet with great care to ensure you get the best out of your build and have a Sauna that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.

  • Page 4: Tools Required

    www.insigniashowers.com Last Modified: 31/01/2022 Electrical Requirements Model KSY2000 Tools Required Voltage Rating 220-240AC • Scissors Frequency Rating 50Hz • Knife Power Rating 1597 Watts • Spirit Level Total Amperage 6.67 Amps • Tape Measure Always consult a qualified Electrician before connection as to suitability •...

  • Page 5: What's In The Boxes

    Sauna Door Central Upright Connector Magnetic Seal VERY IMPORTANT Have you got everything? If not please contact the Insignia directly on 01908 317 512. Remember NEVER book your tradesman until everything has arrived, been checked and is present. No replacement/missing parts can be obtained free of charge during or after the build.
  • Page 6 www.insigniashowers.com Last Modified: 31/01/2022 Step 1 — Installing the back and side panel (Sauna) The panel connection brackets are shown (above). Lift panels and locate the interlocking connection brackets and push the panel down to secure into position. Locate both panels onto the wooden side of the base.
  • Page 7 www.insigniashowers.com Last Modified: 31/01/2022 Step 2 — Placing the floor into position Locate the floor and place into position by pushing it up to the side and back panel tightly.
  • Page 8 www.insigniashowers.com Last Modified: 31/01/2022 Step 3 — Installing the bench Locate the bench front and place between the two 6 x 50mm Screws wooden struts on the side panel to secure it into position. Locate the bench side and place between the wooden struts on the back panel to secure into position.
  • Page 9 www.insigniashowers.com Last Modified: 31/01/2022 Step 4 — Connecting the heater electrics Locate the wires and connect together before finishing the bench install.
  • Page 10 www.insigniashowers.com Last Modified: 31/01/2022 Step 5 — Installing the bench topper 2 x 60mm Screws Locate the bench seat and slide into position. The underside of the bench top will have a grooved recess which fits over the bench uprights.
  • Page 11 www.insigniashowers.com Last Modified: 31/01/2022 Step 6 — Installing the central glass partition Locate the central glass partition panel and slide it into the connecting upright on the back panel. Secure in position by using the screw and spacer combo provided. Place the plastic glass spacer through the glass, then the washer and countersunk plastic head.
  • Page 12 www.insigniashowers.com Last Modified: 31/01/2022 Step 7 — Installing the front fixed glass panel Locate the front fixed glass panel and slide it into the connecting upright on the left side panel. Secure in position by using the screw and spacer combo provided. Place the plastic glass spacer through the glass, then the washer and countersunk plastic head.
  • Page 13 www.insigniashowers.com Last Modified: 31/01/2022 Step 8 — Installing the Roof Locate the roof and place in position, then secure by using the screw and spacer combo provided. Place the plastic glass spacer through the glass, then the washer and countersunk plastic head. Place the screw through all three and screw to secure, then place the chrome finishing cap in position.
  • Page 14 www.insigniashowers.com Last Modified: 31/01/2022 Step 9 — Installing the Sauna/Shower front connection upright Locate the metal connection upright and slot it onto the central glass partition panel. This will be a secure and tight fit. If it is too tight, slightly slacken off the roof connection to ease the upright into position.

  • Page 15: Step 10 - Installing The Door

    www.insigniashowers.com Last Modified: 31/01/2022 Step 10 — Installing the Door Unscrew to separate Locate the magnetic seals into position as demonstrated to ensure the door closes once installed. Attach the door hinge to the fixed glass panel before installing the door. Lift the door into position and then fix the door into the hinges.
  • Page 16 www.insigniashowers.com Last Modified: 31/01/2022 Step 11 — Door Handle Install Separate the door handle using an Allen key and screwdriver. Once separated, align each handle and the connecting pieces on either side of the door and reconnect the handle.
  • Page 17 www.insigniashowers.com Last Modified: 31/01/2022 Step 11 — Roof Cover/Electrics Install Once the electrics have been 12 x 12mm Screws installed, locate the roof topper and place in position and screw down using ST12 Screws. Locate all wires on top of the sauna and connect to the corresponding connection from the wires...
  • Page 18 www.insigniashowers.com Last Modified: 31/01/2022 Step 12 — Installing the Shower base frame Locate the two fixed glass securing bars and position on the left and right base. Ensure the open end faces the outer edge of the frame and the grooves align with the vertical upright grooves for the glass to fit into.
  • Page 19 www.insigniashowers.com Last Modified: 31/01/2022 Step 13 — Installing the Shower Upright Locate the vertical upright and position against the wall. Using a drill, locate the bolt holes in the upright, drill through into the wall and insert wall plugs. Once the wall plugs have been placed, connect the upright using the bolts provided.
  • Page 20 www.insigniashowers.com Last Modified: 31/01/2022 Step 14 — Installing the fixed glass Locate the fixed glass panels and slot into the framework.
  • Page 21 www.insigniashowers.com Last Modified: 31/01/2022 Step 8 — Installing the Shower Door Unscrew to separate Attach the door hinge to the fixed glass panel before installing the door. Lift the door into position and then fix the door into the hinges. To realign the door, loosen the bolts slightly, reposition and then retighten.
  • Page 22 www.insigniashowers.com Last Modified: 31/01/2022 Step 9 — Connecting the Shower support bar Locate all pieces of the shower support bar and lay out as shown below. Loosen all grub screws on the underside of the support bar pieces to allow them to slot together. Connect the bar together and tighten up the grub screws underneath to secure together.
  • Page 23 www.insigniashowers.com Last Modified: 31/01/2022 Step 10 — Installing the Shower door handle Separate the door handle using an Allen key and screwdriver. Once separated, align each handle and the connecting pieces on either side of the door and reconnect the handle.
  • Page 24 www.insigniashowers.com Last Modified: 31/01/2022 Sauna Control Panel Instructions Button 1/2 (+/- Temp) Cycle through desired temperature setting (max 60°C) Button 3/4 (+/- Time) Cycle through desired time setting (max 99 mins) Button 5/6 (Sauna Heaters) Press to activate Sauna heaters. Pressing once will put the heaters on at 100%. Twice = 90%. Three times = 80%. Four times = 70% and five times = Off.
  • Page 25 www.insigniashowers.com Last Modified: 31/01/2022 Sauna Usage & Safety Guide Never leave children unattended in the Sauna. Regulate the temperature of sauna before session - Pre-heat time 15-30 minutes (from room temperature 20c) Never touch the heater panels whilst in operation, possible burning may occur. Recommended time of use 15-20 minutes per session Stay hydrated during each Sauna session.
  • Page 26 (EEE) have to fulfil certain obligations. Under the WEEE directive Insignia is considered the producer of certain products we supply and in line with the demands of the legislation we are pleased to offer the op- portunity to return these products to us for treatment and recycling.
  • Page 27 www.insigniashowers.com Last Modified: 31/01/2022...
