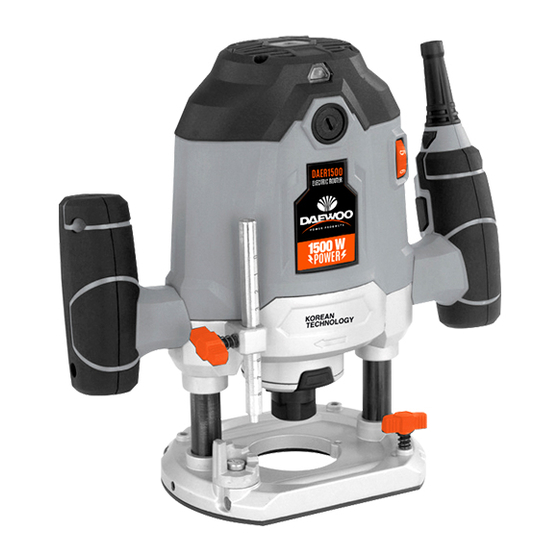

DAER1500
Electric router
USER'S MANUAL
www.daewoopowerproducts.com
Manufactured under license of Daewoo International Corporation, Korea

Advertisement

loading
Need help?

Need help?

Do you have a question about the DAER1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daewoo DAER1500

  • Page 1 DAER1500 Electric router USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
  • Page 2: Table Of Contents

    INDEX 1. GENERAL POWER TOOL SAFETY WARNINGS ..................4 2. EXPLANATION OF SYMBOLS ......................... 6 3. FUNCTIONAL DESCRIPTION ......................... 6 4. ASSEMBLY AND ADJUSMENT ....................... 7 5. OPERATION ............................. 8 6. TECHNICAL DATA ........................... 9 7. EXPLODED VIEW ........................... 10 WARRANTY ...............................
  • Page 3 Fig 1 Fig 2 Fig .3 Fig. 4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 Fig 10 Fig.11 Fig.12 Fig.13...
  • Page 4: General Power Tool Safety Warnings

    1. GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 5 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 6: Explanation Of Symbols

    the tool to twist. 9. The direction of feeding the bit into the material is very important and it relates to the direction of bit rotation. When viewing the tool form the top, the bit rotates clockwise. Feed direction of cutting must be counter-clockwise .
  • Page 7: Assembly And Adjusment

    4. ASSEMBLY AND ADJUSMENT IMPORTANT: Prior to assembly and adjustment always unplug the tool. Inserting and removing a bit (Fig.3) Installing a bit 1. Press and hold down the spindle lock button (5). 2. Using the spanner to loosen the collet nut (6) a few turns and insert a bit 3.
  • Page 8: Operation

    CAUTION: Dust may cause respiratory problems. Certain laminated board materials are carcinoge- nic. After work, always remove all dust from the machine. 5. OPERATION Cutting in several operations (Fig. 9) The length stop turret(8) can be used to set different depths. For cutting in depth or in stages, use the length stop turret as an aid.
  • Page 9: Technical Data

    using a screwdriver, open the cap and remove the old carbon brushes. If they are 6 mm or less then they must both be replaced. Fit new carbon brushes and close the cap. After replaced new carbon brushes, let the machine run with no load for 15 minutes. CAUTION: The brushes must always be replaced in pairs.
  • Page 10: Exploded View

    7. EXPLODED VIEW...
  • Page 11 Description Description screw ST4.2X16 adjust konb upper cover spring head cover screw M4X90 steel sleeve Φ18XΦ22X12 spring washer Φ4 washer Φ4 bearing faster nut indicator lamp right handle cable press plate lampshade housing screw ST4.2X12 screw ST4X8 cord &plug rear cover cord sleeve capacitor speed control switch...
  • Page 12: Warranty

    WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 1 year for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed.
  • Page 13 Manufactured under license of Daewoo International Corporation, Korea...
