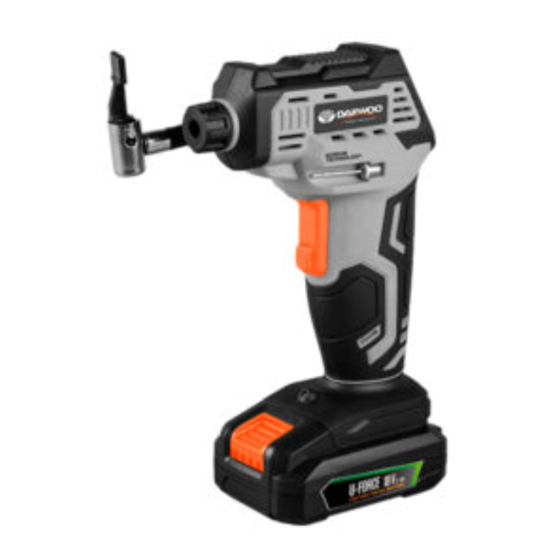

- Page 1 DALI18-1 Lithium Inflator USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. GENERAL SAFETY INSTRUCTIONS ...................... 3 2. UNPACKING ............................. 5 3. PACKING LIST ............................5 4. TECHNICAL DATA ........................... 6 5. OPERATION ............................. 6 6. MAINTENANCE ............................8 7. EXPLODED VIEW AND SPARE PART LIST ..................... 9 WARRANTY ............................... 11... -
Page 3: General Safety Instructions
SYMBOLS • In this manual, on the labels, packages and all other information provided with this tool. The following signal words and meanings are intended to explain the levels of risk associated with this tool. SYMBOLS SIGNAL MEANING lndicates a potentially hazardous situation, which, if not avoided, could WARNING: result in death or serious injury. - Page 4 symptoms occur. • Make sure there are no hidden electrical cables, gas pipes, etc. while working on the work piece. These hazards could harm the user if damaged while using this tool. • Wash hands after handling this product or its power cord. They may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 5: Unpacking
BATTERY AND CHARGER USE AND CARE • Only use batteries that are recommended for this tool by the manufacturer. Use of any other battery may cause risk of injury or re. • When the battery is not in use, keep it away from metal objects that could connect one terminal to another. -
Page 6: Technical Data
4. TECHNICAL DATA Power: 18 V Max. air pressure: 5 bar (10 PSI) Tolerance: 0.5 PSI Function: LC-Display Sound pressure level L : 87, 85 dB (A), KpA=3 dB (A) Sound power level L : 67, 85 dB (A), KpA=3 dB (A) Vibration value: 1.937 m/s K=1.5 m/s Weight: 0.75 kg... - Page 7 CHARGING BATTERY 1. To charge the battery, line up the slot of the battery with the slot of the charger and slide into place. 2. The battery indication light should tum from green to red when the battery is charging. 3.
-
Page 8: Maintenance
WARNING: The power in ator is not designed for continuous operation. For every ve minutes of use, ve minutes of cooling down time is required. WARNING: Always leave the hose free of obstructions. Overheating could occur if the hose is blocked. USING THE AIR PUMP INFLATION 1. -
Page 9: Exploded View And Spare Part List
7. EXPLODED VIEW AND SPARE PART LIST Serial Part Name number Air mouth knob Air pump core Mechanism screws Bullet pad LCD Circuit Board Motor LCD button Motor wind vane LCD panel Inductance Sealing spring LED lamp Rubber tubing Fuselage contact frame Card Sensor seal bracket Battery pack assembly... - Page 10 0.80 kg 305 mm 345 mm 225 mm The DAEWOO Products authorized representative declares that these products described under "technical data" are in compliance with: Machinery Directive (2006/42/EC), Electromagnetic Compatibility Directive (2014/30/EU), EN 55014-1:2017 and EN 55014-2:2015. is herewith confirmed to fulfill all the relevant provisions of - A-weighed sound power level according to 8.6 of EN ISO 3744...
-
Page 11: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 2 years for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 12 Manufactured under license of Daewoo International Corporation, Korea...
