Summary of Contents for Daewoo DAJS 400

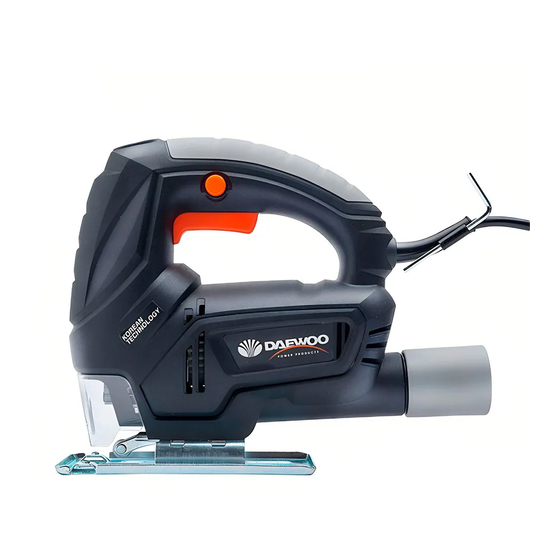

- Page 1 DAJS 400 Jig Saw USER MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. PARTS ..............................2 2. SAFETY INSTRUCTIONS........................2 STRUCTURE USES......................4. INSTRUCTIONS OF USE........................4 5. MAINTENANCE AND LUBRICATION...................... 5 6. TECHNICAL SPECIFICATIONS......................6 6. EXPLOSION VIEW AND PARTS LIST....................6 WARRANTY..............................8... -
Page 3: Parts
1. PARTS 1. Trigger switch 2. Variable speed dial 3. Protective guard 4. Blade holder 5. Foot plate 6. Dust extraction connector 7. Trigger lock button WARNING! WHILE USING POWER TOOLS FOLLOW STRICTLY ALL SAFETY INSTRUCTIONS TO AVOID FIRE HAZARD, DANGER OF ELECTRIC SHOCK AND BODILY INJURY. BEFORE USING THE JIG SAW READ THIS MANUAL CAREFULLY AND SAVE IT FOR FUTURE USE. - Page 4 10. Power cord must not be overstretched. − Never carry a power tool holding it by power cord, or unplug it by pulling at the cord. Keep power cord away from heat, oil, and sharp edges. 11. Keep a safe, stable footing while working. −...
-
Page 5: Structure And Uses
3. STRUCTURE AND APPLICATIONS Top handle jig saw is a Class II, double-insulated hand power tool. It is driven by a single-phase commutator motor. Power tools of this type are widely used for cutting wood and wood-like mate- rials, plastic and metal. Jig saw offers the possibility of orbital blade movement with speed adjust- ment (4-position). -
Page 6: Maintenance And Lubrication
Fig. 4 Disconnect power tool from power supply. Raise the guard and use Allen key to slacken the screws on jig saw foot. Move the foot plate backwards and set it at the desired angle according to the scale. Move the foot forward and secure it with screws. The scale helps to incline the foot to the desired angle, i.e. -
Page 7: Technical Specifications
6. TECHNICAL SPECIFICATIONS Voltage: 230 V Frequency: 50 Hz Power: 400 W No load speed: 500-3000 rpm Max cutting depth: wood: 55 mm steel: 6 mm Sound pressure level: Lp = 95,0 dB(A), according to PN-EN-50144-1. Sound power level: Lw = 106,0 dB(A), according to PN-EN-50144-1. Vibration level: 4,48 m/s2. - Page 8 29 Screw 30 Cable lining 31 Allen key 32 Cable 33 Washer...
-
Page 9: Warranty
Manufactured under license of Daewoo International Corporation, Korea...
