Panasonic VDR-D250EG Service Manual

Dvd video camcoder
Hide thumbs

Advertisement

Quick Links

Download this manual
ORDER NO.VM0603009CE
DVD Video Camcorder
VDR-D250EG / VDR-D250E / VDR-D250EB / VDR-D250EP /
VDR-D250EE / VDR-D250GC / VDR-D250GN / VDR-D250SG /
VDR-D250GCS / VDR-D258GK
VOL.1
Colour
(S)....................Silver Type
SPECIFICATIONS
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VDR-D250EG and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic VDR-D250EG

Summary of Contents for Panasonic VDR-D250EG

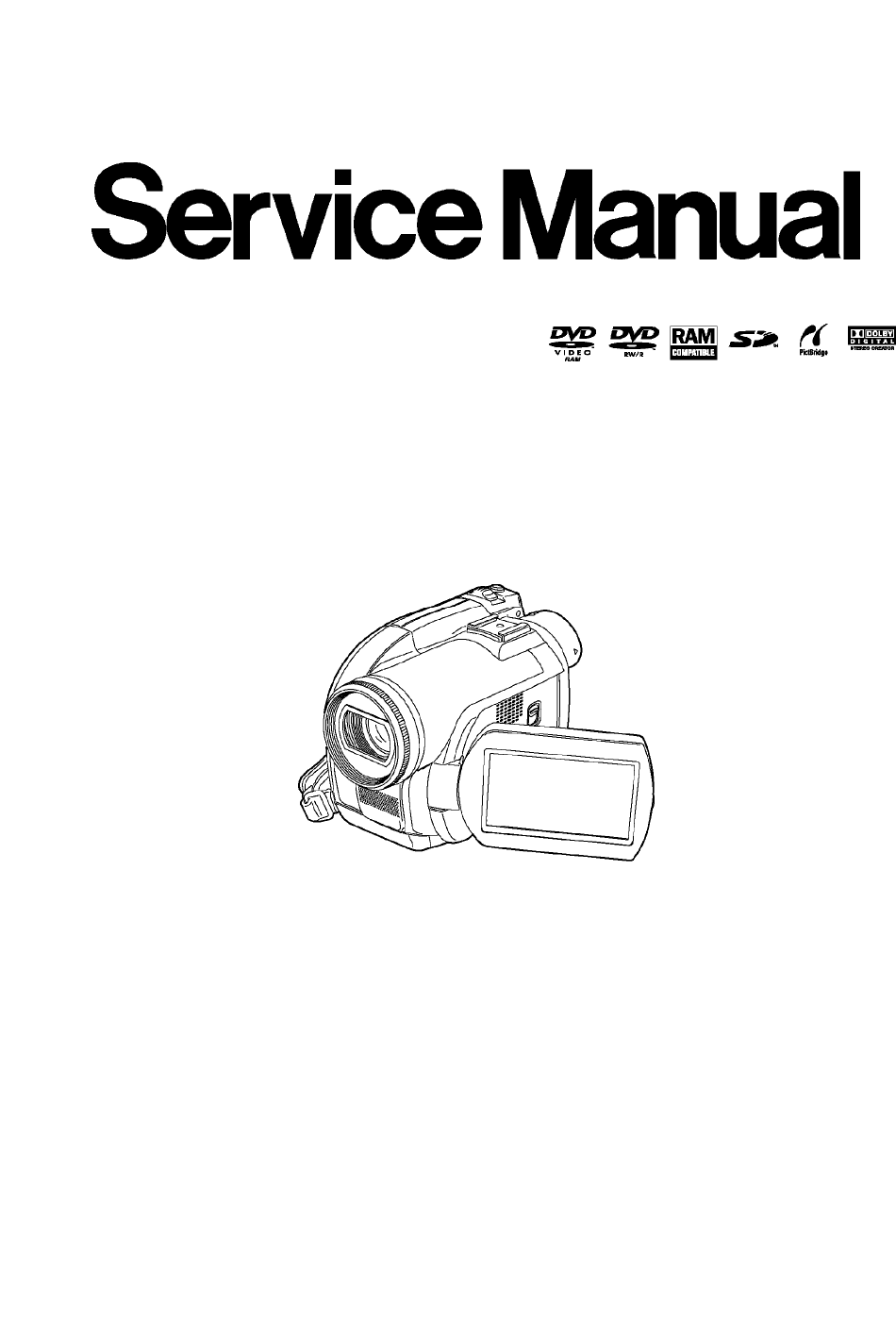

  • Page 1 ORDER NO.VM0603009CE DVD Video Camcorder VDR-D250EG / VDR-D250E / VDR-D250EB / VDR-D250EP / VDR-D250EE / VDR-D250GC / VDR-D250GN / VDR-D250SG / VDR-D250GCS / VDR-D258GK VOL.1 Colour (S)....Silver Type SPECIFICATIONS...
