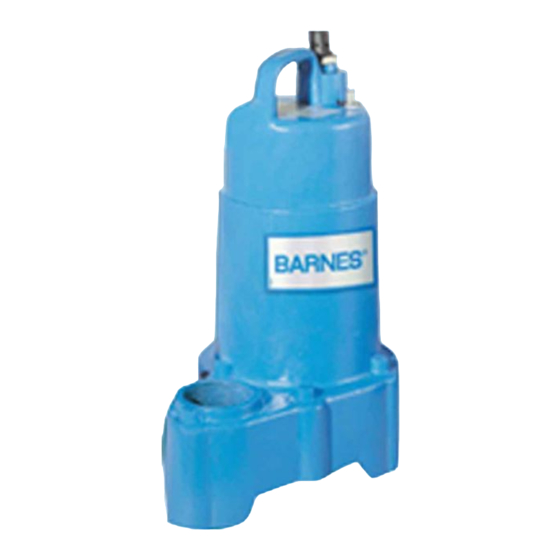

Submersible Sump / Effl uent Pump
IMPORTANT!
Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notifi cation.
A Crane Co. Company
420 Third Street
Piqua, Ohio 45356
Phone: (937) 778-8947
Fax: (937) 773-7157
www.cranepumps.com
Manual Index
BARNES
BARNES
INSTALLATION MANUAL
Series: SP33HTX
.33 HP, 3450 RPM, 60 Hz.
High Temperature
83 West Drive, Bramton
Ontario, Canada L6T 2J6
Phone: (905) 457-6223
Fax: (905) 457-2650
®
Form No. 113833-Rev. G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crane BARNES SP33HTX Series
Summary of Contents for Crane BARNES SP33HTX Series
- Page 1 Read all instructions in this manual before operating pump. As a result of Crane Pumps & Systems, Inc., constant product improvement program, product changes may occur. As such Crane Pumps & Systems reserves the right to change product without prior written notifi cation.
-
Page 2: Safety First
Other brand and product names are trademarks or registered trademarks of their respective holders. ® Barnes is a registered trademark of Crane Pumps & Systems, Inc. 2002, 2003, 8/05, 5/06, 9/06 Alteration Rights Reserved... -
Page 3: Pump Specifications
PUMP SPECIFICATIONS: DISCHARGE ....... 1½” NPT, Female, Vertical LOWER BEARING: LIQUID TEMPERATURE ..185°F (85°C) Continuous. Fully Design ..... Single Row, Ball, Oil Lubricated Submerged Load ....Radial & Thrust MOTOR HOUSING ..... Cast Iron MOTOR: Design ..... Oil Filled PUMP STRAINER .... -
Page 4: Section B: General Information
B-4) Service Centers: For the location of the nearest Barnes Service Center, check your Barnes representative or Crane Pumps & Systems, Inc., Service Department in Piqua, Ohio, telephone (937) 778-8947 or Crane Pumps & Systems Canada, Inc., Bramton, Ontario, FIGURE 2 (905) 457-6223. -
Page 5: Section D: Service And Repair
SECTION D: SERVICE AND REPAIR Manual WARNING ! - DO NOT overfi ll oil. Overfi lling of Automatic motor housing with oil can create excessive and dangerous hydraulic pressure which can destroy the pump and create a hazard. Overfi ll- ing oil voids warranty. -
Page 6: Section: E Warranty Repair
E-2 Part Number: The part number consists of a six (6) digit number, which appears in the catalog. A one or two letter suffi x may follow this number to designate the design confi guration. This number is used for ordering and obtaining informa- tion. -
Page 7: Troubleshooting
TROUBLE SHOOTING CAUTION ! Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them: MATCH “CAUSE”... -
Page 8: Returned Goods
RETURNED GOODS RETURN OF MERCHANDISE REQUIRES A “RETURNED GOODS AUTHORIZATION”. CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR. Products Returned Must Be Cleaned, Sanitized, Or Decontaminated As Necessary Prior To Shipment, To Insure That Employees Will Not Be Exposed To Health Hazards In Handling Said Material. - Page 9 Notes...
- Page 10 Notes...
-
Page 11: Warranty Registration
Your product is covered by the enclosed Warranty. Complete the Warranty Registration Form and return to Crane Pumps & Systems, Inc. Warranty Service Group If you have a claim under the provision of the warranty, contact your local Crane Pumps & Systems, Inc. Distributor. - Page 12 FOLD HERE AND TAPE, DO NOT STAPLE PLACE STAMP HERE CRANE PUMPS & SYSTEMS, INC. WARRANTY SERVICE GROUP 420 THIRD STREET PIQUA, OHIO 45356 - U.S.A.
