Manual version: 6PW106-20210319
H3C SecPath NSQ1FAB12D0 switching fabric module
1 Module view
The NSQ1FAB12D0 switching fabric module uses product code NSQM1FAB12D0.

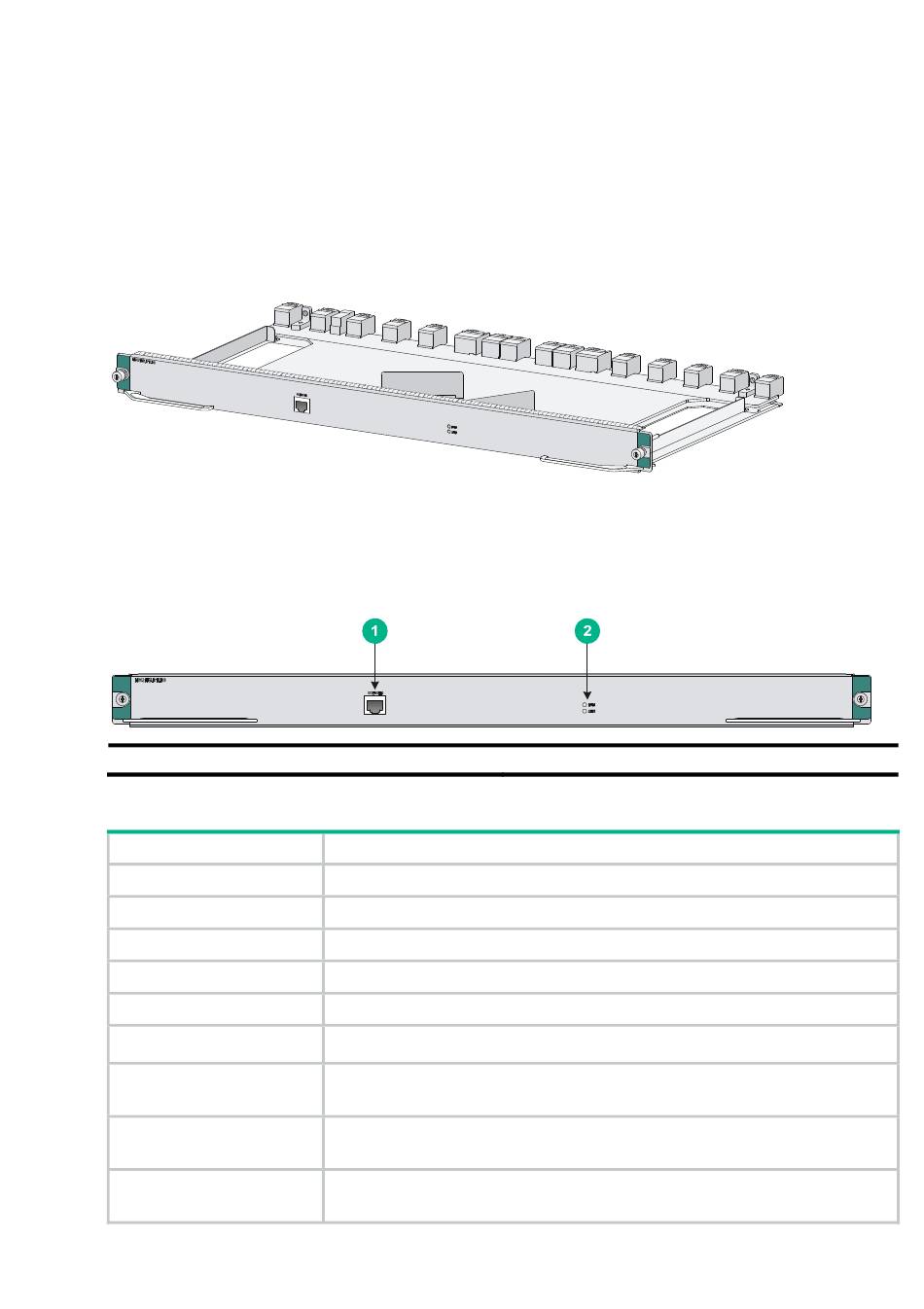

Figure 1 NSQ1FAB12D0 switching fabric module
2 Specifications
Figure 2 Front panel
(1) Console port (CONSOLE)
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Ports
Ambient temperature
Ambient humidity
Compatible device models
and slots
Specifications
40 × 602 × 298 mm (1.57 × 23.70 × 11.73 in)
195 W to 255 W
4.51 kg (9.94 lb)
Supported
RJ-45
1 × console port
•
Operating: 0°C to 45°C (32°F to 113°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
•
Operating: 10% RH to 95% RH, noncondensing
•
Storage: 5% RH to 95% RH, noncondensing
•
M9014 gateway (slots 14 to 17)
•
T9014 IPS (slots 14 to 17)
i
(2) Status LEDs
BOM: 3123A0R1
