Manual version: 6PW105-20181010

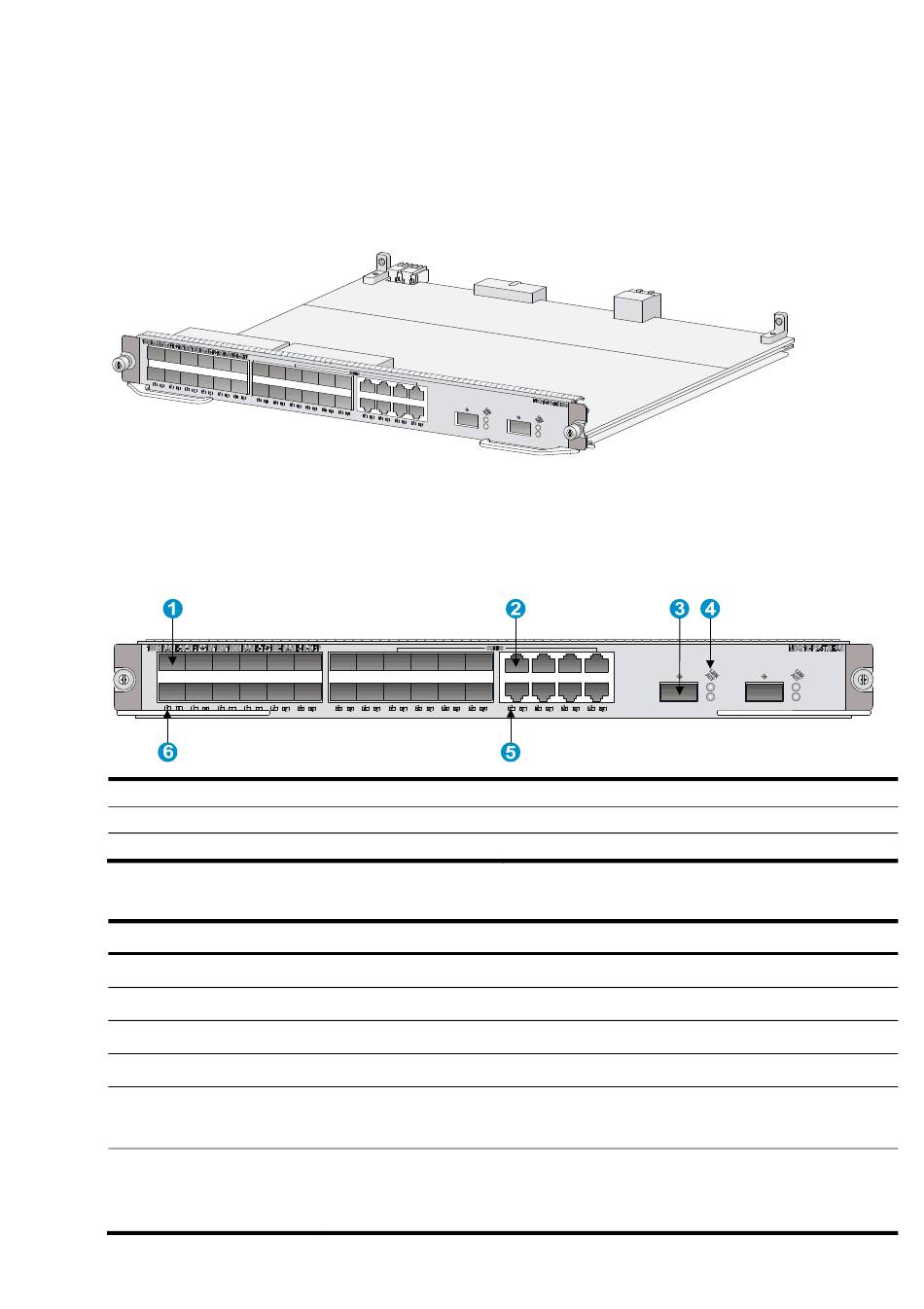

1 Card view
Figure 1 NSQ1GP24TXEA0 LPU
2 Specifications
Figure 2 Front panel of the NSQ1GP24TXEA0
(1) 100/1000 Mbps SFP port
(3) 10 Gbps XFP port
(5) Ethernet port status LED
Table 1 LPU specifications
Item
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Connector type
Interfaces
H3C NSQ1GP24TXEA0 LPU manual
Specification
40 × 399 × 352 mm (1.57 × 15.71 × 13.86 in)
54 W to 95 W
3.08 kg (6.79 lb)
Supported
LC
RJ-45
•
Sixteen 1000/100 Mbps SFP ports
•
Eight combo interfaces
•
Two 10GBASE-R-XFP ports
(2) 10/100/1000BASE-T Ethernet port
(4) XFP port LED
(6) SFP port status LED
i
BOM: 3123A0R6
Advertisement
Table of Contents
Related Manuals for H3C NSQ1GP24TXEA0 LPU
Summary of Contents for H3C NSQ1GP24TXEA0 LPU
- Page 1 Manual version: 6PW105-20181010 BOM: 3123A0R6 H3C NSQ1GP24TXEA0 LPU manual 1 Card view Figure 1 NSQ1GP24TXEA0 LPU 2 Specifications Figure 2 Front panel of the NSQ1GP24TXEA0 (1) 100/1000 Mbps SFP port (2) 10/100/1000BASE-T Ethernet port (3) 10 Gbps XFP port (4) XFP port LED...
- Page 2 Manual version: 6PW105-20181010 BOM: 3123A0R6 Item Specification • 1000/100 Mbps SFP ports—1000/100 Mbps, full duplex. • 1000 Mbps copper Ethernet ports—1000/100/10 Mpbs, half/full duplex. Transmission speed • 10 Gbps XFP ports—10 Gbps. • Operating: 0°C to 45°C (32°F to 1 13°F) Ambient temperature •...
- Page 3 Manual version: 6PW105-20181010 BOM: 3123A0R6 Central Connector Cable Maximum Type wavelength type specifications transmission distance 1490 nm 9/125 μm single SFP-GE-LX-SM1490-BIDI (transmit)/1310 10 km (6.21 miles) mode fiber nm (receive) 9/125 μm single SFP-GE-LH70-SM1470-CW 1470 nm 70 km (43.50 miles) mode fiber 9/125 μm single SFP-GE-LH70-SM1490-CW...
- Page 4 Manual version: 6PW105-20181010 BOM: 3123A0R6 Table 3 Specifications of XFP modules Optional XFP Central Connector Maximum transmission Cable specifications module wavelength type distance 50/125 μm multi-mode XFP-SX-MM850 850 nm 300 m (984 ft) optical fiber 9/125 μm single-mode XFP-LX-SM1310 1,310 nm 10 km (6 miles) optical fiber 9/125 μm single-mode...
- Page 5 If no new LPU is to be installed, install a filler panel to prevent dust and ensure good ventilation in the device. Copyright © 2018 New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
