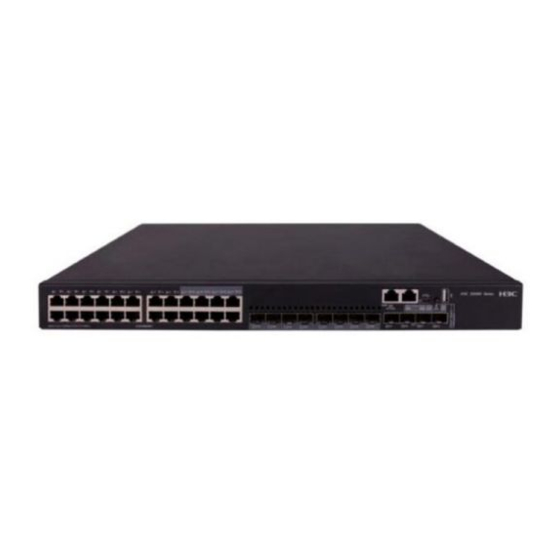

H3C S5560X-30C-EI Installation Manual

Hide thumbs Also See for S5560X-30C-EI:
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
1 Preparing for installation ·········································································· 1-1
Safety recommendations ································································································································ 1-1
Examining the installation site ························································································································· 1-1
Temperature/humidity ····························································································································· 1-2
Cleanliness ·············································································································································· 1-2
Corrosive gas limit ··································································································································· 1-2
EMI ·························································································································································· 1-3
Laser safety ············································································································································· 1-4
Installation tools ·············································································································································· 1-4
2 Installing the switch ·················································································· 2-5
Installing the switch in a 19-inch rack·············································································································· 2-7
Installation methods ································································································································ 2-7
Installation accessories ··························································································································· 2-8
Rack-mounting the switch by using front mounting brackets ·································································· 2-9
Rack-mounting the switch by using front and rear mounting brackets ·················································· 2-10
Mounting the switch on a workbench ············································································································ 2-14
Grounding the switch ···································································································································· 2-14
Grounding the switch with a grounding strip ························································································· 2-14
Grounding the switch with a grounding conductor buried in the earth ground ······································ 2-16
Installing/removing a fan tray ························································································································ 2-17
Installing a fan tray ································································································································ 2-18
Removing a fan tray ······························································································································ 2-18
Installing/removing a power module ············································································································· 2-19
Installing a PSR150-A1/PSR150-A2/PSR150-D1 power module ························································· 2-20
Removing a PSR150-A1/PSR150-A2/PSR150-D1 power module ······················································· 2-21
Installing a PSR360-56A/PSR560-56D/PSR720-56A/PSR1110-56A power module ··························· 2-21
Removing a PSR360-56A/PSR560-56D/PSR720-56A/ PSR1110-56A power module ························ 2-23
Connecting the power cord ··························································································································· 2-24
Connecting the power cord for the built-in AC power module (1) ························································· 2-25
Connecting the power cord for the built-in AC power module (2) ························································· 2-26
Connecting a power cord for the built-in DC power module·································································· 2-27
Connecting the PSR150-A1/PSR150-A2 ······························································································ 2-27
Connecting the PSR150-D1/PSR560-56D ···························································································· 2-28
Connecting the PSR360-56A/PSR720-56A/PSR1110-56A ·································································· 2-29
Installing/removing an expansion card ·········································································································· 2-30
Installing an expansion card·················································································································· 2-30
Removing an expansion card ················································································································ 2-33
Verifying the installation ································································································································ 2-33
3 Accessing the switch for the first time ···················································· 3-34
Connecting the switch to a configuration terminal························································································· 3-34
Connecting a DB9-to-RJ45 console cable ···························································································· 3-35
Connecting a USB-to-RJ45 console cable ···························································································· 3-36
Connecting a micro USB console cable ································································································ 3-38
Setting terminal parameters ·························································································································· 3-40
Powering on the switch ································································································································· 3-40
4 Setting up an IRF fabric ········································································· 4-42
IRF fabric setup flowchart ····························································································································· 4-42
Planning IRF fabric setup ······························································································································ 4-43
Planning IRF fabric size and the installation site ··················································································· 4-43
Identifying the master switch and planning IRF member IDs ································································ 4-43
Planning IRF topology and connections································································································ 4-44
Identifying physical IRF ports on the member switches ········································································ 4-45
Planning the cabling scheme ················································································································ 4-45
Configuring basic IRF settings ······················································································································ 4-48
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5560X-30C-EI and is the answer not in the manual?

Questions and answers

Related Manuals for H3C S5560X-30C-EI

Summary of Contents for H3C S5560X-30C-EI

  • Page 1: Table Of Contents

    Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 Examining the installation site ························································································································· 1-1 Temperature/humidity ····························································································································· 1-2 Cleanliness ·············································································································································· 1-2 Corrosive gas limit ··································································································································· 1-2 EMI ·························································································································································· 1-3 Laser safety ············································································································································· 1-4 Installation tools ·············································································································································· 1-4 2 Installing the switch ·················································································· 2-5 Installing the switch in a 19-inch rack··············································································································...
  • Page 2 Connecting the physical IRF ports ················································································································ 4-48 Verifying the IRF fabric setup ························································································································ 4-49 5 Maintenance and troubleshooting ·························································· 5-50 Fixed power module failure ··························································································································· 5-50 AC input failure ······································································································································ 5-50 DC input failure ····································································································································· 5-50 AC and DC concurrent input failure ······································································································ 5-51 Removable power module failure ·················································································································...

  • Page 3: Preparing For Installation

    Preparing for installation This document is applicable to the following Ethernet switches: • S5560X-30C-EI • S5560X-30C-PWR-EI • S5560X-54C-EI • S5560X-54C-PWR-EI • S5560X-30F-EI • S5560X-30F-EIF • S5560X-54F-EI • S5560X-34S-EI • S5560X-54S-EI Safety recommendations To avoid any equipment damage or bodily injury caused by improper use, read the following safety recommendations before installation.

  • Page 4: Temperature/Humidity

    • The rack or workbench is reliably grounded. To ensure correct operation and long service life of your switch, install it in an environment that meets the requirements described in the following subsections. Temperature/humidity For correct operation and long service life of your switch, maintain the temperature and humidity in the equipment room at acceptable ranges.

  • Page 5: Emi

    Table1-2 Corrosive gas concentration limits in the equipment room Average concentration (mg/m Maximum concentration (mg/m 0.01 0.03 0.05 CAUTION: As a best practice, control the corrosive gas concentrations in the equipment room at their average values. Make sure the corrosive gas concentrations do not exceed 30 minutes per day at their maximum values.

  • Page 6: Laser Safety

    • Use electromagnetic shielding, for example, shielded interface cables, when necessary. • To prevent signal ports from getting damaged by overvoltage or overcurrent caused by lightning strikes, route interface cables only indoors. Laser safety WARNING! The switch is Class 1 laser device. Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber might hurt your eyes.

  • Page 7: Installing The Switch

    Installing the switch CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence.
  • Page 8 Figure2-1 Hardware installation flow Start Install the switch Connect the grounding cable With fan tray slots? Install fan trays With power module slots? Install power modules Connect power cords Verify the installation Resolve the Turn on the circuit breakers problem Turn off the Operating correctly? circuit breakers...

  • Page 9: Installing The Switch In A 19-Inch Rack

    Installing the switch in a 19-inch rack Installation methods Table2-2 Installation methods for the S5560X-EI switches Installation Chassis Installation requirements Installation procedure methods S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI Using front "Rack-mounting the Install the front mounting brackets at S5560X-30F-EIF mounting switch by using front the port side or power module side.

  • Page 10: Installation Accessories

    Installation accessories Table2-3 Installation accessories for the S5560X-EI switches Front mounting brackets Rear mounting brackets and Switch model (Figure2-4) shoulder screws (Figure2-5) S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI S5560X-30F-EIF Provided S5560X-54F-EI S5560X-34S-EI S5560X-54S-EI S5560X-30C-PWR-EI Provided Provided S5560X-54C-PWR-EI Figure2-4 Front mounting bracket (1) Screw hole for attaching the bracket to the switch...

  • Page 11: Rack-Mounting The Switch By Using Front Mounting Brackets

    Rack-mounting the switch by using front mounting brackets Attaching the front mounting brackets to the switch S5560X-30C-EI, S5560X-54C-EI, S5560X-30F-EI, S5560X-30F-EIF, S5560X-54F-EI, S5560X-34S-EI, and S5560X-54S-EI switches provide two installation positions on the side panels for the front mounting brackets. One is near the power module side and one is near the port side.

  • Page 12: Rack-Mounting The Switch By Using Front And Rear Mounting Brackets

    Figure2-8 Mounting the switch in the rack (front mounting brackets at the port side) Figure2-9 Mounting the switch in the rack (front mounting brackets at the power module side) Rack-mounting the switch by using front and rear mounting brackets Attaching the front mounting brackets and shoulder screws to the switch To rack-mount the S5560X-30C-PWR-EI and S5560X-54C-PWR-EI switches by using the front and rear mounting brackets, you can install the front mounting brackets at the port-side or power module-side mounting position.
  • Page 13 Align the round holes in the wide flange of one front mounting bracket with the screw holes in the port-side mounting position on one side of the chassis. See Figure2-10. Use M4 screws (supplied with the switch) to attach the mounting bracket to the chassis. Repeat the proceeding two steps to attach the other mounting bracket to the chassis.
  • Page 14 Figure2-11 Attaching the rear mounting brackets to a rack with the wide flange inside the rack Figure2-12 Attaching the rear mounting brackets to a rack with the wide flange outside the rack Mounting the switch in the rack Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Make sure the front mounting brackets and shoulder screws are securely attached to the two sides of the switch.
  • Page 15 One person supports the chassis bottom with one hand, holds the front part of the chassis with the other hand, and pushes the chassis into the rack gently. Make sure the shoulder screws make close contact with the upper edges of the rear mounting brackets, as shown in Figure2-13.

  • Page 16: Mounting The Switch On A Workbench

    Mounting the switch on a workbench IMPORTANT: • Reserve a minimum of 10 cm (3.9 in) of clearance around the chassis for heat dissipation. • Do not place heavy objects on the switch. To mount the switch on a workbench: Verify that the workbench is sturdy and reliably grounded.
  • Page 17 IMPORTANT: Orient the grounding cable as shown in Figure2-15 so you can easily install or remove the expansion card. Figure2-15 Connecting the grounding cable to the chassis (1) Grounding screw (2) Ring terminal (3) Grounding sign (4) Grounding hole (5) Grounding cable Connecting the grounding cable to a grounding strip (1) This method is applicable to the S5560X-30C-PWR-EI and S5560X-54C-PWR-EI switches.

  • Page 18: Grounding The Switch With A Grounding Conductor Buried In The Earth Ground

    (3) Grounding cable (4) Hex nut Connecting the grounding cable to a grounding strip (2) This method is applicable to the S5560X-30C-EI, S5560X-54C-EI, S5560X-30F-EI, S5560X-30F-EIF, S5560X-54F-EI, S5560X-34S-EI, and S5560X-54S-EI switches. To connect the grounding cable to a grounding strip: Cut the grounding cable to a length required for connecting to the grounding strip.

  • Page 19: Installing/Removing A Fan Tray

    Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for corrosion protection. Figure2-19 Grounding the switch by burying the grounding conductor into the earth ground (1) Grounding screw (2) Chassis rear panel (3) Grounding cable (4) Earth (5) Joint (6) Grounding conductor...

  • Page 20: Installing A Fan Tray

    Installing a fan tray CAUTION: To prevent damage to the fan tray or the connectors in the chassis, insert the fan tray gently. If you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it again. To install a fan tray: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.

  • Page 21: Installing/Removing A Power Module

    To remove a fan tray: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Grasp the two handles of the fan tray, as shown by callout 1 in Figure2-21, and pull out the fan tray slowly along the guide rails.

  • Page 22: Installing A Psr150-A1/Psr150-A2/Psr150-D1 Power Module

    For the power modules available for the switch and their specifications, see Hardware Information and Specifications. Installing a PSR150-A1/PSR150-A2/PSR150-D1 power module CAUTION: To prevent damage to the power module or the connectors on the backplane, insert the power module gently. If you encounter a hard resistance when inserting the power module, pull out the power module and insert it again.

  • Page 23: Removing A Psr150-A1/Psr150-A2/Psr150-D1 Power Module

    Figure2-25 Installing a PSR150-A1 power module Removing a PSR150-A1/PSR150-A2/PSR150-D1 power module The removal procedure is the same for PSR150-A1, PSR150-A2, and PSR150-D1 power modules. The following procedure uses the PSR150-A1 power module as an example. To remove a PSR150-A1 power module: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
  • Page 24 Figure2-26 Removing the filler panel Unpack the power module and verify that the power module model is correct. Put away the packaging box and packaging bag of the power module for future use. Correctly orient the power module with the power module slot (use the letters on the power module faceplate for orientation), grasp the handle of the power module with one hand and support its bottom with the other, and slide the power module slowly along the guide rails into the slot until you hear that the latch of the power module clicks into the slot.

  • Page 25: Removing A Psr360-56A/Psr560-56D/Psr720-56A/ Psr1110-56A Power Module

    Figure2-28 PSR1110-56A power module installed in the chassis NOTE: The PSR1110-56A power module adds 64 mm (2.52 in) to chassis depth, which includes the handle of the power module. Removing a PSR360-56A/PSR560-56D/PSR720-56A/ PSR1110-56A power module The removal procedure is the same for the PSR360-56A, PSR560-56D, PSR720-56A, and PSR1110-56A power modules.

  • Page 26: Connecting The Power Cord

    Figure2-29 Removing the power module Connecting the power cord Table2-4 Power source options and power cord connection procedures for the power modules Power module model Power source option Power cord connection procedure • S5560X-34S-EI and S5560X-54S-EI switches: Connecting the power cord for the built-in AC power module (1) AC power source •...

  • Page 27: Connecting The Power Cord For The Built-In Ac Power Module (1)

    CAUTION: • The AC power cord provided with the PSR150-A1/PSR150-A2 power module uses a C13 connector. The AC power cord provided with the PSR360-56A/PSR720-56A/PSR1110-56A power module uses a high-temperature C15 connector. Do not mix them. • Provide a circuit breaker for each power module and make sure the circuit breaker is off before installation.
  • Page 28 Connecting the power cord for the built-in AC power module The following procedure applies to the S5560X-30F-EIF switch. To connect the power cord for the built-in AC power module: Connect the female connector of the AC power cord to the AC-input power receptacle on the power module, as shown in Figure2-32.

  • Page 29: Connecting A Power Cord For The Built-In Dc Power Module

    WARNING! • The DC-input power receptacle on the switch requires a DC power cord with a JD5-A connector. • To use a –48 VDC power source for power supply, purchase an H3C recommended DC power cord yourself. • To use an RPS for power supply, purchase a power cord compatible with the RPS yourself.

  • Page 30: Connecting The Psr150-D1/Psr560-56D

    Connecting the PSR150-D1/PSR560-56D CAUTION: • To use a –48 VDC power source for power supply, purchase an H3C recommended DC power cord yourself. • To use an RPS for power supply, purchase a power cord compatible with the RPS yourself.

  • Page 31: Connecting The Psr360-56A/Psr720-56A/Psr1110-56A

    Tighten the screws on the connector with a flat-blade screwdriver to secure the connector in the DC-input power receptacle (see callout 2 in Figure2-37). Connect the two wires at the other end of the power cord to a –48 VDC power source or an RPS.

  • Page 32: Installing/Removing An Expansion Card

    Figure2-39 Connecting the PSR720-56A Installing/removing an expansion card CAUTION: • Do not touch the surface-mounted components directly with your hands. • Do not use excessive force when you install or remove an expansion card. • Do not install or remove an expansion card on a starting switch. S5560X-EI switches except the S5560X-34S-EI and S5560X-54S-EI each provide an expansion slot at the rear.
  • Page 33 Figure2-40 Removing the filler panel over the expansion slot Unpack the expansion card. If the expansion card has an ejector lever, follow these steps to install it: a. Rotate out the ejector lever, as shown by callout 1 in Figure2-41. b.
  • Page 34 Figure2-41 Installing an expansion card with an ejector lever (LSWM2SP2PM) Figure2-42 Installing an expansion card without an ejector lever (LSPM6FWD) 2-32...

  • Page 35: Removing An Expansion Card

    Figure2-43 LSPM6FWD firewall card installed in the switch NOTE: An LSPM6FWD or LSPM6FWD8 firewall card (including its handle) adds 75 mm (2.95 in) to the chassis depth when installed on the device. Removing an expansion card Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. Use a Phillips screwdriver to remove the captive screw on the expansion card.

  • Page 36: Accessing The Switch For The First Time

    As a best practice, use a serial console cable for connection. The switch is not provided with a serial console cable or a micro USB console cable. Prepare an H3C console cable or prepare a micro USB console cable yourself.

  • Page 37: Connecting A Db9-To-Rj45 Console Cable

    Connecting a DB9-to-RJ45 console cable CAUTION: Follow these guidelines when you connect a DB9-to-RJ45 console cable: • Identify the mark on the serial console port and make sure you are connecting to the correct port. • The serial ports on PCs do not support hot swapping. To connect a PC to an operating switch, first connect the PC end.

  • Page 38: Connecting A Usb-To-Rj45 Console Cable

    Click the following link, or copy it to the address bar on your browser and download the USB-to-RJ45 console driver. http://www.h3c.com/en/home/USB_to_RJ45_Console/ View the TXT file Read me in the Windows folder to check whether the Windows system of the configuration terminal supports the driver.
  • Page 39 Figure3-4 Driver installation wizard Click Finish after the drive installation is completed. Figure3-5 Finishing the driver installation Connect the standard USB connector of the cable to the USB port of the configuration terminal. 3-37...

  • Page 40: Connecting A Micro Usb Console Cable

    Click the following link, or copy it to the address bar on the browser to log in to download and install the USB console driver on the configuration terminal. http://www.h3c.com/en/home/USB_Console/ Select a driver program according to the operating system you use: XR21V1410_XR21B1411_Windows_Ver1840_x86_Installer.EXE—32-bit operating...
  • Page 41 Figure3-7 Device Driver Installation Wizard Click Continue Anyway if the following dialog box appears. Figure3-8 Software Installation Click Finish. 3-39...

  • Page 42: Setting Terminal Parameters

    Figure3-9 Completing the device driver installation wizard Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site.
  • Page 43 After the startup completes, you can access the CLI to configure the switch. For more information about the configuration commands and CLI, see H3C S5560X-EI Switch Series Configuration Guides and H3C S5560X-EI Switch Series Command References.

  • Page 44: Setting Up An Irf Fabric

    Setting up an IRF fabric You can use H3C IRF technology to connect and virtualize S5560X-EI switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability. IRF fabric setup flowchart...

  • Page 45: Planning Irf Fabric Setup

    You can affect the election result by assigning a high member priority to the intended master switch. For more information about master election, see H3C S5560X-EI Switch Series IRF Configuration Guide or H3C S5560X-EI Switch Series Virtual Technologies Configuration Guide, depending on the software version.

  • Page 46: Planning Irf Topology And Connections

    Figure4-2 Figure4-3 show the topologies of an IRF fabric made up of three S5560X-30C-EI switches. The IRF port connections in the two figures are for illustration only, and more connection methods are available. Figure4-2 IRF fabric in daisy chain topology...

  • Page 47: Identifying Physical Irf Ports On The Member Switches

    For a short-distance IRF connection in an equipment room, use a twisted-pair cable, SFP+ cable, SFP28 cable, or QSFP+ cable. For a long-distance IRF connection, use SFP+/SFP28/QSFP+ transceiver modules and optical fibers. The following subsections describe several H3C recommended IRF connection schemes. All these schemes use a ring topology. 4-45...
  • Page 48 IMPORTANT: In these schemes, all physical IRF ports are located on the same side. If physical IRF ports are on different sides, you must measure the distance between them to select an appropriate cable. Connecting the IRF member switches in one rack Use twisted pair/SFP+/SFP28/QSFP+ cables to connect the IRF member switches (9 switches in this example) in a rack as shown in Figure4-4.
  • Page 49 Figure4-4 Connecting the switches in one rack 4-47...

  • Page 50: Configuring Basic Irf Settings

    • To bind the ports on an interface card to an IRF port, you must install the interface card first. For how to install an interface card, see H3C S5560X-EI Switch Series Interface Cards User Guide. • Execute the command to verify the basic IRF settings.

  • Page 51: Verifying The Irf Fabric Setup

    To avoid IP address collision and network problems, configure a minimum of one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more information about MAD detection, see H3C S5560X-EI Switch Series IRF Configuration Guide or H3C S5560X-EI Switch Series Virtual Technologies Configuration Guide, depending on the software version.

  • Page 52: Maintenance And Troubleshooting

    Verify that the ambient temperature of the switch is in the acceptable range and ensure good ventilation for the power module. Overtemperature can cause the power module to stop working and enter the protection state. If the issue persists, contact H3C Support. DC input failure Symptom The switch uses only DC power input.

  • Page 53: Ac And Dc Concurrent Input Failure

    Verify that the ambient temperature of the switch is in the acceptable range and ensure good ventilation for the power module. Overtemperature can cause the power module to stop working and enter the protection state. If the issue persists, contact H3C Support. AC and DC concurrent input failure Symptom 1 The switch uses concurrent AC and DC power inputs.

  • Page 54: Removable Power Module Failure

    S5560X-54C-PWR-EI switches, observe the LEDs on the power module and the PWR LED on the front panel of the switch. For more information about the LEDs on a power module, see H3C PSR360-56A Power Module User Manual, H3C PSR560-56D Power Module User Manual, H3C PSR720-56A Power Module User Manual, or H3C PSR1110-56A Power Module User Manual.

  • Page 55: Configuration Terminal Display Problems

    Verify that the power module is supplying power to the switch. Verify that the console cable is correctly connected. Verify that the console cable does not have any problems and the PC settings are correct. If the issue persists, contact H3C Support. Garbled display Symptom The display on the PC is garbled.

This manual is also suitable for:

S5560x-30c-pwr-eiS5560x-54c-eiS5560x-54c-pwr-eiS5560x-30f-eiS5560x-30f-eifS5560x-54f-ei ... Show all
