H3C S6800-54QT Installation, Quick Start

H3C S6800-54QT [S6800-54HT] Switches Installation Quick Start-6W105
H3C S6800-54QT [S6800-54HT]交换机 快速安装指南-6W105

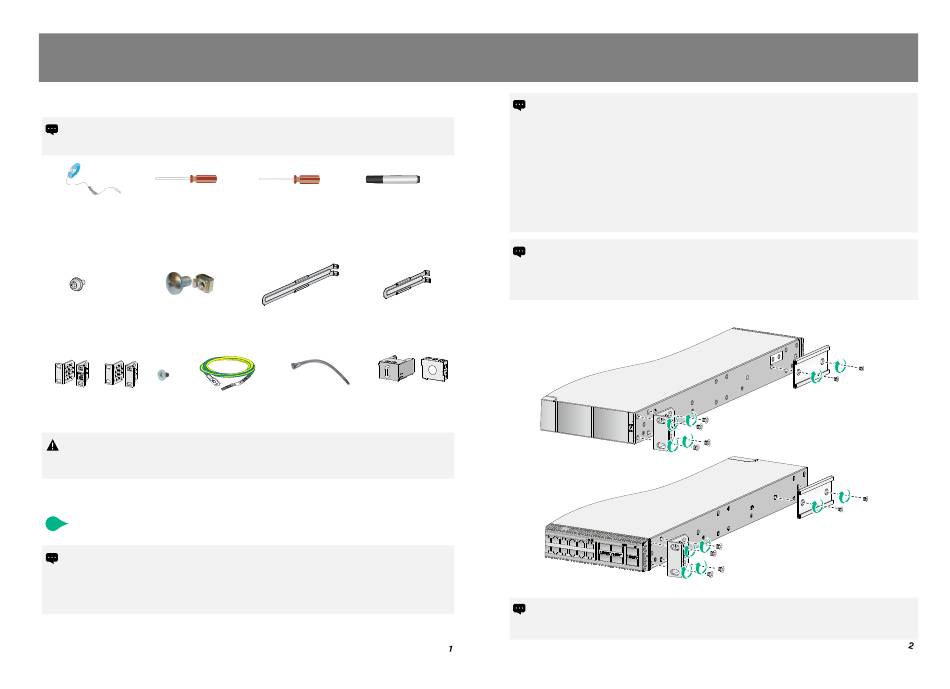

Tool list 工具参考
The installation tools are not provided with the switch. Prepare them yourself as required.
交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
ESD wrist strap Phillips screwdriver
防静电腕带 十字螺丝刀
Installation accessories 安装附件介绍
Grounding screw M6 screw and cage nut
接地螺钉
(user supplied)
M6 螺钉和浮动螺母(用户自备)
Type A 类型一 Type B 类型二
Mounting brackets and M4 screw
挂耳和M4螺钉
..
Wear an ESD wrist strap, and make sure the strap makes good skin contact and is reliably
!
grounded. 操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带
已经良好接地。
Mounting the switch in a rack 安装交换机到机柜
Attach the mounting brackets and chassis rails to the switch
1
安装挂耳和滑道导轨到交换机
Install the mounting brackets near the port side or power module side of the switch as
needed. Attach the chassis rails to the switch based on the mounting bracket installation
position and rack depth. 用户可以根据安装场景的需要，将挂耳安装在设备靠近端口侧或
靠近电源侧，并根据机柜深度，在交换机侧面板的对应位置安装滑道导轨。
Flathead screwdriver
一字螺丝刀
Rack-mount rail kit A Rack-mount rail kit C
(with long slide rails)
长滑道和导轨 滑道和导轨（选配）
Grounding cable
Cable tie
地线
可拆卸式扎带
For an LS-6800-54QT-H3, if the rack has a depth (distance between the front and rear
rack posts) in the range of 621 to 854 mm (24.45 to 33.62 in), use mounting brackets
and rack-mount rail kit A. If the rack has a depth in the range of 401 to 634 mm (15.79
to 24.96 in), use mounting brackets and rack-mount rail kit C.
For the other switch models, if the rack has a depth of 405 to 834 mm (15.94 to 32.83
in), use mounting brackets and rail-mount rail kit C.
对于LS-6800-54QT-H3机型，挂耳与长滑道和导轨配合安装适用于机柜前后方孔条间距
范围为621～854mm。挂耳与滑道和导轨配合安装适用于机柜前后方孔条间距范围为
Marker 401～634mm。
记号笔
对于其他机型，挂耳与滑道和导轨配合安装适用于机柜前后方孔条间距范围为405～834mm。
交换机各款机型安装挂耳、长滑道或滑道到交换机的方式相似，此处以产品代码为
LS-6800-54QT-H3的机型为例。The mounting bracket and slide rail installation
procedures are similar for the switches. The following procedures use an LS-
6800-54QT-H3 switch.
Attaching the mounting brackets and chassis rails of rack-mount rail kit A to the switch
(optional)
挂耳与长滑道的导轨配合安装
Type A Type B
类型二
类型一
Filler module
假面板
Use three screws to secure a mounting bracket at the port side. For the LS-6800-54QT-H3, use
four screws.产品代码为LS-6800-54QT-H3的机型，挂耳安装在靠近端口侧时，使用四颗螺钉安装
挂耳。其它机型请使用三颗螺钉将挂耳安装在靠近端口侧。
Install the mounting brackets near the power
module side 挂耳安装到靠近电源侧
Install the mounting brackets near the port side
挂耳安装到靠近端口侧
