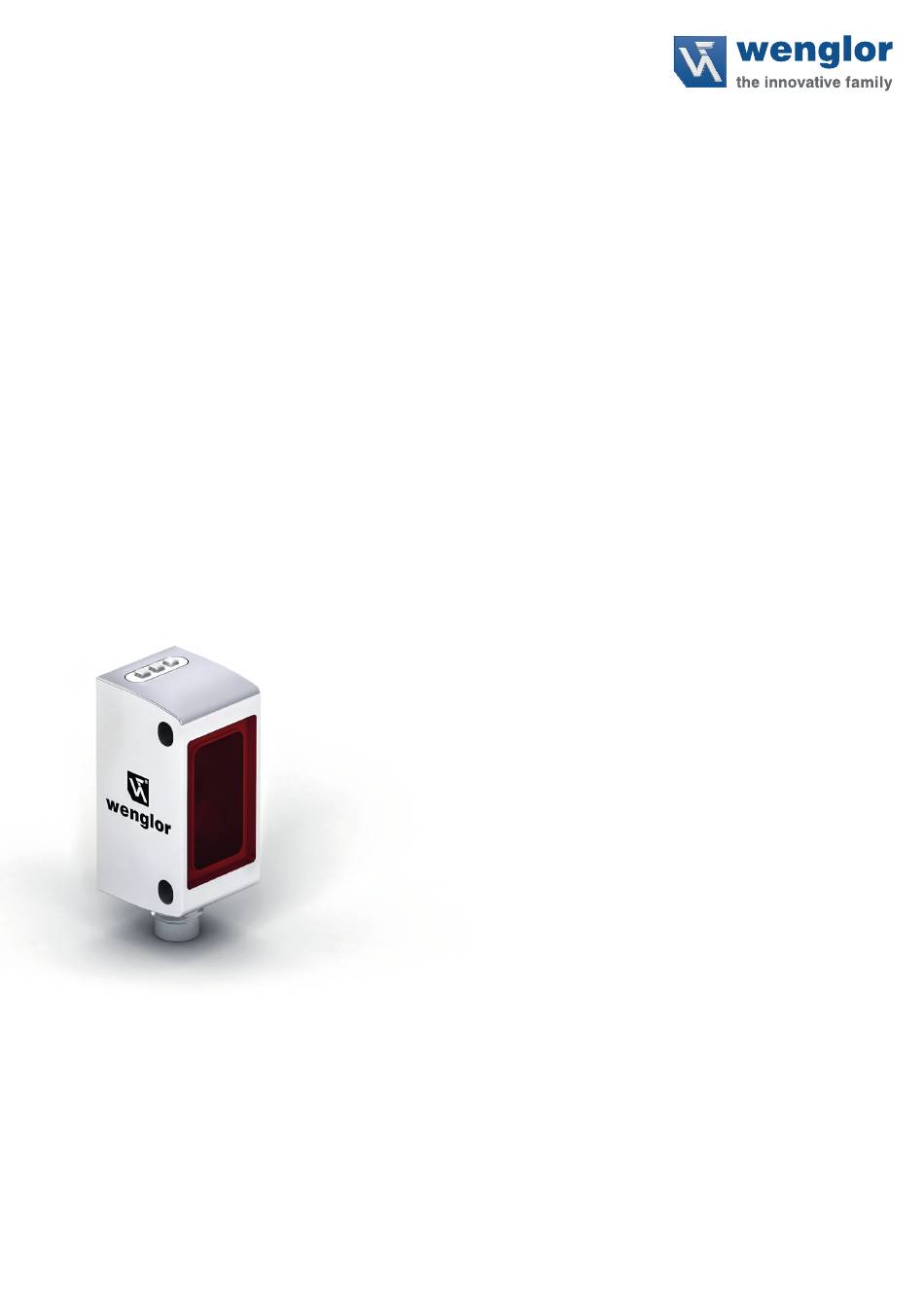

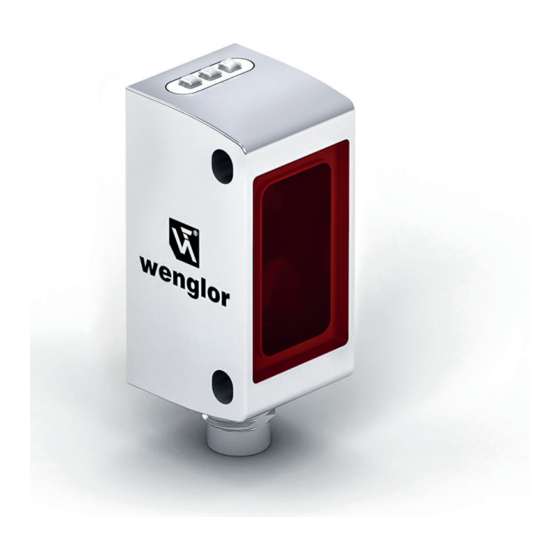

- Page 1 P2KHxxx Reflex Sensors with Background Suppression High-End with Teach-in Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 21.03.2023 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General �������������������������������������������������������������������������������������������������������������������������������������� 3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols ........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ...............................4 2. For Your Safety ������������������������������������������������������������������������������������������������������������������������ 5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose ....................5 2.3 Personnel Qualifications .........................6 2.4 Modification of Products ........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3� Technical Data Optical Data Service life (ambient temp. = +25 °C) 100000 h Max. permissible ambient light 10000 Lux Switching Hysteresis <10 % Electrical Data Supply power 15…30 V DC IO-Link supply voltage 18…30 V DC Temperature drift < 5 % Switching output voltage drop <... -
Page 8: Spot Diameter
3�1 Spot Diameter Range 30 mm 120 mm 200 mm Spot diameter 9 mm 7 mm 13 mm Table 1 Range 40 mm 80 mm 120 mm Spot diameter 2,5 mm 1,5 mm 1 mm Table 2 3�2 Switching Frequency / Response Time The switching frequency and the response time are depending on 2 settings: operating mode and switching outputs. -
Page 9: Complementary Products
3�3 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master EFBL001, EFBL003, EP0L001 wTeach2 software DNNF005 Software IO-Link Device Tool DNNF019 Hygienically designed screws BEF-SET-48 Reflex Sensors with Background Suppression High-End with Teach-in... -
Page 10: Layout
3�4 Layout P2KH016, P2KH024 P2KH017, P2KH031 = Emitter diode = Receiving diode Screw M3 = 0,5 Nm Plug M8×1 without snap-fit connection Dimensions specified in mm (1 mm = 0,03937 Inch) 3�5 Control Panel 5a = switching distance adjuster A1 6a = switching distance adjuster A2 06 = Teach Button 68 = supply power indicator... -
Page 11: Scope Of Delivery
3�6 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 46 4� Transport and Storage 4�1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 12: Installation And Electrical Connection
5� Installation and Electrical Connection 5�1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 13: Electrical Connection
5�2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Digital output MAX... -
Page 14: Diagnostics
5�3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 15: Settings
6� Settings The switching distance to the object can be taught in for both outputs by pressing the teach-in key on the sensor (default setting is foreground teach-in). Teach-In for Switching Output 1 1. Mount the sensor in accordance with the mounting instructions. 2. -
Page 16: Background Teach-In
7�1�2 Background Teach-In Teach-In is performed while the sensor spot is aligned to the background. The switching distance is then au- tomatically set to a distance which is slightly less than the clearance between the sensor and the background. The sensor is thus activated whenever an object is located between the background and the sensor. Sensor Teach-in distance Object... -
Page 17: Error Output
• Switch emitted light off • Test mode • Data storage 8� I/O-Link Process and parameters data, as well as the IODD, can be found at www.wenglor.com in the product’s sepa- rate download area. 9� Maintenance Instructions NOTE! • This wenglor sensor is maintenance-free. -
Page 18: Proper Disposal
Mean Time to Dangerous Failure 11�2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 21.03.23 Initial version of the operating instructions 11�3 Declarations of Conformity The declarations of conformity can be found on our website at www.wenglor.com in the product’s download area. Proper Disposal...
