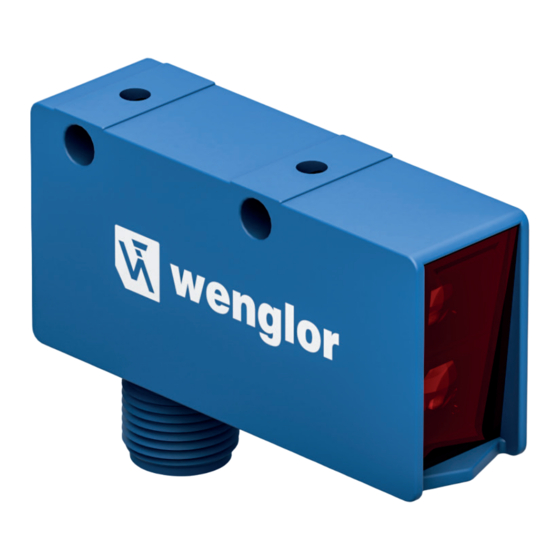

- Page 1 P1MHxxx Reflex Sensors with Background Suppression Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 13.01.2023 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose.................... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Service life (ambient temp. = +25 °C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data IO-Link supply voltage 18…30 V DC Switching output voltage drop < 2 V Switching output switching current 100 mA Switching output residual current <... -
Page 8: Spot Diameter
Order Number P1MH Technical Data Principle Electronical Background Suppression Range 200 mm Adjustable Range 40…200 mm 30…200 mm Swichting hysteresis < 5 % < 10 % Light Source Red Light Laser Laser Class (EN 60825-1) — Risk Group (EN 62471) —... -
Page 9: Switching Distance Deviation
3.1.2 Switching Distance Deviation P1MH101, P1MH103: P1MH201, P1MH204, P1MH202, P1MH205: Sr = Switching Distance dSr = Switching Distance Change Black 6 % remission Grey 18 % remission Reflex Sensors with Background Suppression... -
Page 10: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master wTeach2 software DNNF005 3.3 Layout = Emitter diode = Receiving diode Screw M4 = 0,5 Nm... -
Page 11: Control Panel
3.4 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 02 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. -
Page 12: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 13: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Supply Voltage (AC Voltage) Encoder B Test Input inverted Switching Output (NO) Digital output MIN Trigger Input Switching Output (NC) -
Page 14: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... - Page 15 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
-
Page 16: Settings
• Turn up the potentiometer up until activation occurs and, if required, turn it up a bit further for increased switching reliability. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. 8. Maintenance Instructions NOTE! •... -
Page 17: Appendix
10.2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 13.01.23 Initial version of the operating instructions 10.3 Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s download area. Reflex Sensors with Background Suppression...
