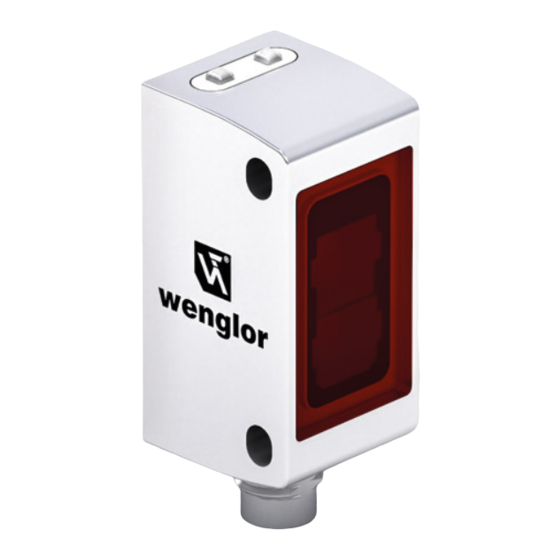

P2KLxxx
Universal Retro-Reflex Sensors
Operating Instructions
Translation of the Original Operating Instruction
Subject to change without notice
Available as PDF version only
Version: 1.0.0
Status: 04.08.2021
www.wenglor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P2KL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wenglor P2KL Series

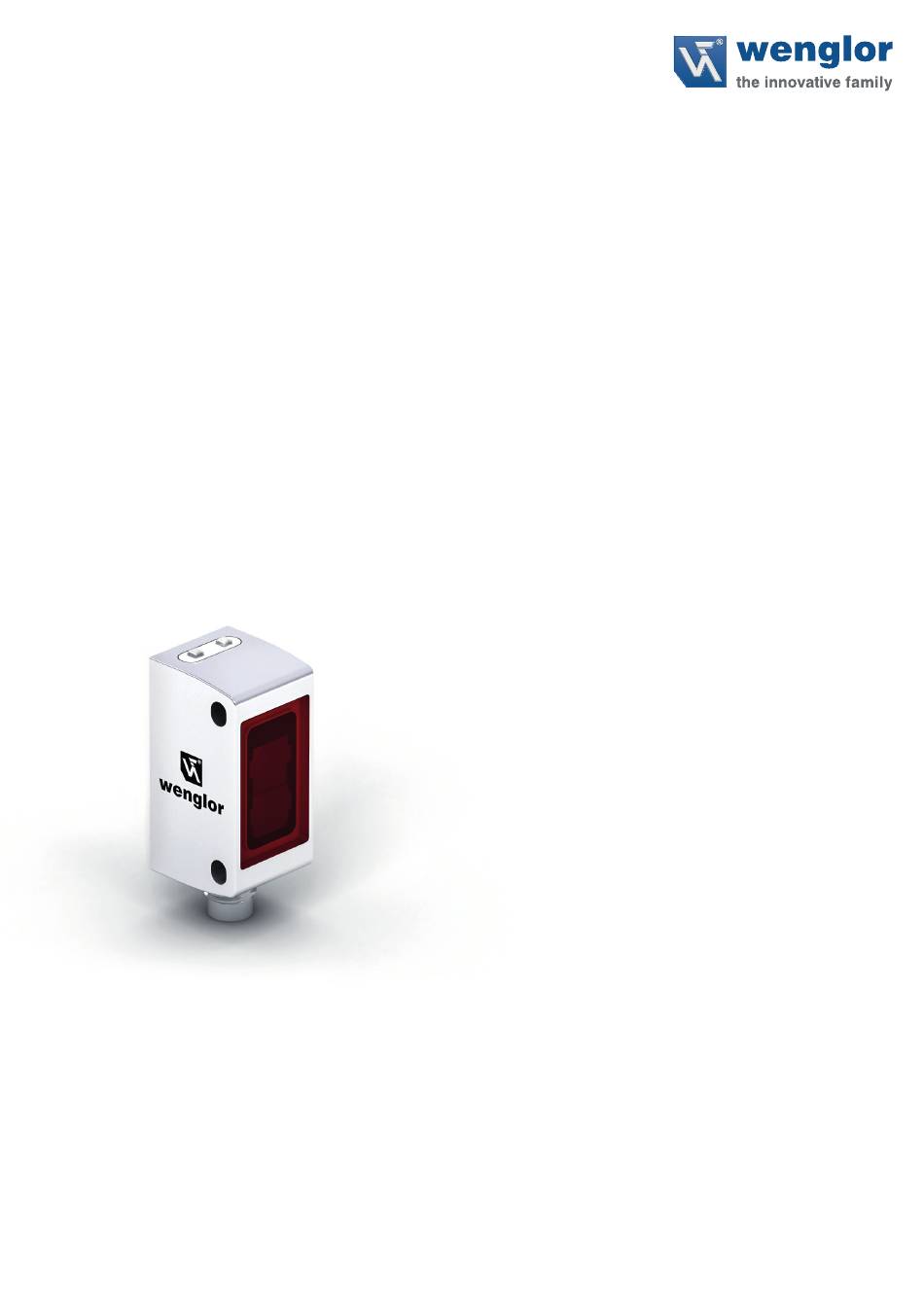

  • Page 1 P2KLxxx Universal Retro-Reflex Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 04.08.2021 www.wenglor.com...
  • Page 2: Table Of Contents

    Table of Contents 1. General ..........................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols .........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose....................5 2.3 Personnel Qualifications ..........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6...
  • Page 3: General

    • The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference.
  • Page 4: Limitation Of Liability

    • wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared.
  • Page 5: For Your Safety

    • The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page.
  • Page 6: Personnel Qualifications

    • In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product.
  • Page 7: Technical Data

    3. Technical Data 3.1 Technical Data Optical Data Polarisation Filter Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC Switching output voltage drop <...
  • Page 8: Spot Diameter

    Order Number P2KL Technical Data Range 5000 mm 12000 mm Light Source Red Light Laser (red) Opening Angle 4,5° 0,1° Switching hysteresis < 10 % < 15 % Laser Class (EN 60825-1) — Spot Diameter see Table 1 see Table 2 Smallest detectable part see Table 3 see Table 4...
  • Page 9: Switching Distance

    3.1.3 Switching distance Achievable switching distance depends on the utilized reflector. Nominal switching distance is achieved with reflector types RQ100BA (red light) and RE6151BM (laser). Achievable ranges for other reflectors are listed in the following tables: Red Light Laser Reflector Range Range RQ100BA...
  • Page 10: Complementary Products

    3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master EFBL001, EFBL003, EP0L001 wTeach2 software DNNF005 Software IO-Link Device Tool DNNF019 Hygienically designed screws BEF-SET-48 3.3 Layout...
  • Page 11: Control Panel

    3.4 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 46 Universal Retro-Reflex Sensors...
  • Page 12: Transport And Storage

    4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit.
  • Page 13: Electrical Connection

    5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Supply Voltage 0 V Encoder A Test Input Supply Voltage (AC Voltage) Encoder B Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output...
  • Page 14: Diagnostics

    5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •...
  • Page 15: Settings

    • Turn the potentiometer back if required (detection of small or transparent objects). • Move the object into the sensor’s working range and check for correct functioning. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Universal Retro-Reflex Sensors...
  • Page 16: Maintenance Instructions

    10.2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 04.08.21 Initial version of the operating instructions 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Maintenance Instructions...
  • Page 17 Universal Retro-Reflex Sensors...
