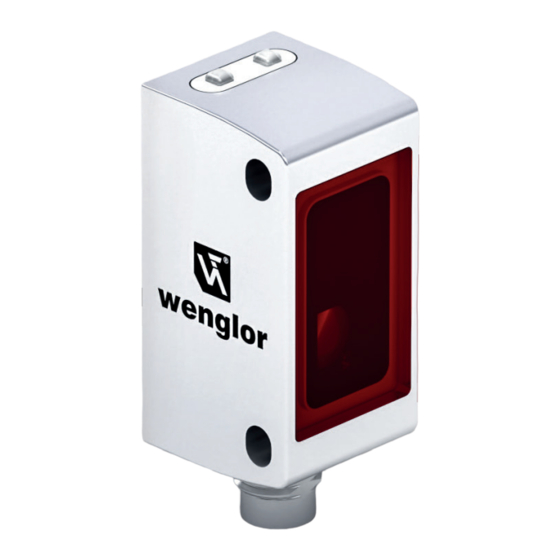

- Page 1 P2KKxxx Retro-Reflex Sensors for Transparent Objects Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version 1.0.1 Status: 09.05.2022 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose.................... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data P1KK Order Number Technical Data Optical Data Range 1,500 mm Reference reflector RQ100BA Clear glass recognition Switching hysteresis < 5 % Light source Red light Polarization filter Service life (ambient temp. = +25° C) 100,000 h Max. -
Page 8: Spot Diameter
3.1.1 Spot diameter Working Distance 0,2 m 1,5 m Spot diameter 20 mm 90 mm 130 mm Table 1 3.1.2 Smallest detectable part Distance, Sensor to Reflector 0,2 m 1,5 m Smallest detectable part 0,7 mm 6 mm 10 mm Table 2 3.1.3 Switching distance Achievable switching distance depends on the utilized reflector. -
Page 9: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master EFBL001, EFBL003, EP0L001 wTeach2 software DNNF005 Software IO-Link Device Tool DNNF019 Hygienically designed screws BEF-SET-48 3.3 Layout... -
Page 10: Control Panel
3.4 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 46 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. -
Page 11: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 12: Diagnostics
DANGER! Risk of personal injury or property damage due to electric current! Voltage conducting parts may cause personal injury or damage to equipment. • The electric device may only be connected by appropriately qualified personnel. 5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination... - Page 13 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
-
Page 14: Settings
• Continue to turn up the potentiometer until the LED no longer blinks. • Move the object into the light barrier and check for correct functioning. 7. I/O-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. 8. Maintenance Instructions NOTE! •... -
Page 15: Appendix
“3. Technical Data” on page 7, “3.1.3 Switching distance” on page 8 “3.3 Layout” on page 9 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Retro-Reflex Sensors for Transparent Objects...
