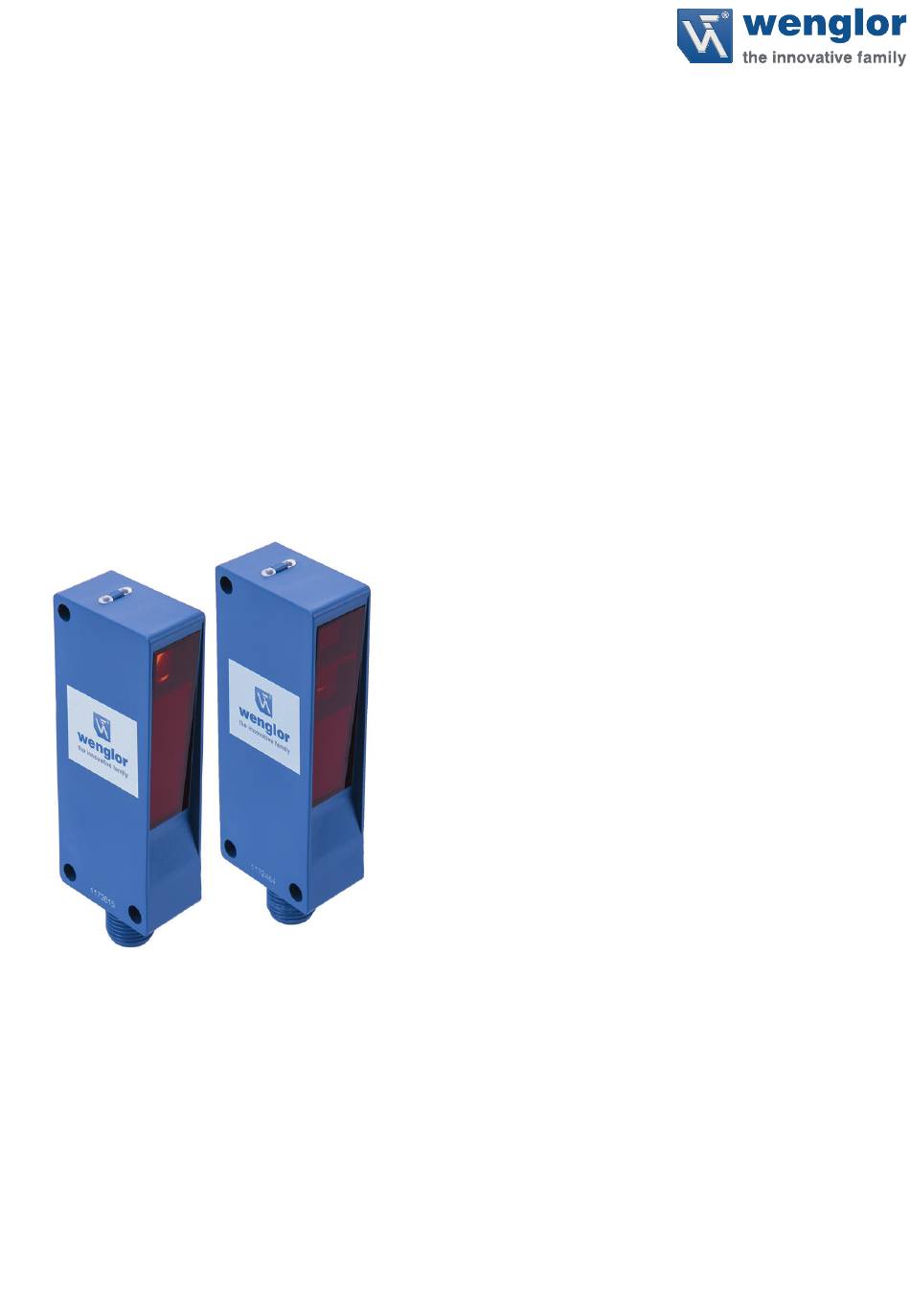

- Page 1 P1NExxx P1NSxxx Through-Beam Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 07.11.2018 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC Temperature drift < 10 % Temperature range −40…60 °C Switching output voltage drop... -
Page 8: Spot Diameter
Order Number P1NS P1NE Technical Data Sensor Type Emitter Reciever Range 20 m 60 m 20 m 60 m Light Source Red Light Switching hysteresis — < 10 % Spot Diameter see Tab. 1 s. Tab. 2 — — Smallest detectable part —... -
Page 9: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. IO-Link master wTeach2 software DNNF005 Protection Housing Set Z1NS001 STAUBTUBUS-03 3.3 Layout P1NE = Receiving diode = Alignment tool / switching status indicator... - Page 10 P1NS = Emitter diode Screw M4 = 0,5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0,03937 Inch) Technical Data...
-
Page 11: Control Panel
3.4 Control Panel Reciever Emitter 04 = Function indicator 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery • Sensor (emitter or reciever) • Safety precautions • Mounting-Set 01 Through-Beam Sensors... -
Page 12: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 13: Electrical Connection
5.2 Electrical Connection 1018 Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 14: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 15: Settings
If it is connected with plus, the sensor switches off. The barrier is tested via this changing of the switching status. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Through-Beam Sensors... -
Page 16: Maintenance Instructions
10.2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 07.11.18 Initial version of the operating instructions 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Maintenance Instructions... - Page 17 Through-Beam Sensors...
