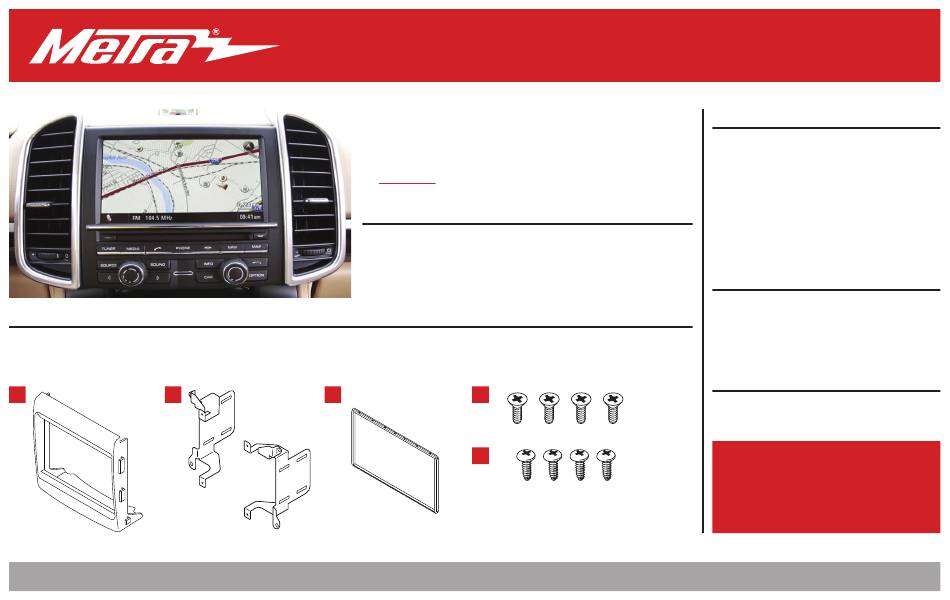

KIT COMPONENTS
• A) Radio bezel • B) Radio brackets • C) ISO DDIN trim ring • D) Phillips machine-thread screws (4) • E) Phillips standard-thread screws (4)
• F) Axxess interface (not shown) • G) Axxess SWC interface (not shown)
A
B
The World's Best Kits.
®
Porsche Cayenne
* For non-amplified vehicles with OEM parking sensors and graphics on vehicle screen
† Without amp
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DDIN radio provision
• Includes an Axxess interface for retaining CAN data information
• Includes an Axxess interface for retaining steering wheel control
functionality
• Painted matte black
C
MetraOnline.com
2011-2016
(958)*†
D
E
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
95-9611B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ..............................4-6
Final Assembly .......................................................7
User Guide .......................................................... 7-11
WIRING & ANTENNA CONNETIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Thin flat-blade screwdriver • T-27 Torx screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 08/19/20 INST95-9611B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 95-9611B and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 95-9611B

Summary of Contents for Metra Electronics 95-9611B

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 08/19/20 INST95-9611B...
  • Page 2 DASH DISASSEMBLY 1. Unclip, unplug and remove the center † a/c vents. There are (6) clips on each vent that secure it to the dash. To release the clips, insert a thin flat-blade screwdriver into the vents, then push on the clips outward. Release the outermost clips first.
  • Page 3 KIT ASSEMBLY Secure the radio brackets to the radio using screws supplied with the radio. (Figure A) Note: There are (4) Phillips machine- thread screws provided in case the radio doesn’t come with screws. 2. Place the radio bezel over the radio assembly, then secure using (4) Phillips standard-thread screws provided.
  • Page 4 AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power Connections ........................... 5 • Provides illumination, parking, brake, reverse, and speed sense outputs Installation ............................ 6 • Retains audio controls on the steering wheel Programming ..........................6 • Retains parking sensor audio User Guide ..........................7-11 †...

  • Page 5: Connections

    CONNECTIONS From the 9611 harness to the aftermarket radio, connect the: • Light Green wire to the parking brake wire. † • Yellow RCA jack to the Yellow RCA jack from the SWC harness labeled “To Reverse Camera” ‡ • Black wire to the ground wire. •...

  • Page 6: Installation

    INSTALLATION PROGRAMMING With the ignition switch in the off position, connect the: 1. Open the driver’s door and keep open during the programming process. 1. SWC harness to the SWC interface, then to the 9611 interface. 2. Press and hold the Volume Up button on the steering wheel. For models with a scroll wheel, scroll up quickly.

  • Page 7: User Guide

    FINAL ASSEMBLY USER GUIDE 1. Slide the radio assembly into the dash, then secure using the Steering Wheel Control Functionality factory screws. In Normal Mode In Infodapter Mode 2. Reassemble the dash in reverse order of disassembly to complete 1. Volume Up (Scroll Up) / Volume Down (Scroll Down) 1.
  • Page 8 USER GUIDE (CONT) Programmable Button * Infodapter Menu The diamond button on the steering wheel can be programmed Press and hold Button 1 to enter the Infodapter to perform a specific radio function within the Infodapter menus menu and navigate through the various options and on both a long and short press.
  • Page 9 USER GUIDE (CONT) Infodapter Menu (Cont) Language - Select language - (English/French/German/etc) Preferences - Camera Connected - (None/Generic/OEM) Version Choose the style of camera connected to the vehicle (if applicable) - View software version screen - Camera Active * - (OEM/Reverse) Choose if the camera image appears on the Continued on the next page display at times triggered by the Porsche...
  • Page 10 USER GUIDE (CONT) OEM Parking Sensor Graphics The Infodapter interface will automatically generate a replication of the OEM front/rear parking sensor graphics based on the vehicle’s data. These graphics have been designed to exactly replicate Porsche’s original as closely as possible to retain the OEM feel of the system.
  • Page 11 REV. 08/19/2020 INST95-9611B...
  • Page 12 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s Best Kits. metraonline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 08/19/20 INST95-9611B...
