Metra Electronics 107-GM5B Installation Instructions Manual

For cadillac srx2010-2012
Hide thumbs

Advertisement

Quick Links

Download this manual

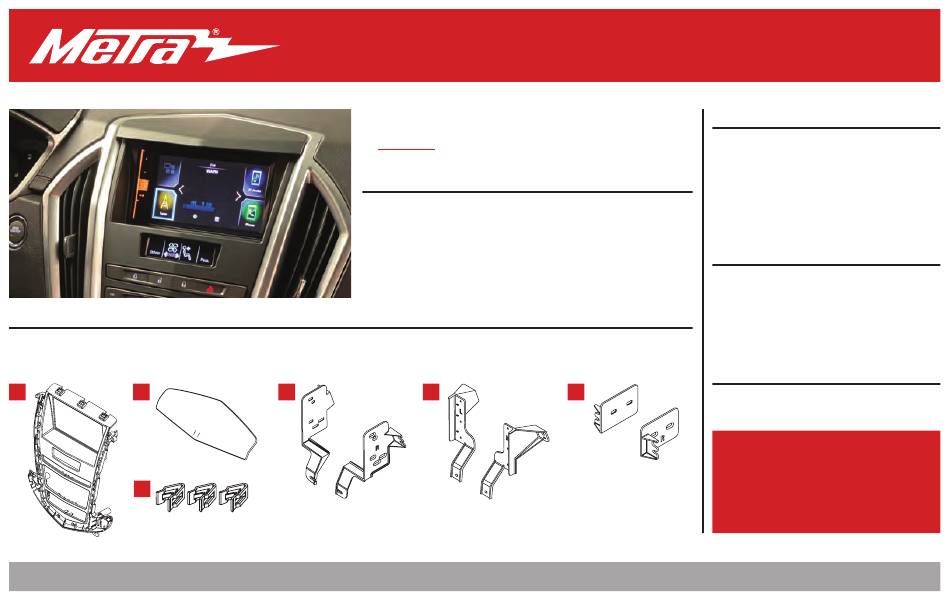

KIT COMPONENTS
• A) Center dash panel • B) Top trim panel • C) Radio brackets • D) Pioneer display brackets • E) Pioneer chassis brackets
• F) Three panel clips (top panel) • G) Interface and wiring (not shown)
A
B
F
Metra. The World's Best Kits.
®
Cadillac SRX
2010-2012
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
(See Interface Installation section for more features)
• Designed for most shallow mount aftermarket radios and Pioneer
modular radios DMH-C2550NEX and DMH-C2500NEX.
Note: See manufacturer for current models.
• Retains factory control panel and display of climate functions and
vehicle customization menus on the 107-GM5B OLED screen.
• Retains audio control on steering wheel and radio control buttons on
the factory control panel.
C
D
MetraOnline.com
E
© COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
107-GM5B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-6
Kit Assembly
–Shallow DDIN radio provision .............................7
–Pioneer modular DDIN radio provision .............8
Axxess Interface Installation ............................9-19
WIRING & ANTENNA CONNECTIONS
Wire harness: Axxess interface included
Antenna adapter: Included
Steering wheel control interface: Included
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • T-15 Torx screwdriver
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
REV. 12/21/21 INST107-GM5B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 107-GM5B and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 107-GM5B

Summary of Contents for Metra Electronics 107-GM5B

  • Page 1 WIRING & ANTENNA CONNECTIONS • Retains factory control panel and display of climate functions and vehicle customization menus on the 107-GM5B OLED screen. Wire harness: Axxess interface included • Retains audio control on steering wheel and radio control buttons on Antenna adapter: Included the factory control panel.
  • Page 2 DASH DISASSEMBLY 1. Using the panel removal tool, carefully 4. Remove (2) 9/32" screws securing the unclip and remove the trim panels lower portion of the control panel. fromboth sides of the center console. (Figure D) (Figure A) 5. Pull the pocket from the top to allow the 2.
  • Page 3 DASH DISASSEMBLY (CONT.) NAV Models Both NAV and Non-NAV 6. For NAV equipped models, motorize the 8. Using the panel removal tool, gently, screen up, unclip the left and right legs unclip and remove the control panel. securing the trim over the top of the (Figure G) motorized display screen, then lift up to 9.
  • Page 4 KIT PREPARATION From the factory control panel: From the factory control panel: NON-NAV NAV models 1. Unsnap the top trim panel from the 1. Remove (4) screws to remove the control panel. (above the screen) factory screen bezel. (Figure A) (Figure A) 2.
  • Page 5 KIT PREPARATION (CONT.) From the factory control panel: Both NAV and Non-NAV 4. Remove (6) Phillips screws securing the clock panel, unplug the connectors and remove the panel. (Figure D) 5. Remove (10) Phillips screws securing the control button panel, then unplug and remove the panel.
  • Page 6 KIT PREPARATION (CONT.) Dash Panel Assembly Remove shaded areas 7. Secure the 107-GM5B dash panel using (16) factory screws. (Figure G) 8. Cut off the top (2) mounting legs from the main factory climate buttons. (Figure H) 9. Secure the main factory climate buttons using (8) factory screws.
  • Page 7 KIT ASSEMBLY ISO DDIN radio provision 1. Secure the radio brackets to the radio using (4) screws supplied with the radio. (Figure A) 2. Reconnect the negative battery terminal and prepare for Axxess interface installation. Continue to Axxess Interface Installation (Figure A) REV.
  • Page 8 KIT ASSEMBLY Pioneer Modular DDIN radio provision 3. Using the factory screws, secure the display screen assembly to the dash Note: For steps 1 and 2, reference the where the factory display was located. installation manual provided with the radio (Figure B) for which hardware to use.
  • Page 9 TABLE OF CONTENTS INTERFACE FEATURES • Retains factory control panel and display of climate functions and vehicle customization Connections ..........................10-11 menus on the 107-GM5B OLED screen. Programming ...........................12-13 • Provides accessory power (12-volt 10-amp) Steering wheel control settings ....................14-18 • Maintains the Retained Accessory Power (R.A.P.) feature Final assembly ..........................19...

  • Page 10: Connections

    CONNECTIONS For models without an amplifier: • Purple/Black wire to the right rear (-) speaker output. From the 16-pin harness with stripped leads to the aftermarket radio, connect as indicated: • Blue/Pink wire to the VSS/speed sense wire. • Red wire to the accessory wire. •...
  • Page 11 ASWC PROGRAMMING CONNECTIONS (CONT.) (SOLD SEPARATELY) For models with an amplifier: From the 16-pin harness with stripped leads to the aftermarket radio, connect as indicated: • Green/Black wire to the left rear (-) speaker output. • Red wire to the accessory wire. •...

  • Page 12: Programming

    PROGRAMMING With the key in the off position: • After several seconds the L.E.D. will turn on solid Red while the interface auto detects the vehicle. The radio will shut off at this point. This process should take (5 to 30) seconds. 1.
  • Page 13 PROGRAMMING (CONT.) OnStar level adjustment: • Press the OnStar button to activate it. • While OnStar is speaking, press the VOLUME-UP or VOLUME-DOWN button on the steering wheel to raise or lower the OnStar level. • If the vehicle doesn’t come equipped with steering wheel controls, locate the Black/Yellow wire on the car side harness.

  • Page 14: Steering Wheel Control Settings

    STEERING WHEEL CONTROL SETTINGS L.E.D. Feedback: The (23) Red L.E.D. flashes L.E.D. Feedback Legend represent a different radio manufacturer for Flash Count Radio Flash Count Radio the AXSWC interface to detect. For example, Eclipse (type 1) † if you are installing a JVC radio, the AXSWC Kenwood ‡...
  • Page 15 STEERING WHEEL CONTROL SETTINGS (CONT.) Changing Radio Type Flash Count Radio Legend 1. If the LED flashes do not match the number of the aftermarket, radio, the radio will have to 1. Eclipse (type 1) be manually programmed. 2. Kenwood 3.
  • Page 16 STEERING WHEEL CONTROL SETTINGS (CONT.) Dual assignment instructions (long button press) Dual assignment legend The interface has the capability to assign (2) functions to a single button, except Volume- 1. Not allowed 10. Band Up and Volume-Down. Follow the steps below to program the button(s) to your preference. 2.
  • Page 17 STEERING WHEEL CONTROL SETTINGS (CONT.) Remapping the steering wheel control buttons Button assignment legend The interface makes it possible to change the button assignments on the steering wheel. For 1. Volume-Up 10. Band example, the Seek-Up button could be reassigned as the Mute button. Follow the steps below to 2.
  • Page 18 STEERING WHEEL CONTROL SETTINGS (CONT.) The factory vehicle customization menu is visible on the Metra 107-GM5B screen with use of the factory Center stack buttons. Some buttons also double as additional radio controls (just like the steering wheel controls). Factory buttons on Non NAV models: Seek >>...

  • Page 19: Final Assembly

    FINAL ASSEMBLY 1. Using the factory screws, secure the radio/bracket assembly to the dash where the factory display was located. (Figure A) 2. Using the factory screws, secure the Pioneer Modular DDIN assembly to the dash where the factory chassis was located. (Figure B) 3.
