Metra Electronics 99-5840CH Installation Instructions Manual

Ford mustang(with 8” touchscreen) 2015-2017
Hide thumbs

Advertisement

Quick Links

Download this manual

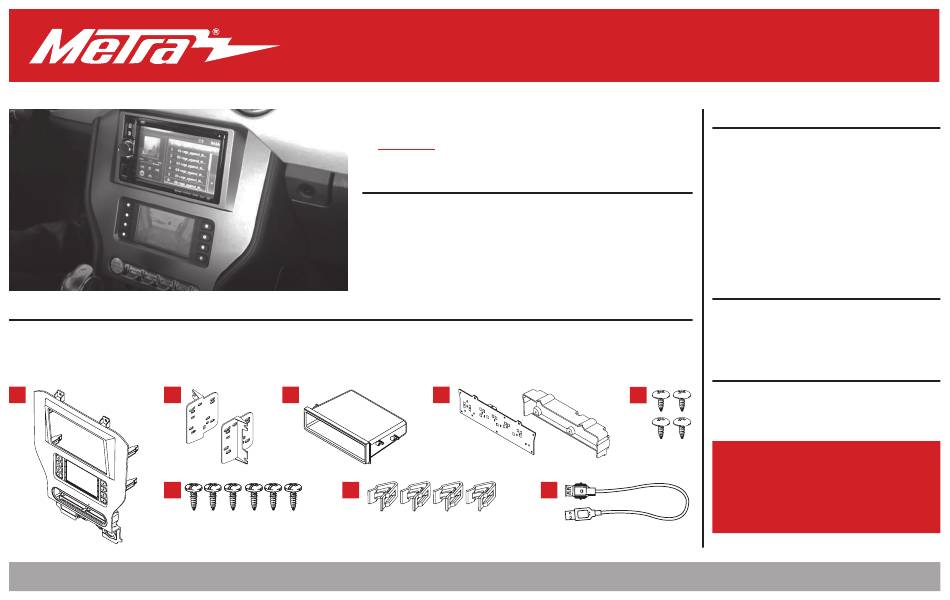

KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) Engine start/stop circuit board and cover
• E) (4) #8 x 3/8" Phillips truss-head screws • F) (6) #4 x 1/2" Phillips pan-head screws • G) (4) Panel clips • H) USB cable
• I) HVAC interface and wiring harness (not shown) • J) Antenna adapter (not shown)
A
B
F
Metra. The World's Best Kits.
®
Ford Mustang
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Painted charcoal
C
D
G
MetraOnline.com
2015-2017
(with 8" touchscreen)
E
H
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
99-5840CH
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................6
Axxess Interface installation .............................7-15
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • Cutting tool
• Torx T-10 screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 4/16/19 INST99-5840CH

Advertisement

loading
Need help?

Need help?

Do you have a question about the 99-5840CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-5840CH

Summary of Contents for Metra Electronics 99-5840CH

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-5840CH...
  • Page 2 DASH DISASSEMBLY 1. Open the passenger door and remove 4. Remove the rubber tray cover in front the trim panel from the side of the dash. of the shifter, and then remove the (2) (Figure A) 9/32” screws exposed. (Figure D) 2.
  • Page 3 DASH DISASSEMBLY (CONT.) 7. Unclip the shifter trim bezel and slightly Ensure that the vehicle is completely (4.2” screen shown for illustration only) pull it up to clear the center console trim off before proceeding onto the following (3) steps: bezel removal.
  • Page 4 KIT PREPARATION 1. Cut and remove the shaded area from 4. Remove the rubber button membrane the sub-dash to allow clearance for the from the back of the engine start/stop aftermarket radio. (Figure A) switch panel. (Figure D) From the factory radio/climate control panel: 5.
  • Page 5 KIT PREPARATION (CONT.) To the 99-5840CH radio trim panel: 9. Insert the USB cable into the USB slot, through the rear. (Figure I) 7. Attach the engine start/stop switch panel, and then the rubber button 10. Attach the (4) panel clips provided.
  • Page 6 KIT ASSEMBLY ISO DIN radio provision with pocket ISO DDIN radio provision 1. Secure the radio brackets to the pocket 1. Secure the radio brackets to the radio using the (4) #8 x 3/8” Phillips truss-head using the screws supplied with the screws provided.

  • Page 7: Table Of Contents

    AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS Connections ..........................8-9 • Provides accessory power (12-volt 10-amp) Installation ..........................10 • Retains R.A.P. (retained accessory power) Programming ..........................11 • Provides NAV outputs (parking brake, reverse, speed sense) Touchscreen display operation ....................12-13 •...

  • Page 8: Connections

    CONNECTIONS From the 16-pin harness with stripped leads to the aftermarket radio: From the 5840 harness to the aftermarket radio: • Connect the Red wire to the accessory wire. • Connect the Black wire to the ground wire. • Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear •...
  • Page 9 CONNECTIONS (CONT) 3.5mm jack - steering wheel control retention: 54-pin backup camera harness: The 3.5mm jack is to be used to retain audio controls on the steering wheel control. There are two different methods for connecting the factory backup camera. •...

  • Page 10: Installation

    INSTALLATION It is highly advisable to read the following steps beforehand, to ensure a clear understanding of HVAC interface what is to be expected. The following steps must be done in the order that they are numbered. 6. Connect the HVAC interface harness into the HVAC interface, and then to the With the vehicle completely off: wiring harnesses in the vehicle.

  • Page 11: Programming

    PROGRAMMING FINAL ASSEMBLY 1. Refer to step 2 from the Installation section. 1. Connect the USB cable attached to the radio trim panel with touchscreen display, to the USB port in the back of the radio, if applicable. 2. Press the push-to-start button to start the vehicle. 2.

  • Page 12: Touchscreen Display Operation

    TOUCHSCREEN DISPLAY OPERATION Climate Control screen • This is the climate control screen which will be displayed on the touchscreen display. This is considered the Main Menu. • The upper left tab with (3) arrows will take you to the screen where the Heated/Cooled Seats and Heated Steering are now placed, if applicable.
  • Page 13 TOUCHSCREEN DISPLAY OPERATION (CONT.) Configuration Settings • Backlight • Steering Wheel Controls • Remap Buttons – For remapping the steering wheel control buttons • For controlling the color of the buttons and back-light intensity. • Dual Assign – For dual assigning the steering wheel control buttons (long button press) •...

  • Page 14: Steering Wheel Control Settings

    STEERING WHEEL CONTROL SETTINGS Remap Buttons Dual Assign • The interface has the ability to change the button assignment for the steering wheel • The interface has the capability to assign two functions to a single button, except control audio buttons, except Volume-Up and Volume-Down. Follow the prompts on the Volume-Up and Volume-Down.

  • Page 15: Troubleshooting

    STEERING WHEEL CONTROL SETTINGS (CONT.) Select Radio * Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm jack is connected to the correct steering wheel jack/wire in the radio.
  • Page 16 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 4/16/19 INST99-5840CH...
