Metra Electronics 108-FD3B Installation Instructions Manual

For f-150 (with cd player, w/o color screen) 2013-2014, f-150 xl (with cd player) 2009-2013, f-150 xlt (with single row of 3 buttons, w/o nav) 2009-2012

Hide thumbs

page of 16

/ 16
Bookmarks

Available languages

Quick Links

Download this manual

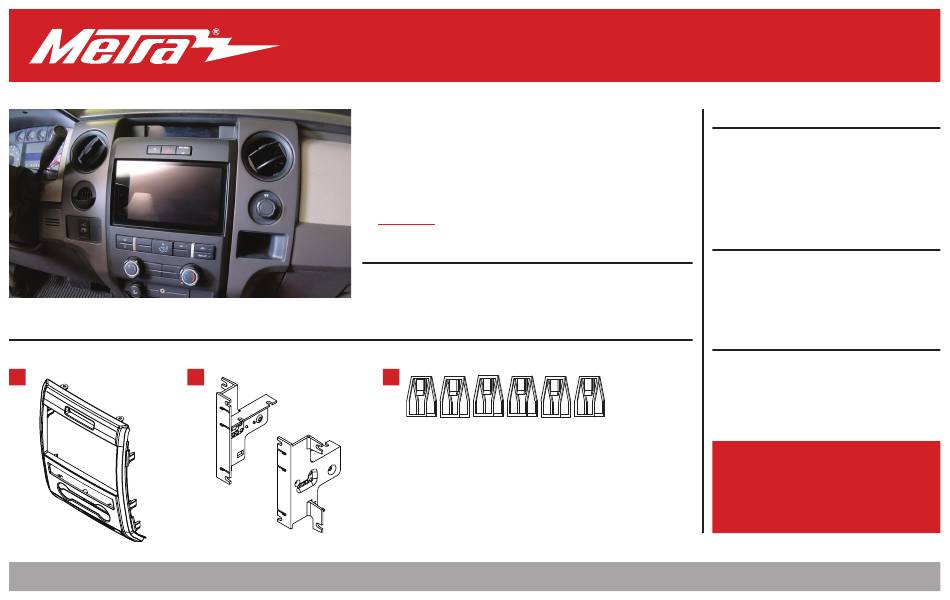

KIT COMPONENTS

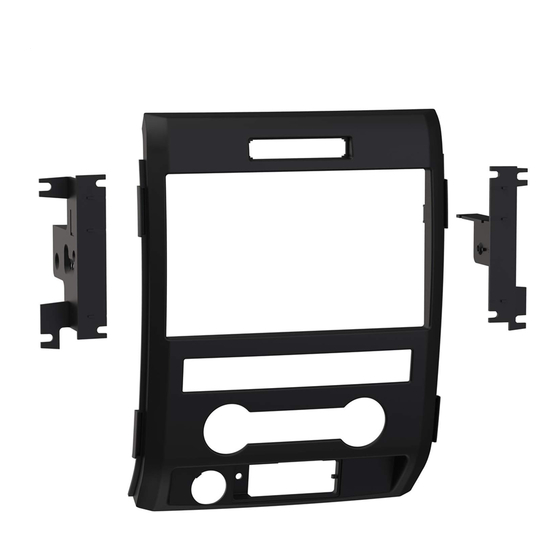

• A) Radio trim panel • B) Radio brackets • C) Panel clips (6)

Metra. The World's Best Kits.

Ford

F-150

F-150 XL

F-150 XLT

Visit

specific applications

KIT FEATURES

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio

• Includes provisions for the factory hazard switch, airbag light, and

• Painted scratch resistant matte black

MetraOnline.com

(with CD player, w/o color screen)

2009-2013

(with CD player)

(with single row of 3 buttons, w/o NAV)

MetraOnline.com

for more detailed information about the product and up-to-date vehicle

cigarette lighter

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

2013-2014

Dash Disassembly ..................................................2

Kit Preparation ................................................... 3-4

Kit Assembly ..........................................................5

2009-2012

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: XSVI-5521-NAV

Antenna Adapter: 40-CR10

TOOLS REQUIRED

• Phillips screwdriver • 9/32" socket wrench

• Torx screwdriver • Panel removal tool

Attention!

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

108-FD3B

Patent Pending

Let the vehicle sit with the key

REV. 8/28/19 INST108-FD3B

Need help?

Do you have a question about the 108-FD3B and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 108-FD3B

Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-FD3B...
Page 2 DASH DISASSEMBLY 1. Unclip and remove the switch panel to 3. Unclip the a/c vent panels to the left and the right of the cigarette lighter, then right of the climate/radio panel and set remove (1) 9/32” screw exposed. aside. (Figure C) (Figure A) 4.
Page 3 KIT PREPARATION From the factory climate/radio panel: 1. Unclip and remove the hazard/airbag switch assembly from the factory radio trim panel. (Figure A) 2. Unclip and remove the cigarette lighter socket from the radio trim panel. (Figure B) 3. Remove (4) Torx screws securing the factory climate control to the radio trim panel.
Page 4 KIT PREPARATION (CONT.) To the 108-FD3B radio trim panel: 6. Secure the climate control to the panel using the factory screws. (Figure F) 4. Clip the hazard/airbag switch assembly into the panel. (Figure D) 7. Attach (6) panel clips provided to the panel.
Page 5 KIT ASSEMBLY Note: For steps 1 and 2, reference the installation manual provided with the radio for which hardware to use. The display screen and radio chassis use two different types of screws. 1. Secure the radio brackets to the radio chassis using (4) screws supplied with the radio.
Page 6 1.800.221.0932 MetraOnline.com...
Page 7 REV. 8/28/2019 INST108-FD3B...
Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-FD3B...
Page 9 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-FD3B...
Page 10 DESMONTAJE DEL TABLERO 1. Desenganche y quite el panel 3. Suelte los paneles de ventilación del de interruptores a la derecha del aire acondicionado a la izquierda y la encendedor de cigarrillos y luego quite derecha del panel de clima/radio y el tornillo de 9/32”...
Page 11 PREPARACIÓN DEL KIT Desde el panel de clima/radio de fábrica: 1. Suelte y retire el conjunto de interruptor de peligro / airbag del panel de ajuste de radio de fábrica. (Figura A) 2. Desenganche y retire el enchufe del encendedor de cigarrillos del panel de la radio.
Page 12 PREPARACIÓN DEL KIT (CONT.) Para el panel de ajuste de radio 95-5820: 6. Fije el control del clima al panel usando los tornillos de fábrica. (Figura F) 4. Sujete el conjunto del interruptor de peligro / airbag en el panel. (Figura D) 7.
Page 13 ENSAMBLE DEL KIT Nota: Para los pasos 1 y 2, consulte el manual de instalación provisto con la radio para saber qué hardware usar. La pantalla de visualización y el chasis de radio utilizan dos tipos diferentes de tornillos. 1. Deslice el chasis de la radio entre los soportes de la radio, luego asegúrelo con los (4) tornillos suministrados con la radio.
Page 14 1.800.221.0932 MetraOnline.com...
Page 15 REV. 8/28/2019 INST108-FD3B...
Page 16 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-FD3B...
