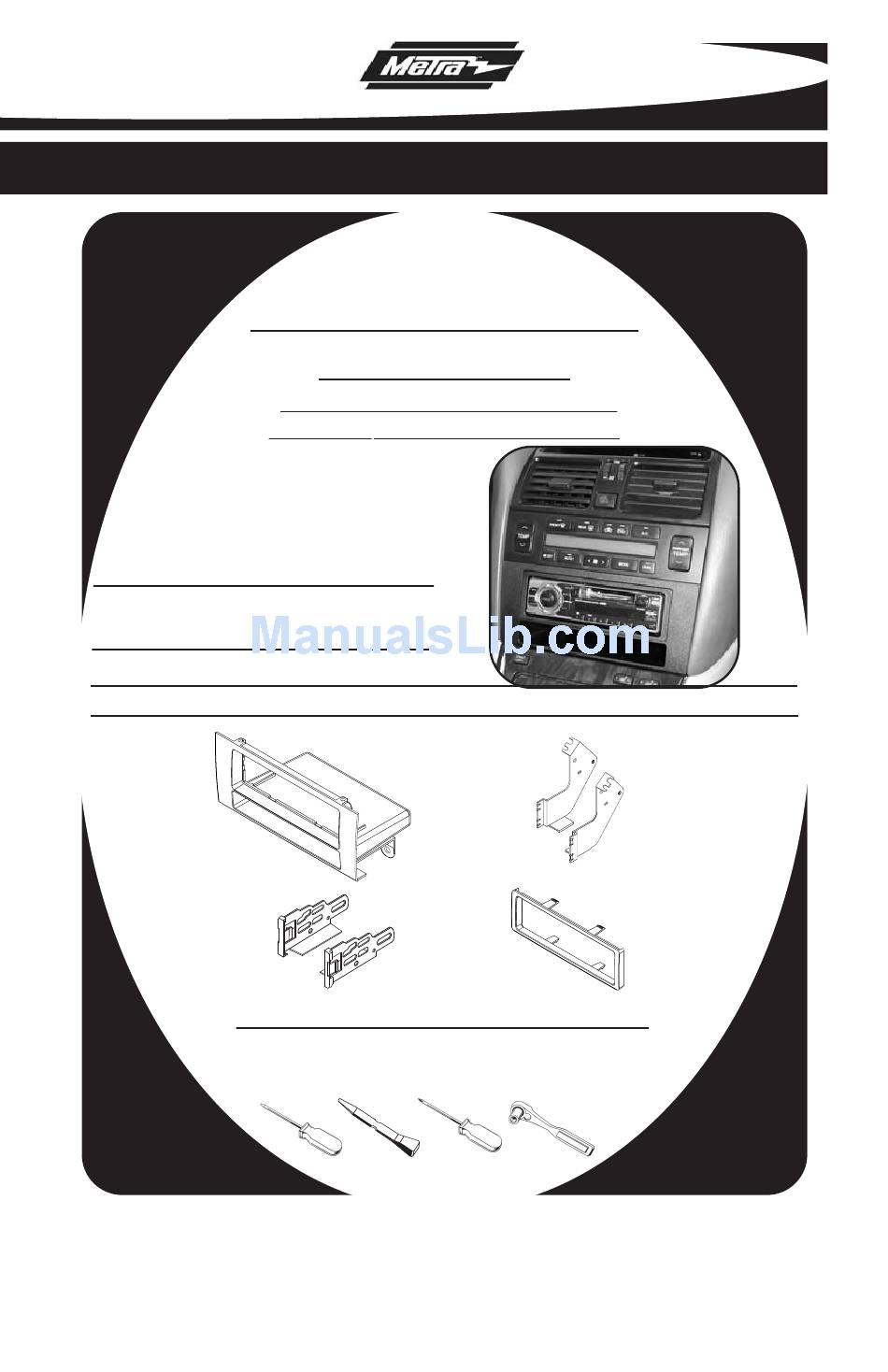

INSTALLATION INSTRUCTIONS FOR PART 99-8153
APPLICATIONS
LEXUS LS SERIES
1995-2000
NOT FOR USE IN VEHICLES
WITH FACTORY NAVIGATION
99-8153
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) Trim Plate
B
A
D
C
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-8153
Summary of Contents for Metra Electronics 99-8153
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8153 APPLICATIONS LEXUS LS SERIES 1995-2000 NOT FOR USE IN VEHICLES WITH FACTORY NAVIGATION 99-8153 KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) Trim Plate...
- Page 2 99-8153 DASH DISASSEMBL Y LEXUS LS SERIES 1995-2000 isconnect the negative battery ter- minal to prevent an accidental short circuit. Starting at rear of panel surrounding the shifter carefully pry up and out to remove entire panel including ashtray. (Figure A)
- Page 3 99-8153 until side clips engage. (Figure A) Slide the factory climate controls into the 99-8153 aligning holes in top of kit with alignment pins in the bottom of the climate controls and secure using the factory hardware. (Figure B)
- Page 4 99-8153 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place.
- Page 5 99-8153 KIT ASSEMBL Y ISO MOUNT RADIO PROVISION WITH POCKET Note: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio with the screws supplied with the radio. (Figure A) Slide the radio into the radio housing until it snaps into place.
- Page 6 99-8153 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.)
