Metra Electronics 95-9323B Installation Instructions Manual

Bmw x1 (with idrive, without most amp)
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

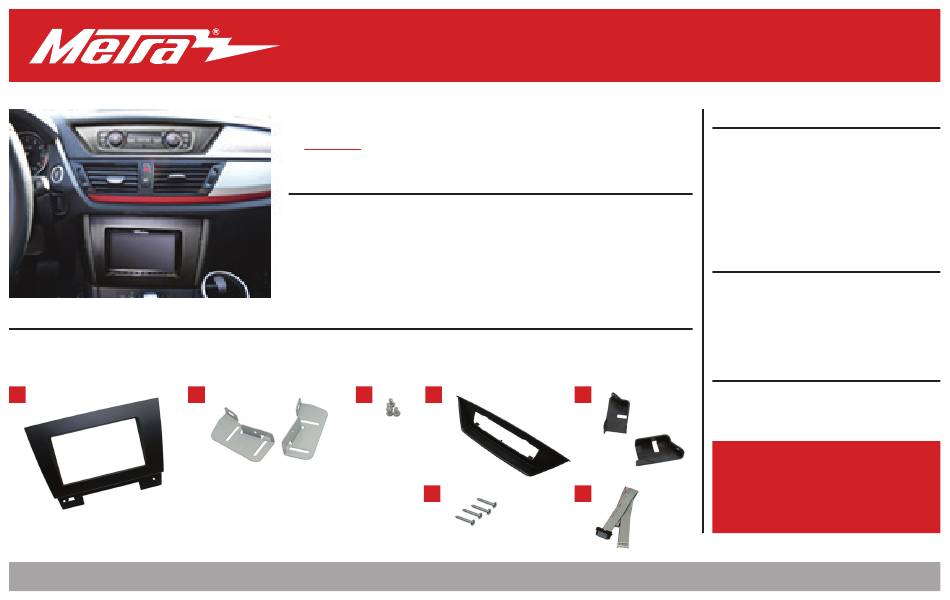

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) (4) Radio screws (short) • D) Climate control trim panel • E) Climate control brackets
• F) (4) Climate control screws (long) • G) Climate control extension harness • H) ASWC-1 interface and wiring harness (not shown)
A
Metra. The World's Best Kits.
®
BMW X1
(with iDrive, without MOST
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle specific applications
KIT FEATURES
• ISO DDIN radio provision
• Includes all necessary data interfaces, wiring harnesses,
and antenna adapter, for a complete installation
• Includes components necessary to relocate the factory climate control
• Painted black to match the factory dash
B
C
MetraOnline.com
2013-2015
Amp)
®
D
E
F
G
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
95-9323B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................3
Axxess Interface Installation .................................4
Final Assembly .......................................................7
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool • 3mm Allen screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 2/5/19 INST95-9323B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 95-9323B and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 95-9323B

Summary of Contents for Metra Electronics 95-9323B

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 2/5/19 INST95-9323B...

  • Page 2: Dash Disassembly

    DASH DISASSEMBLY Radio Removal Pocket Removal 1. Unclip the trim panel surrounding the gear 4. Unclip, unplug, and remove the a/c vent shifter, then set to the side. (Figure A) trim panel above the radio. Remove (2) screws exposed. (Figure D & E) 2.

  • Page 3: Kit Preparation

    KIT PREPARATION KIT ASSEMBLY Climate Control Relocation Sub-Dash Modification 1. Secure the radio brackets to the radio using either the screws supplied with 1. In one motion, attach the climate control 4. Cut the sub-dash to allow room for the the radio, or the radio screws provided.

  • Page 4: Axxess Interface Installation

    AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Provides accessory power Connections ..............................5 Installation ...............................6 • Provides NAV outputs (parking brake, reverse, speed sense) Programming ............................6-7 • Retains audio/phone† controls on the steering wheel • Retains chimes • Retains balance and fade •...

  • Page 5: Connections

    CONNECTIONS From the 9323 harness to the aftermarket radio: From the ASWC-1 harness to the aftermarket radio: This harness is to be used if the vehicle is equipped with steering wheel controls. • Connect the Black wire to the ground wire. •...

  • Page 6: Installation

    INSTALLATION PROGRAMMING With the key in the off position: 1. Press and hold the Volume Up button on the steering wheel. 1. Zip tie the chime speaker under the dash to a location where it will be heard clearly by the 2.

  • Page 7: Final Assembly

    PROGRAMMING FINAL ASSEMBLY (CONT) L.E.D. Feedback 1. Secure the radio assembly to the dash using the factory screws. The (18) Red L.E.D. flashes represent the brand of radio the ASWC-1 interface believes it is 2. Clip the radio trim panel to the dash. connected to.
  • Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 2/5/19 INST95-9323B...
