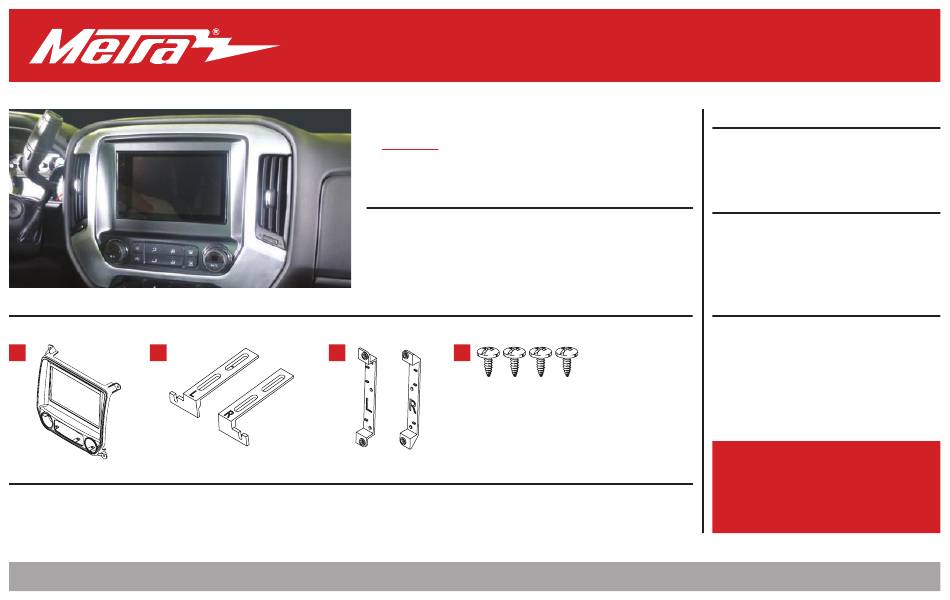

KIT COMPONENTS

• A) Radio trim panel • B) Radio chassis brackets • C) Radio display brackets • D) Phillips screws (4)

APPLICATIONS

Chevrolet

Silverado 1500.................2014-2018

Silverado 1500 LD.....................2019

Silverado 2500/3500..........2015-up

Metra. The World's Best Kits.

Chevrolet Silverado / GMC Sierra

Visit

MetraOnline.com

for more detailed information about the product and up-to-date

vehicle specific applications

KIT FEATURES

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio

• Painted gunmetal gray

GMC

Sierra 1500.......................2014-2018

Sierra 2500/3500................2015-up

MetraOnline.com

2014-up

Sierra 1500 Limited...................2019

108-GM1G

I N S TA L L AT I O N I N S T R U C T I O N S

Patent Pending

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Please visit metraonline.com

for wiring harness options

Antenna Adapter: 40-EU55

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench • Cutting tool

Attention!

Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

REV. 10/15/19 INST108-GM1G

Need help?

Do you have a question about the 108-GM1G and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 108-GM1G

Page 1 Silverado 1500....2014-2018 Silverado 1500 LD.....2019 Sierra 1500.......2014-2018 Sierra 1500 Limited....2019 equipment is connected before cycling the key to ignition. Silverado 2500/3500..2015-up Sierra 2500/3500....2015-up Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/15/19 INST108-GM1G...
Page 2 DASH DISASSEMBLY 1. Unclip and remove the trim panel 3. Remove (2) 9/32” screws securing the surrounding the radio/climate control CD player. Slide the CD player out, then panel. (Figure A) unplug and remove the CD player. (Figure C) 2. Remove (4) 9/32” screws securing the 4.
Page 3 KIT ASSEMBLY Note: For steps 1 and 2, reference the 5. Locate the factory wiring harness and installation manual provided with the radio antenna connector in the dash. Metra for which hardware to use. The display recommends using the proper mating screen and radio chassis use two different adapter from Metra or AXXESS.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/15/19 INST108-GM1G...
Page 5 Silverado 1500 LD.....2019 Sierra 1500 Limited....2019 de encendido ni con el vehículo funcionando. Silverado 2500/3500..2015 y mas Sierra 2500/3500...2015 y mas Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/15/19 INST108-GM1G...
Page 6 DESMONTAJE DEL TABLERO 1. Desenganche y quite el panel de 3. Quite los (2) tornillos de 9/32” que moldura que rodea el panel del radio/ sujetan el reproductor de CD y luego control del clima. (Figura A) desconecte y quite el reproductor. (Figura C) 2.
Page 7 ENSAMBLE DEL KIT Nota: Para los pasos 1 y 2, consulte el manual 5. Ubique el arnés de cableado de fábrica de instalación provisto con la radio para y el conector de la antena en el tablero. saber qué hardware usar. La pantalla de Metra recomienda el uso de adaptadores visualización y el chasis de radio utilizan dos adecuados de acoplamiento de Metra y/o...
Page 8 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda MECP Técnicos certificados Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/15/19 INST108-GM1G...
