Summary of Contents for Osram BY-P05

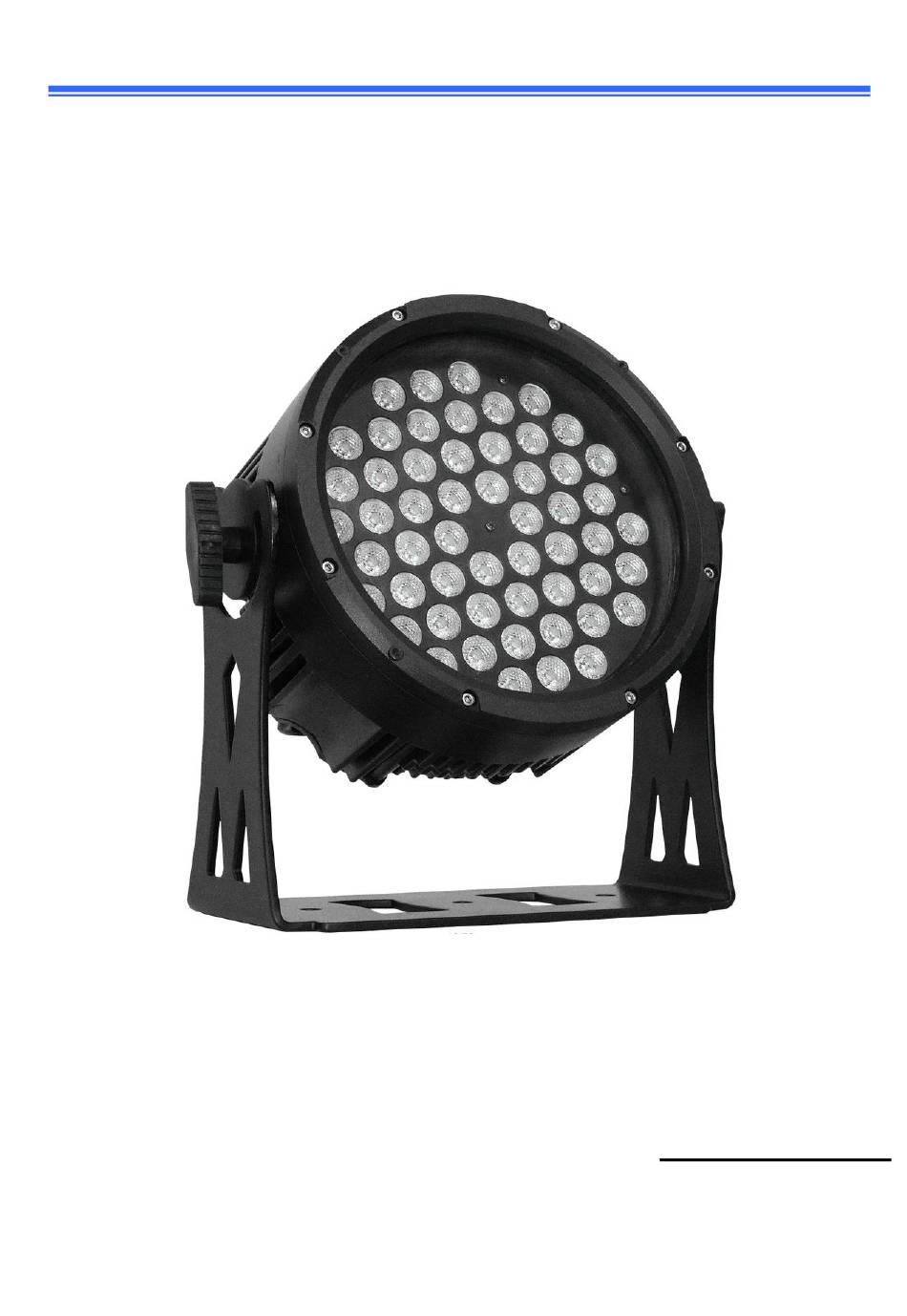

- Page 1 BY-P05 54*3W RGBW waterproof par User manual Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions....................2-4 2. Technical Specifications...................4 3. How To Control The Unit................... 5-7 4. Trouble shooting....................7-8 5. Fixture Cleaning......................8 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,...
- Page 3 Make sure there are no flammable materials close to the unit while operating as it is fire hazard. Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its base. ...
- Page 4 Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
- Page 5 3. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal Display: [MENU] menu selection or return to previous menu.
- Page 6 Display panel operation instruction Show Function Value Instruction 8CH mode UP, DOWN A001 DMX address 001~512 increase or reduce the value 4CH mode,UP,DOWN increase or reduce d001 DMX address 001~512 the value, r255 Red dim 000~255 UP, DOWN Change brightness G255 Green dim 000~255...
- Page 7 DMX channel´s functions and values (8 DMX channels): Channel Function Instruction Total Dimmer Total Dimmer- Dark to Bright Red Dimmer- Dark to Bright R Dimmer Green Dimmer- Dark to Bright G Dimmer B Dimmer Blue Dimmer- Dark to Bright W Dimmer White Dimmer- Dark to Bright Total Flash Strobe- Slow to Fast Total Strobe...
- Page 8 properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4.
