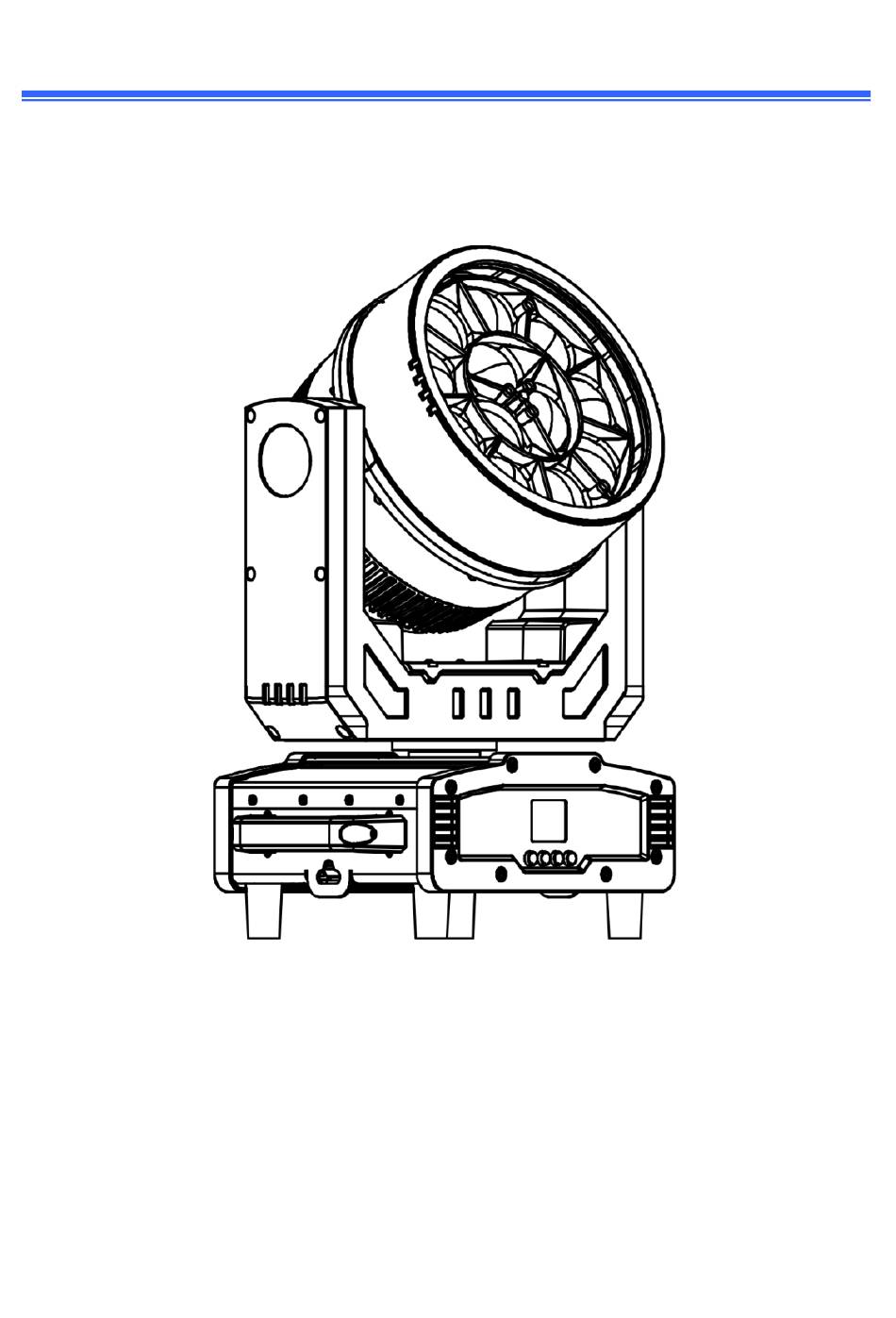

  • Page 1 1240BW IP 65 12*40w Bee Eye Moving Head USER MANUAL 1 / 35...
  • Page 2 CONTENTS Safety Instructions ..................3-4 Technical Specification ................4-5 Mounting ....................6-7 Display and Menu ..................8-10 LUX Data…………………………………………………....……………11 DMX Set Up ....................12-13 DMX Channel List ...................13-30 Attention ......................31 Trouble Shooting ..................31-32 Products Size ....................32 Fixture Cleaning ...................33 Multiple Unit Power Linking ................33 Fuse Replacement ..................34 Statement Fixtures should be fastened on the hooks with screws.
  • Page 3 be installed in places where people can't reach them casually or where no one is free to pass by. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before ...
  • Page 4 Do not touch any wire during operation as high voltage might be causing  electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the  unit to rain or moisture. Do not open the unit within five minutes after switching off. ...
  • Page 5 Power Voltage: AC 100-240V, 50/60Hz Dimension: 349X259X484mm Net Weight: 15Kgs Carton packing 1in1 size:445*355*590mm Gross weight: 16.7kg Flight case packing 4in1 size:790*710*670mm Gross Weight: 96.2kg Maximum number of connections: 6 units (220V, 50Hz) 1.5mm² power cable 3 units (120V, 60Hz) 1.5mm² power cable Control DMX Channel: 21/25/33/81 Channels Control Modes: DMX512/Master-Slave/Auto Run/Music...
  • Page 6 These installation should be checked by a skilled person once a year. 1240BW is fully operational in three different mounting positions, hanging upside-down from a ceiling, sideways on trussing, or set on a flat level surface.
  • Page 7 Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event because of clamp fails (see next page).
  • Page 8 Omega holder’s into the respective holes on the bottom of the 1240BW. Tighten the quick-lock fasteners fully clockwise. Install the second Omega holder. Pull the safety-cable through the openings located on the base plate and over the trussing system or a safe fixation spot.
  • Page 9 Display: 1. MENU：To select the programming functions. 2. UP：To go forward in the selected functions. DISPLAY：To show the various menus and the selected function. 4. DOWN：To go backward in the selected functions. 5. ENTER：To confirm the selected functions. 6. DMX IN 7.
  • Page 10 5. Fan Set 1. Auto 2. Low 3. High Menu 6.Reset 1.Yes 2.No 9.Default 1.Yes 2.No 10.Adjust Pass Word **** 1.Pan Pan fine-adjust 2.Tilt Tilt fine-adjust 3.Focus Zoom fine-adjust 4.Rota: 0-255 Rota fine-adjust Change the value, adjust the 5.Red white balance 6.Green 7.Blue 8.White...
  • Page 11 1.CH Value display all channel values Inform 2.Temp/℃ display led board temperature 3.Soft v .xxx software version number 1.DMX512 2.Auto 1.Master 2.Alone 3.Sound 1.Master 2.Alone Mode 4.Manual Master 1.Pan:0--255 2.Tilt:0--255 3.Focus）:0--255 4.Rota:0-255 5.Red：0--255 Alone 6.Greed：0--255 7.Bule：0--255 8.White：0--255 9. Strobe：0-255 1.21Channels Channel 2.25Channels 3.33Channels...
  • Page 12 Data Cable (DMX Cable) Requirements (For DMX Operation): The 1240BW can be controlled via DMX-512 protocol. The 1240BW has 4 DMX channel modes. Your unit and your DMX controller require a standard 3-pin or 5-pin XLR connector for data input and data output (Figure 1). If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).
  • Page 13 made with a male and female XLR connector on either end of the cable. Also remember that DMX cable must be daisy chained and cannot be split. Notice: When making your own cable, be sure to carefully observe and follow the instructions shown in the diagram.
  • Page 14 CH-1 From dark to bright 0 --- 255 CH-2 Red fine Red fine adjustment 0 --- 255 CH-3 Green From dark to bright 0 --- 255 CH-4 Green fine Green fine adjustment 0 --- 255 CH-5 Blue From dark to bright 0 --- 255 CH-6 Blue fine...
  • Page 15 4000K 206----210 4500K 211----215 5000K 216----220 5600K 221----225 6500K 226----230 7000K 231----235 7500K 236----240 8000K 241----255 No function 0 --- 19 Effect -1 10--19 Effect -2 20--29 CH-10 Macro Color …… 10 numbers 1 effect Effect -24 240--249 Effect -25 250 --- 255 CH-11 Dimming...
  • Page 16 CH-15 Pan adjustment Pan fine adjustment 0 --- 255 CH-16 Tilt Tilt control 0 --- 255 CH-17 Tilt adjustment Tilt fine adjustment 0 --- 255 CH-18 Zoom Zoom 0-255 0~60° 0-155 CH-19 Lens rotation Clockwise infinite rotation 156-205 Counterclockwise rotation 206-255 Mode -1 0 --- 49...
  • Page 17 CH-5 Pan/Tilt speed Speed from fast to slow 0 --- 255 CH-6 Zoom Angle from small to large 0 --- 255 0~60° 0-155 Clockwise infinite rotation from 156-205 CH-7 Lens rotation fast to slow Counterclockwise rotation from 206-255 slow to fast CH-8 Dimmer dark to bright linear dimming...
  • Page 18 R 0%, G down, B 100% 76---95 R up, G 0%, B100% 96---115 R 100%, G 0%, B down 116---135 CH-14 Color R 100%, G up, B up 136---155 temperature R down, G down, B 100% 156---175 R100%G100%B100%W100% 176---195 2800K 196---200 3200K 201---205...
  • Page 19 …… (10 numbers 1 macro color) ..Macro color 24 240--249 Macro color 25 250--255 No funtion 0--16 Monochrome pattern 1 17--33 CH-16 Monochrome pattern 2 34--50 Static pattern ..(17 numbers 1 pattern) ..Monochrome pattern 9 153--169 Mixed color pattern 1 170--186 Mixed color pattern 2 187--203...
  • Page 20 ..(4 numbers 1 pattern) ..Mixed color dynamic pattern 14 246--249 Mixed color dynamic pattern 15 250--255 CH-18 Pattern Choose pattern dynamic scene 0-255 movement （with 17CH） No funtion 0--9 CH-19 Forward, from fast to slow （ with 10--132 Dynamic 17CH）...
  • Page 21 DMX channel´s functions and values (33 DMX channels): Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan fine adjustment 0 --- 255 CH-3 Tilt Tilt control 0 --- 255 CH-4 Tilt adjustment Tilt fine adjustment 0 --- 255 CH-5 Pan/Tilt speed...
  • Page 22 CH-11 From dark to bright 0 --- 255 CH-12 Red adjustment Red fine adjustment 0 --- 255 CH-13 Green From dark to bright 0 --- 255 CH-14 Green Green fine adjustment 0 --- 255 adjustment CH-15 Blue From dark to bright 0 --- 255 CH-16 Blue...
  • Page 23 CH-20 Color R up, G 0%, B100% 96---115 temperature R 100%, G 0%, B down 116---135 R 100%, G up, B up 136---155 R down, G down, B 100% 156---175 R100%G100%B100%W100% 176---195 2800K 196---200 3200K 201---205 4000K 206---210 4500K 211---215 CH-20 5000K 216---220...
  • Page 24 No funtion 0--9 Macro color 1 10--19 Macro color 2 20--29 CH-21 Macro color ……(10 numbers 1 macro color) ..Macro color 24 240--249 Macro color 25 250--255 No funtion 0--16 Monochrome pattern 1 17--33 Monochrome pattern 2 34--50 ..(17 numbers 1 pattern) ..
  • Page 25 Monochrome pattern 46 190--193 Mixed color dynamic pattern 1 194--197 Mixed color dynamic pattern 2 198--201 ..(4 numbers 1 pattern) ..Mixed color dynamic pattern 14 246--249 Mixed color dynamic pattern 15 250--255 CH-24 Pattern Choose pattern dynamic scene 0-255 movement （with 17CH）...
  • Page 26 Reset within 5s 251-255 DMX channel´s functions and values (81 DMX channels): Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan fine adjustment 0 --- 255 CH-3 Tilt Tilt control 0 --- 255 CH-4 Tilt adjustment Tilt fine adjustment 0 --- 255 CH-5...
  • Page 27 Synchro strobe speed 4---203 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-11 From dark to bright 0 --- 255 CH-12 Red adjustment Red fine adjustment 0 --- 255 CH-13 Green From dark to bright 0 --- 255 CH-14 Green adjustment Green fine adjustment 0 --- 255 CH-15...
  • Page 28 R up, G 0%, B100% 96---115 R 100%, G 0%, B down 116---135 CH-20 Color temperature R 100%, G up, B up 136---155 R down, G down, B 100% 156---175 R100%G100%B100%W100% 176---195 2800K 196---200 3200K 201---205 4000K 206---210 4500K 211---215 5000K 216---220 CH-20...
  • Page 29 Macro color 25 250--255 No funtion 0--16 Monochrome pattern 1 17--33 Monochrome pattern 2 34--50 ..(17 numbers 1 pattern) ..Monochrome pattern 9 153--169 CH-22 Static pattern Mixed color pattern 1 170--186 Mixed color pattern 2 187--203 Mixed color pattern 3 204--220 Mixed color pattern 4 221--237...
  • Page 30 Mixed color dynamic pattern 14 246--249 Mixed color dynamic pattern 15 250--255 CH-24 Pattern movement Choose pattern dynamic scene 0-255 （with 23CH） No funtion 0--9 CH-25 Forward, from fast to slow （with 10--132 Dynamic pattern 23CH） speed Reverse, from slow to fast (with 133--255 23CH) CH-26...
  • Page 31 CH-37 W1 LED dimming W1 LED dimming 0-255 ........... CH-78 R12 LED dimming R12 LED dimming 0-255 CH-79 G12LED dimming G12 LED dimming 0-255 CH-80 B12LED dimming B12 LED dimming 0-255 CH-81 W12LED dimming W12 LED dimming 0-255 Attention When the lamp is powered on and lit, try to avoid looking directly at the light...
  • Page 32 DMX LED should be on. If not, check DMX connectors, cables to see if link properly. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one.
  • Page 33 Fixture Cleaning The outside of the lens must always be wiped so that the lighting effect is better. Wipe frequency according to the environment. Humidity, excessive smoke, and a particularly dirty environment can make the lens dusty. 33 / 35...
  • Page 34 @ 120V and 7 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE WITH CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE 1240BW AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! 34 / 35...
  • Page 35 Fuse Replacement Unplug the unit from any power source it may be connected to. Once the power has been disconnected, use a Phillips head screw driver to unscrew the fuse holder located next to the power-con input. Remove the bad fuse and replace with a new one, and screw the fuse holder back in.
