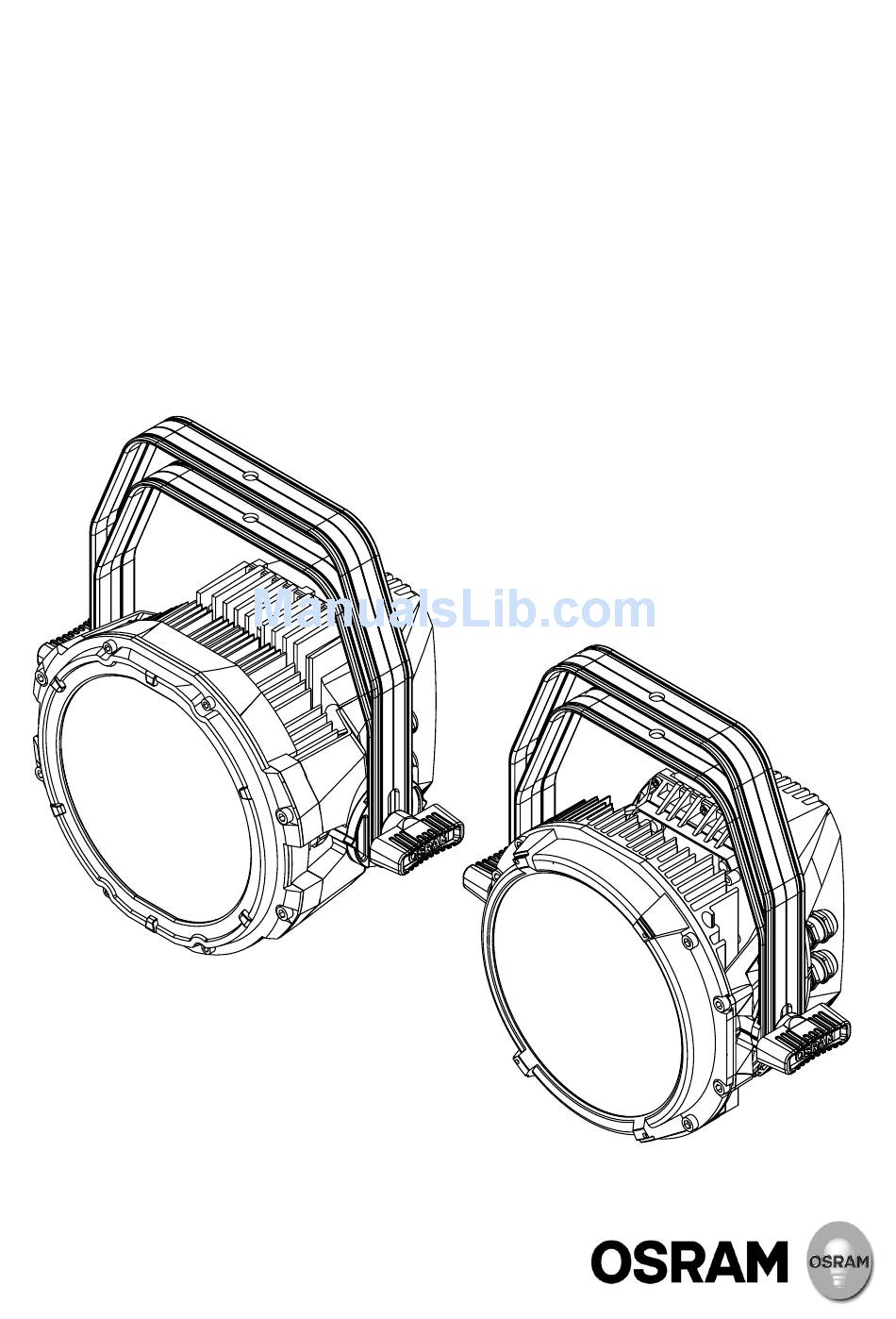

- Page 1 KREIOS PAR ® Indoor and Outdoor Series...
-
Page 2: Table Of Contents
KREIOS PAR KREIOS PAR CONTENT Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 KREIOS PAR 162W IP - Outdoor . -

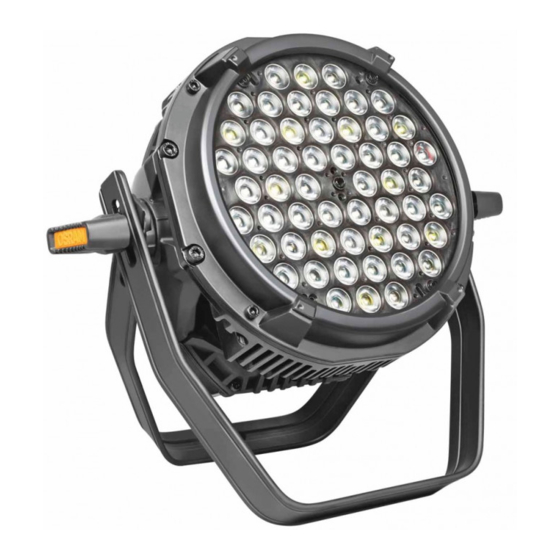

Page 3: Product Specification
Product Models Application Product name Model 1 .1 KREIOS PAR 162W IP - Outdoor KREIOS PAR162W VNSP IP 100-240V Product dimension KREIOS PAR 162W NSP IP 100-240V KREIOS PAR IP LED stage Light for outdoor KREIOS PAR 162W MFL IP 100-240V... -
Page 4: Kreios Par 144W Ip - Outdoor
KREIOS PAR KREIOS PAR 1 .2 KREIOS PAR 144W IP - Outdoor Product dimension Product Models Application Product name Model KREIOS PAR144W VNSP IP 100-240V KREIOS PAR 144W NSP IP 100-240V KREIOS PAR IP LED stage Light for KREIOS PAR 144W MFL IP 100-240V outdoor or indoor used KREIOS PAR 144W WFL IP 100-240V Electronic data:... -
Page 5: Kreios Par 162W - Indoor
KREIOS PAR KREIOS PAR 1 .3 KREIOS PAR 162W - Indoor Product dimension Product Models Application Product name Model KREIOS PAR 162WVNSP 100-240V KREIOS PAR 162W NSP 100-240V LED stage Light for KREIOS PAR indoor used only KREIOS PAR 162W MFL 100-240V KREIOS PAR 162W WFL 100-240V Electronic data: Rated input Voltage:... -
Page 6: Kreios Par 144W - Indoor
KREIOS PAR KREIOS PAR 1 .4 KREIOS PAR 144W - Indoor Product dimension Product Models Application Product name Model KREIOS PAR 144W VNSP 100-240V KREIOS PAR 144W NSP 100-240V LED stage Light for KREIOS PAR indoor used only KREIOS PAR 144W MFL 100-240V KREIOS PAR 144W WFL 100-240V Electronic data: Rated input Voltage:... -
Page 7: Kreios Par 108W - Indoor
KREIOS PAR KREIOS PAR 1 .5 KREIOS PAR 108W - Indoor Product dimension Product Models Application Product name Model KREIOS PAR 108W VNSP 100-240V LED stage Light KREIOS PAR 108W NSP 100-240V for indoor used KREIOS PAR KREIOS PAR 108W MFL 100-240V only KREIOS PAR 108W WFL 100-240V Electronic data:... -
Page 8: Product Brief
KREIOS PAR KREIOS PAR Product Brief 2 .1 Features White Balance – Four types of operating mode Multi configurations with different color temperature External control Unit – DMX512 Lighting Console (7 DMX channel modes are available for KREIOS PAR 162W/ KREIOS Color Shift Correction PAR 162W IP/ KREIOS 144W/ KREIOS 144W IP, 5 DMX channel modes are available for KREIOS 108W) -
Page 9: Master Mode
KREIOS PAR KREIOS PAR 2 .3 Master Mode 3 .1 .1 Basic Operation Only under below 5 conditions, it can be a master controller to generate signals: [MENU] Select main menu or return to previous menu [ENTER] Enter or select sub-menu –... -
Page 10: Menu Description
KREIOS PAR KREIOS PAR 3 .3 Menu description 3 .3 .1 Static Mode (STAT) Apply to Screenshot KREIOS PAR 162W IP KREIOS PAR 162W Apply to Screenshot KREIOS PAR 144W IP KREIOS PAR 144W Apply to Screenshot KREIOS PAR 108W • Select [STAT] menu and press [ENTER] to “Static Mode”, the LUM start generating signals automatically as master controller • Press[ENTER]button to sub-menu:[Red], [Green], [Blue], [Yellow], [White], [Strobe]... -
Page 11: Dmx And Slave Selection (Run)
KREIOS PAR KREIOS PAR • Select [AUTO] menu and press [ENTER] to “Auto-run Mode”, the LUM start generating signals Apply to Screenshot automatically as master controller • Press [UP]/ [DOWN] button to select pre-defined or self-defined program • Press [MENU] button to return to main menu (“External Control Mode”) • Press [MENU] button to return to main menu KREIOS PAR 108W 3 .3 .3... -
Page 12: Scene Edit (Edit)
KREIOS PAR KREIOS PAR 3 .3 .8 Scene Edit (EDIT) 3 .3 .9 Local Equipment Setting (SET) Apply to Screenshot Apply to Screenshot (0~255) (0~255) (0~255) (0~255) KREIOS PAR 162W KREIOS PAR 162W IP (0~255) (0~20) (0~255) All Models (0~255) Apply to Screenshot (0~255) -
Page 13: White Balance Configuration (Cal1)
KREIOS PAR KREIOS PAR 3 .3 .10 White Balance Configuration (CAL1) 3 .3 .11 Color Calibration Apply to Screenshot Apply to Screenshot (0~255) (0~255) KREIOS PAR 144W (0~255) (0~255) KREIOS PAR 108W KREIOS PAR 144W IP KREIOS PAR 162W IP (0~255) (0~255) KREIOS PAR 162W... -
Page 14: Stag Channel Mode
KREIOS PAR KREIOS PAR 3 .4 .1 STAG channel mode Invalid ID address 10~19 ( Please refer to corresponding list according to different product models) ... (One ID every 10 values) Applicable for KREIOS PAR 162W/KREIOS PAR 162W IP products 200~209 ID20 Channel... -
Page 15: Arc.1 Channel Mode
KREIOS PAR KREIOS PAR Dimming speed(0~9 refer to dimming speed in SET menu) Dimming speed(0~9 refer to dimming speed in SET menu) 10~29 Shut down 10~29 Shutdown 30~69 Speed 1(fastest) 30~69 Speed 1(fastest) 70~129 Speed 2 70~129 Speed 2 130~189 Speed 3 130~189 Speed 3... -
Page 16: Arc.2 Channel Mode
KREIOS PAR KREIOS PAR 3 .4 .4 ARC .2 channel mode Applicable for KREIOS PAR 144W /KREIOS PAR 144W IP products Channel Value Function ( Please refer to corresponding list according to different product/models) 0~255 Master Dim Applicable for KREIOS PAR 162W /KREIOS PAR 162W IP products 0~255 Channel Value... -
Page 17: Color Selection
KREIOS PAR KREIOS PAR Edit learning Program 3 .4 .9 Color selection Channel Value In this chapter, you will learn some extension functions. You can skip over this chapter, if you are not interested in. 31~50 R 100% / G increase / B 0% / W 0% You can edit 10 program at most, 30 scenes for each program, and 8 data for each scene. - Page 18 KREIOS PAR KREIOS PAR Applicable for KREIOS PAR 144W/KREIOS PAR 144W IP products • Fade in or fade out effect is created by different value of two adjacent scenes, and light effect can only Scene Effect display correctly when program runs continuously. • If “Time”...
-
Page 19: Important Safety Instructions
6.3m is unlikely. KEEP THIS INSTRUCTION FOR FURTHER REFERENCE . OSRAM CHINA LIGHTING LTD. OSRAM (Malaysia) Sdn Bhd OSRAM Australia Pty. Ltd., Sydney No. 1 North Industrial Road, Foshan, (Company No: 491867 X) Level 11, 423 Pennant Hills Road, Guangdong.
