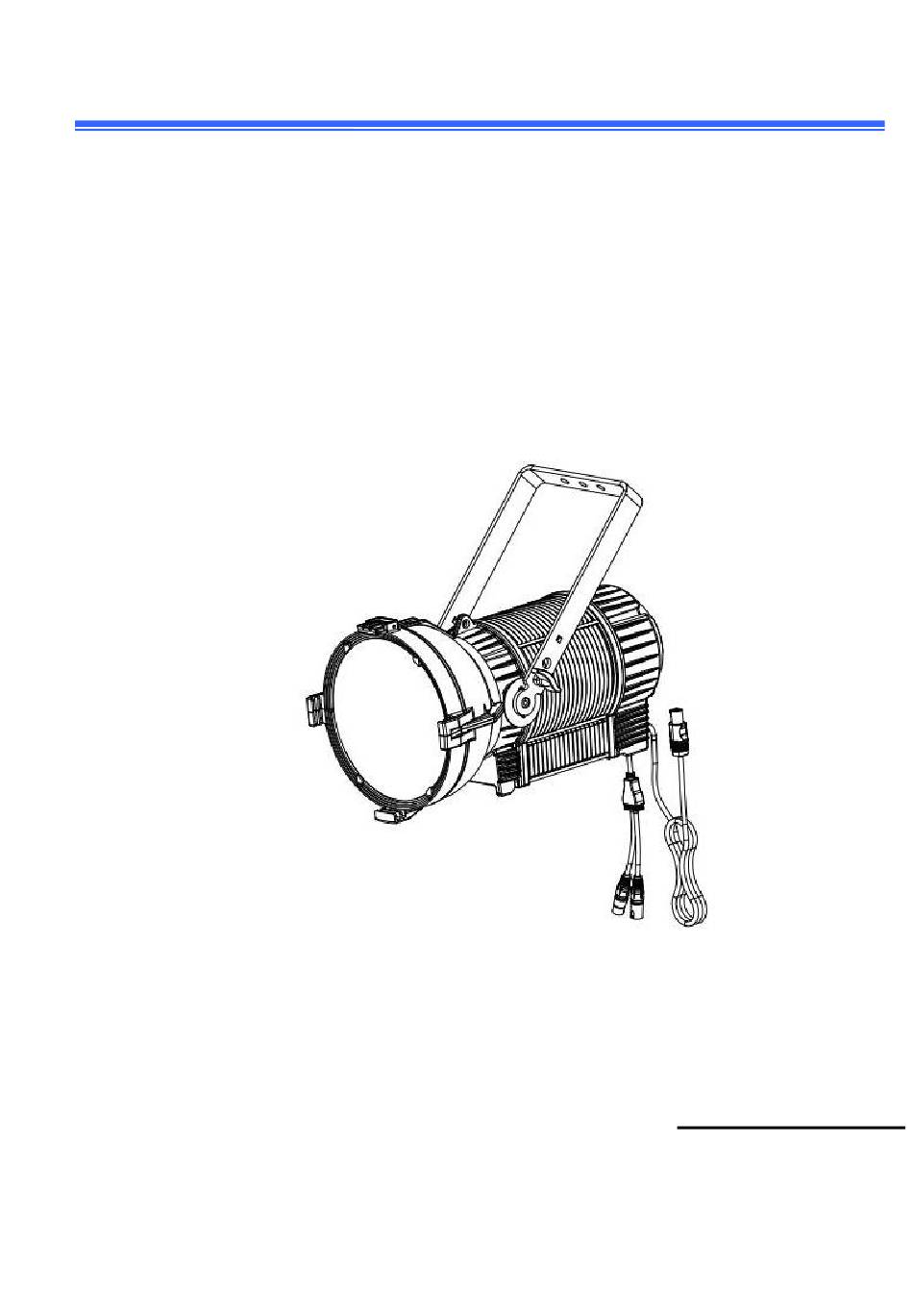

BY-P12 LED Fresnel Light 300W RGBAL 5in1 IP65LED Fresnel Light (with Auto zoom) User manual Please read the instructions carefully before use...
TABLE OF CONTENTS 1. Technical Specifications ............3-4 2. Description .................4 3. Unpacking ................5-6 4. Main Menu ................6-7 5. Vice Menu ................7-9 6. DMX Channels ..............9-11 7. Size..................12 8. Fixture Cleaning ...............13 9. Warning ..................13 Statement This New IP rated LED fixture-IP65 waterproof housing, warm white or cool white with high CRI make it an ideal LED replacement for aging incandescent light.
DMX Channels: 6/13CH (Two kinds of channel modes optional Working Environment : Working Temperature: -30~40℃ Cooling system: Fan-less no noise IP Grade: IP65 Package : Dimensions: 520.1(D)*306.7(W)*473.9(H)mm Net Weight: 13kgs Gross Weight: 16kgs Packing size: 67*38.5*39cm(1pc/carton) 2. Descriptions ··RGBAL 5in1 fresnel light fixture for theatre, film and production ·Fully IP65 rated for seasonal use indoors or out ·Electronic auto zoom from 15°-30°...
3. Unpacking Thank you for choosing our F12. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. The F12 is made of a new type of high temperature strength of cast aluminum casing with nice outlook.
Operation Status Mode Displ Description Axxx “A”stand for standard channel mode, “xxx”stand for ID Mode address, Auto identify controller signals or host signals Master-sla Dxxx “D”stand for basic channel mode, “xxx”stand for ID address, Auto identify controller signals or master signals Manual M-MC “M”stand for Master mode,“MC”stand for “Mixed Colort”...
Page 8
Master Mode Choice Menu Operation Vice Menu description Mixed Press Key of “OK” to choose Choose the color and strobe setting Color mode Auto Mode Same as above Choose the Auto and Speed setting Sound Same as above Choose the Sound and Mode setting Mode White Same as above...
Frequency dimmer ..frequency 25KHz Dimmer Curve Change Standard dimmer curve Incandescent Linear Quick Over Temperature 80~100 Each 5 for increase Temperature setting or decrease Backlight Adjust 10%~100% Each 5% for increase display or decrease brightness Backlight Screen protect No screen protect Each 5 for increase Timeout setting...
Page 10
No function 10~19 Color Temperature 2700K 20~29 Color Temperature 3000K Each 10 data for each color temperature 30~39 Color Temperature 3200K 40~49 Color Temperature 3600K 50~59 Color Temperature 4000K 60~69 Color Temperature 4200K 70~79 Color Temperature 4500K 80~89 Color Temperature 5600K 90~99 Color Temperature 6000K 100~109...
Page 11
fastest) Null 10~19 Auto 1 ..Auto 2~7 Each 10 data for one auto 80~89 Auto 8 90~199 Null 200~219 Sound 1 220~255 Sound 2 0~255 Zoom 0~255 Speed of zoom 0 is the fastest, 255 is the slowest 0~255 Reset of zoom Pushrod will back to the top(255) and stay for 5...
8. Fixture Cleaning Before disconnecting the lighter or starting maintenance work, ensure that the power supply of the light is turned off to maintain the maximum brightness output of the light, and it can also prolong its service life. It is recommended to use high-quality professional glass cleaner and to clean it with cloth.
