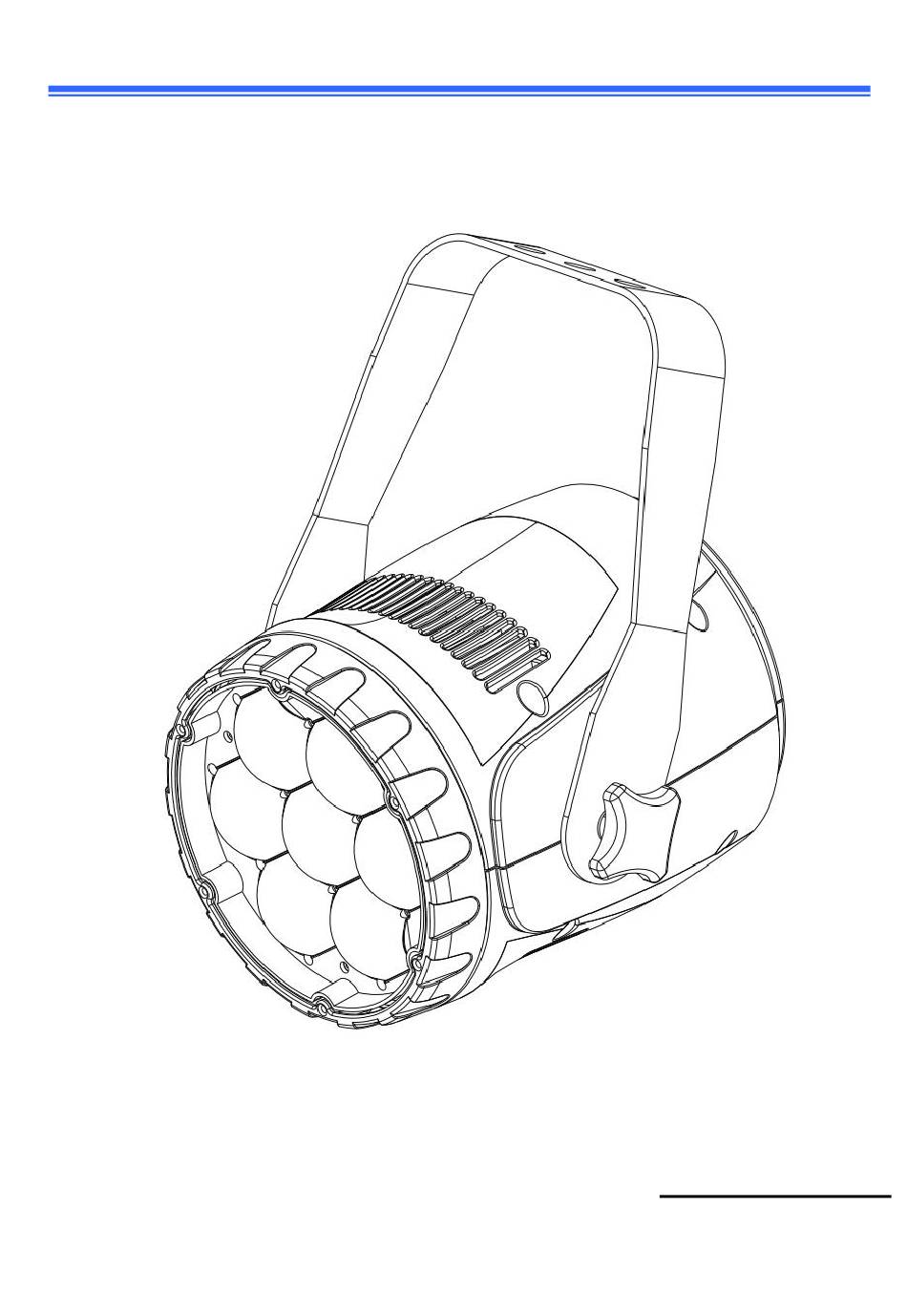

- Page 1 BY-P23B 7*4in1 15w beam zoom par User manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions..................... 2 2. Technical Specifications...................4 3. How To Control The Unit..................5 4.SHAPE.........................8 5. Trouble shooting......................9 6. Fixture Cleaning...................... 10 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,... - Page 3 The unit is for indoor use only. Use only in a dry location. The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. ...
-
Page 4: Technical Specifications
or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. -
Page 5: How To Control The Unit
3.Lux Date 4. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal... - Page 6 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
- Page 7 LD02 LD01—Choose Halogen dimmer Curve Dimmer mode LD02—Choose Led dimmer Curve Press up and down button to set the addr code, Set Dmx addr D001 press Enter button to save Red brightness Press up and down button to set the brightness , R255 press Enter button to save adjustment...
- Page 8 DMX Channel DMX channel´s functions and their values (12 DMX channels): Mode/Channel Value Function 0-255 Zoom From narrow to wide 0-255 Dimmer intensity: Intensity 0 to 100% strobe 0-255 Strobe effect slow to fast 0-255 R dimming slow to fast G dimming slow to fast 0-255 B dimming slow to fast...
-
Page 9: Shape
65-128 Auto run 129-192 Music mode 193-255 Reset 5.SHAPE... -
Page 10: Trouble Shooting
6. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. -
Page 11: Fixture Cleaning
settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4. Try to use another DMX controller. 5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit.
