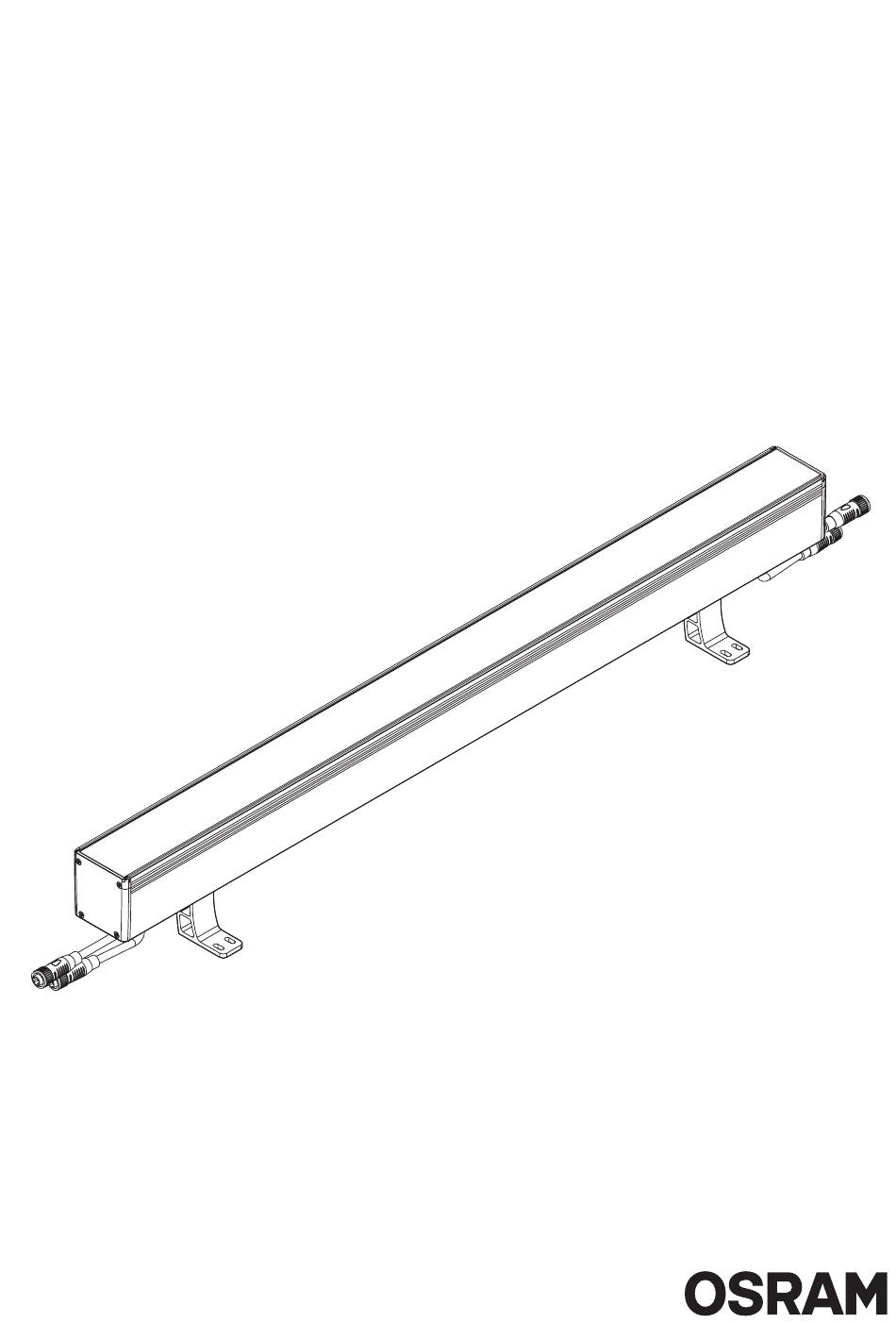

- Page 1 ARCHISHAPE 2.0 Linear Power ® • Please read instruction carefully before assembling and installation • Please keep instruction as reference in the future...
- Page 2 ARCHISHAPE 2.0 Linear Power ® 300mm 500mm 75mm 149mm 79mm 70mm 1000mm Rated Input Maximum Weight Rated voltage power current projected area 300mm 1800 0.09 0.039 500mm 3000 0.18 220-240 0.065 1000mm 5000 0.36 0.13 Max. connected qty. (1.5mm master cable) Rated power 220-240V 300mm...
- Page 3 ARCHISHAPE 2.0 Linear Power ® 6x35mm 300mm 100mm 500mm 300mm 1000mm 800mm 90° 90° “click”...
- Page 4 ARCHISHAPE 2.0 Linear Power ® Strip wire 10mm with copper terminals 10.2 Label ASL 3-pin AC Power Starter Cable 600 CE ASL 2&3-pin Connector Socket End Cap CE AM251620055 AM259050055 10.2 ASL 3-pin AC Interconnection CAB 1000 CE AM251630055 2000 ASL 4-pin DATA Starter Cable 2m AM296170055 1000...
- Page 5 ARCHISHAPE 2.0 Linear Power ® 5A - On Off version Female connector Male connector AC 220-240V Female connector IP66 conjunction box 3-pin starter cable 3-pin interconnection Use end cap for 1000mm (optional) final fixture in chain Green/Yellow Brown L (AC) Blue N (AC) 5B - DMX version...
- Page 6 ARCHISHAPE 2.0 Linear Power ® Handle the fixture with care. Do not pull or handle the lead cables and connectors. After connecting the cables, tangle up with water-proof tapes for extra protection.
