Osram M51 User Manual

Osram M51 User Manual

New strobe light
Hide thumbs

Advertisement

Quick Links

Download this manual

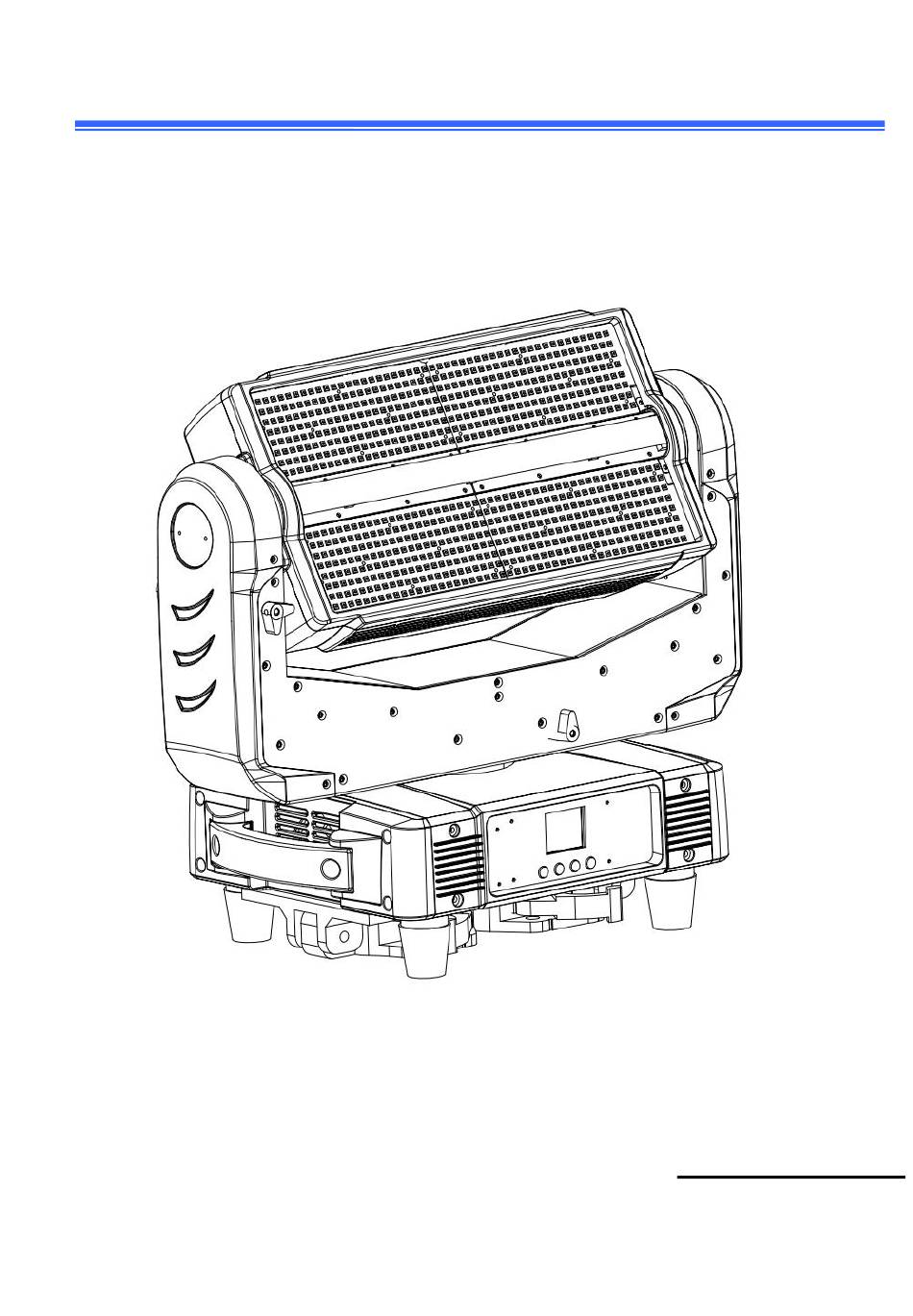

M51 New Strobe Light
768 * 0.5W RGB 3in1；96*10W White LED Strobe
Light
User manual
Please read the instructions carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the M51 and is the answer not in the manual?

Questions and answers

Related Manuals for Osram M51

Summary of Contents for Osram M51

  • Page 1 M51 New Strobe Light 768 * 0.5W RGB 3in1；96*10W White LED Strobe Light User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ................3-4 2. Technical Specification ..............5-6 3. Display and Menu................6-8 4. DMX List ...................9-21 5. Product Size ..................22 6. Attention ..................22 7. Fixture Cleaning ................23 statement Fixtures should be fastened on the hooks with screws. Make sure the installation is secure to prevent chattering and slipping during operation.

  • Page 3: Safety Instructions

    1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
  • Page 4 nearest authorized technical assistance center. Always use the same type spare parts. DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

  • Page 5: Technical Specification

    2. Technical Specifications Light source: 768*0.5w RGB 3-in1 LED ,96*10w white led (6000K) ● Lamp life: ≥50000 hours ● Input voltage: AC100-250V ,50-60Hz ● Full power :1200W,Power factor PF≥0.98 ● Beam angle: 130° ● Color system: RGB 3-in-1 + White LED Control DMX Channel:10/15/25/29 CH Control Modes: DMX512/mater-Slave/Auto Run/Music/RDM...

  • Page 6: Display And Menu

    Lamp information query; Intelligent fan speed control Effect configuration: full optical domain dimming, 65536-level dimming accuracy; Fast strobe 1~25Hz; White light is divided into 4 areas to control, and color is divided into 12 areas to control; Preset 56 kinds of effect macro function Specification: Dimension : 376×490×388mm;...
  • Page 7 MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
  • Page 8 reverse settings 1.CH Value Each channel show CH value Information Show the temperature of led 2.Temp ____ ℃ board 3.Soft V1.0 Show the version number 10 channels 15 channels 25 channels 29 channels Channel DMX 512 AUTO Master/Alone Mode SOUND Master/Alone Pan:0--255 Tilt:0--255...

  • Page 9: Dmx List

    4. DMX Channel List: Model 1 - CH 10 Channel Display Function Value CH-1 0-540° Pan control 0 --- 255 CH-2 Tilt 0-205° Tilt control 0 --- 255 CH-3 Dimmer Linear dimming dark to bright 0--255 0--3 CH-4 Strobe Synchro strobe speed 4--203 From slow to fast (1HZ-25HZ) Random strobe...
  • Page 10 Model 2 50--99 Model 3 100--149 CH-9 Dimming mode Model 4 150--255 CH-10 Reset 0-250 Reset within 5s 251--255 Model 2 - CH 15 Channel Display Function Value CH-1 Middle White dimming 0--255 CH-2 Middle White fine-tuning 0--255 CH-3 Middle Total dimming is linear dimming 0--255 from dark to bright...
  • Page 11 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-6 Red dimming dark to bright 0--255 CH-7 Green dimming dark to bright 0--255 CH-8 Blue dimming dark to bright 0--255 Both sides CH-9 Total dimming is linear dimming 0--255 from dark to bright CH-10 0--3 Synchro strobe speed...
  • Page 12 CH-13 Dimming mode Model 2 50--99 Model 3 100--149 CH-13 Dimming mode Model 4 150--255 0--3 CH-14 Strobe Synchro strobe speed 4--203 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-15 Reset 0-250 Reset within 5s 251--255 Model 3 - CH 25 Channe Display Function...
  • Page 13 CH-3 Pan/Tilt speed Speed from fast to slow 0--255 CH-4 Middle-dimming linear dimming from dark to 0--255 bright CH-5 Middle-Strobe 0--3 Synchro strobe speed 4--203 CH-5 Middle-Strobe From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-6 Middle-White White dimming dark to bright 0--255 No effect 0--16...
  • Page 14 Middle-Dynamic Dynamic pattern 1 10--19 pattern CH-8 Dynamic pattern 2 20--29 ..(One of 10) ..Middle-Dynamic CH-8 Dynamic pattern 10 100--109 pattern Dynamic pattern 11 110--255 Middle-dynamic No effect 0--9 pattern speed CH-9 Forward, from fast to slow 10--132 (with 8 CH) Go backward, from slow to fast 133--255 CH-10...
  • Page 15 CH-13 Both sides Red dimming dark to bright 0--255 CH-14 Both sides Green dimming dark to bright 0--255 CH-15 Both sides Blue dimming dark to bright 0--255 No effect 0--9 Dynamic pattern 1 10--17 CH-16 Both Dynamic pattern 2 18--25 sides-dynamic ..(One of 8) ..
  • Page 16 CH-19 Both Linear dimming dark to bright 0--255 sides-background total dimming CH-20 Red dimming Linear dimming dark to bright 0--255 CH-21 Green dimming Linear dimming dark to bright 0--255 CH-22 Blue dimming Linear dimming dark to bright 0--255 Model 1 0--49 CH-23 Dimming mode...
  • Page 17 Reset within 5s 251--255 Model 4- CH 29 Channel Display Function Value CH-1 0-540° Pan control 0 --- 255 CH-2 Pan fine-tuning Pan fine-tuning control 0 --- 255 CH-3 Tilt 0-205° Tilt control 0 --- 255 CH-4 Tilt fine-tuning Tilt fine-tuning control 0 --- 255 CH-5 Pan/Tilt speed...
  • Page 18 From slow to fast (1HZ-25HZ) Random strobe 204--255 CH-9 Middle-White White dimming dark to bright 0--255 CH-10 Middle-White White fine-tuning 0--255 fine-tuning Model 1 0--49 CH-11 Middle-Dimming Model 2 50--99 mode Model 3 100--149 Model 4 150--255 No effect 0--16 Monochrome pattern 1 17--33 CH-12...
  • Page 19 No effect 0--9 Middle-Dynamic Dynamic pattern 1 10--19 pattern CH-13 Dynamic pattern 2 20--29 ..(One of 10) ..Middle-Dynamic CH-13 Dynamic pattern 10 100--109 pattern Dynamic pattern 11 110--255 Middle-dynamic No effect 0--9 pattern speed CH-14 Forward, from fast to slow 10--132 (with 13 CH) Go backward, from slow to fast...
  • Page 20 Random strobe 204--255 CH-18 Both sides Red dimming dark to bright 0--255 CH-19 Both sides Green dimming dark to bright 0--255 CH-20 Both sides Blue dimming dark to bright 0--255 No effect 0--9 Dynamic pattern 1 10--17 CH-21 Both Dynamic pattern 2 18--25 sides-dynamic ..(One of 8)
  • Page 21 speed (with21 CH) Go backward, from slow to fast 133--255 CH-24 Both Linear dimming dark to bright 0--255 sides-background total dimming CH-25 Red dimming Linear dimming dark to bright 0--255 CH-26 Green dimming Linear dimming dark to bright 0--255 CH-27 Blue dimming Linear dimming dark to bright 0--255...

  • Page 22: Product Size

    5.Products Size: 6. Attention: 1. When the lamp is lit after the lamp is powered on, the light emitted by the lamp bead should be avoided as much as possible. 2. When loading or unloading the lamp, be sure to cut off the main power supply connected to the device before you can open the cover on which the lamp bead is installed.

  • Page 23: Fixture Cleaning

    7. Fixture Cleaning The outside of the lens must always be wiped so that the lighting effect is better. Wipe the frequency of the environment. Humidity, excessive smoke, and a particularly dirty environment can make the lens dusty. ● Use a soft cloth and special glass cleaner. ●...
