UG241: EFM8UB2-SLSTK2001A User's Guide
Peripherals
5.4 USB Micro-B Connector

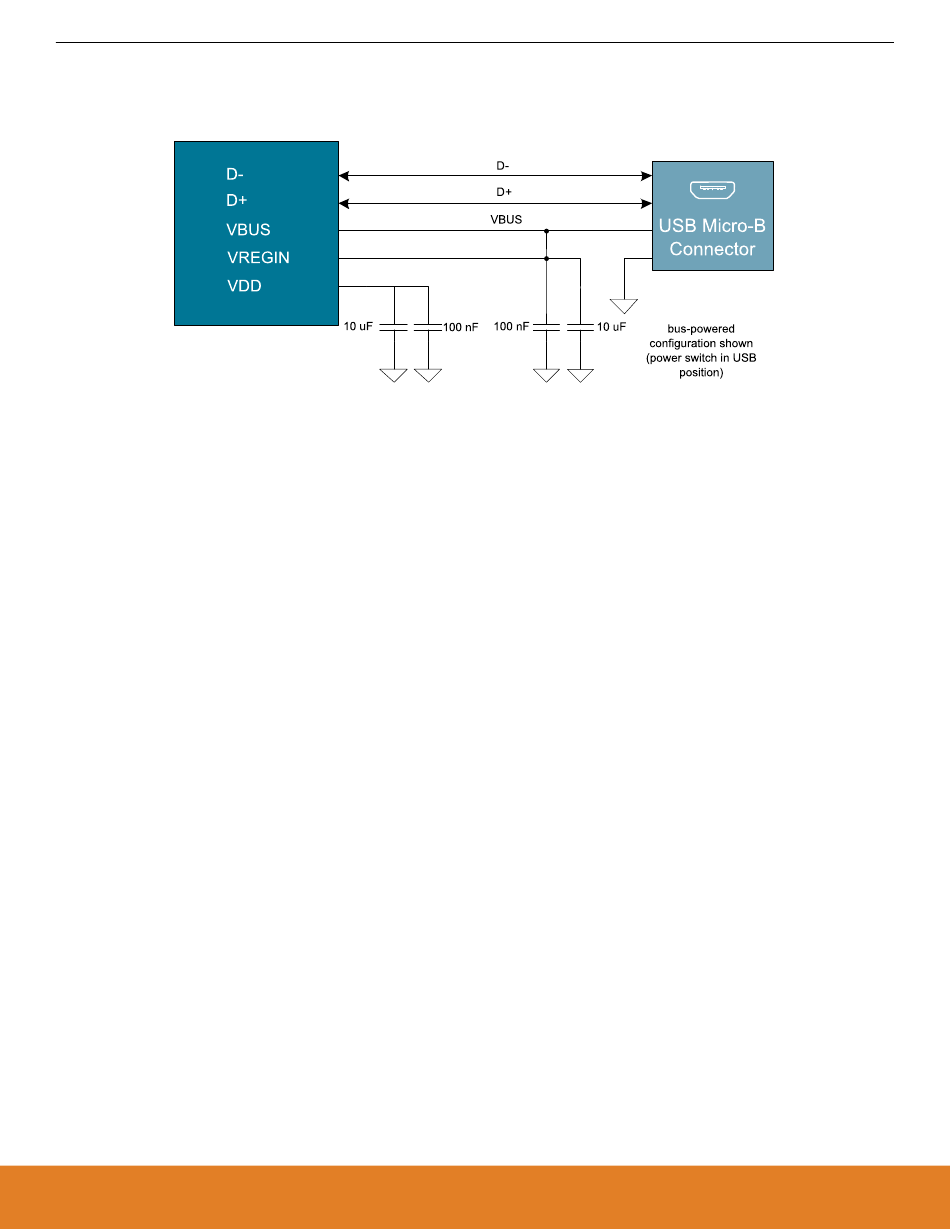

The EFM8UB2-SLSTK2001A board is equipped with a USB Micro-B connector supporting device USB. The figure below shows how
the USB lines are connected to the MCU.
Figure 5.4. EFM8 USB Connector
silabs.com | Building a more connected world.
Rev. 0.3 | 10
