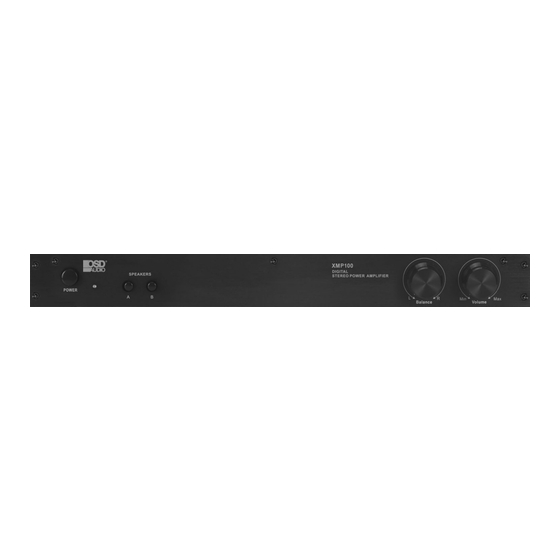

XMP100
Digital Stereo Power Amplifier
FEATURES
• Provides 150Watts Output Power (RMS @ 8 ΩBridged).
Class D circuit designed.
• 94% Efficient versus 50% for comparable AB design
RCA Line Main IN and RCA Interrupting IN.
• RCA Line Main Out to another amplifier.
Base and Treble Adjustable
Volume and Balance Adjustable
• Power Output A and B Select
12V Trigger: In (+/-) Control by a DC Remote Trigger
• 12V Trigger Out (+/-) Remote Turn on/off signal for another device
• Normal/Auto.
• Standby mode (Only switch at "Auto" position).
• Selectable Voltage.
• Designed in 1U rack.
• Stereo/Bridged Mode Select
• AC 115V IN
SPECIFICATIONS
Power Output: 50WX2 (RMS @ 8Ω)
Power Output: 75WX2 (RMS @ 4Ω)
Power Output: 150W (RMS @ 8Ω Bridged)
Total Harmonic Distortion (THD): <1%(Rated power: 50W @ 8Ω)
Signal to Noise: >90 dB A WTD
Frequency Response :20HZ~22KHZ +0/-2dB@ 8Ω
Adjustable Volume: Min – Max
Adjustable Bass and Treble: -12~+12dB.
Line Level Input Sensitivity: 700Mv
Thermal Protection: Yes
Short Protection: Yes
Dimension: 17.28 x 1.73 x 4.96 (WxHxD)
Weight: 3.3 lbs
775 Columbia St.,
Brea. CA92821
www.osdaudio.com
Congratulations on your purchase of the OSD Audio ® XMP100.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or OSD Audio directly at 1.888.779.4968
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about OSD Audio electronics, speakers and
accessories please visit www.osdaudio.com
1.73"
(44mm)
4.96"
(126mm)
XMP100
OWNER'S MANUAL
17.28" (439mm)
XMP100 Owner's Manual 51115
