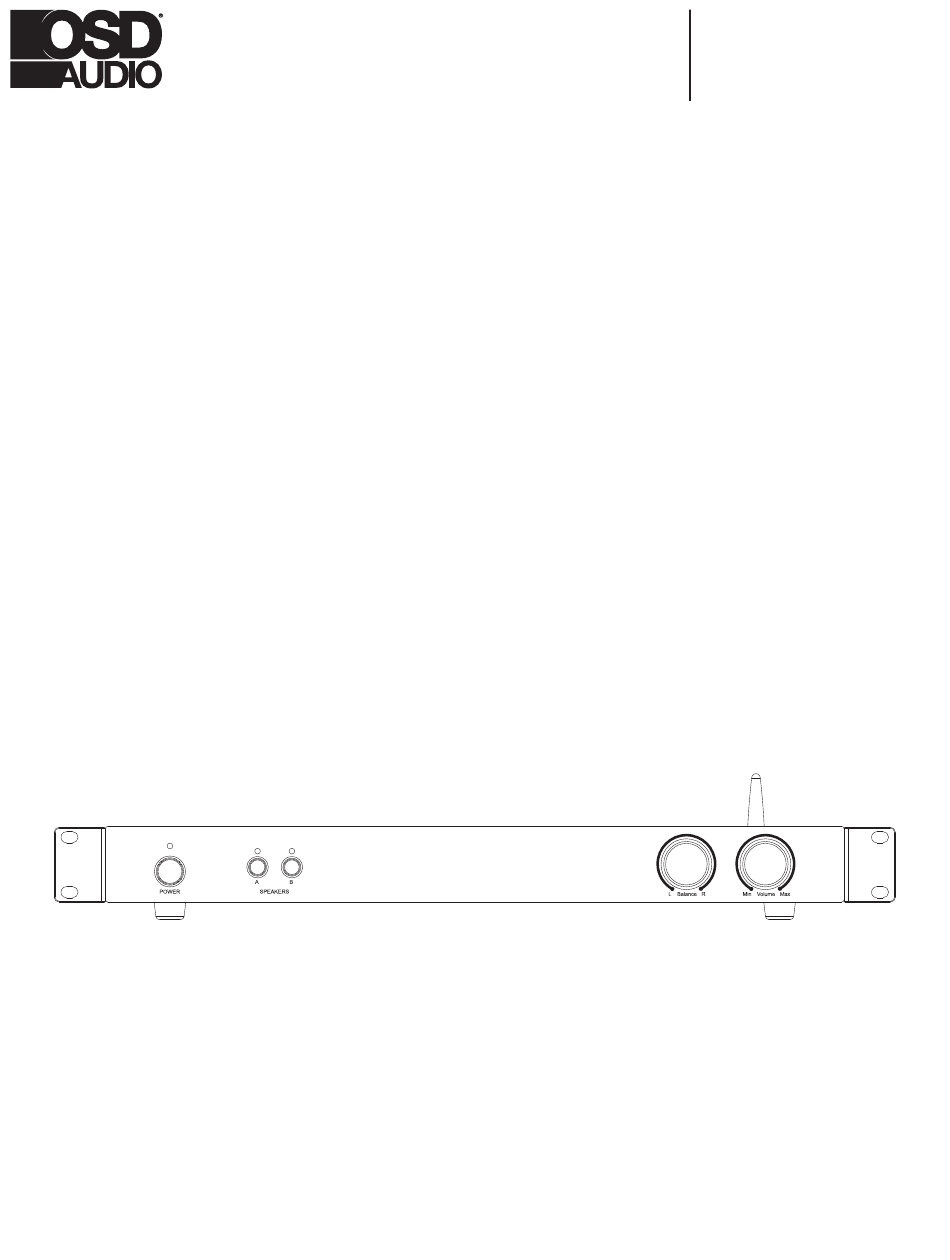

- Page 1 100BT GEN2 DIGITAL STEREO 300BT GEN2 A M P L I F I E R CLASS D DUAL SOURCE POWER AMPLIFIER USER GUIDE...
-
Page 2: Important Safety Instructions
SAFETY INSTRUCTIONS Important Safety Instructions The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of dangerous voltage inside the product that may constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product. - Page 3 SAFETY INSTRUCTIONS 15. Servicing — Do not attempt to repair or service this product yourself. Opening or removing covers may expose you to dangerous voltage and other hazards. Refer all servicing to qualified service personnel. 16. Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) If the power-supply cord or plug is damaged.
-
Page 4: Front Panel
FRONT PANEL 1. Power Switch: (3-way LED: Green/Blue/Red) Power On 3. Balance: The Balance control lets you fade the amplifier’s (Green LED/Blue for BT) or OFF (no LED) LED changes to speaker output between the Right & Left channels. Red when in Standby after 7-9 minutes 4. -
Page 5: Rear Panel
REAR PANEL 1. USB Input: Used to play U disk music. When the U disk 8. Speaker Outputs: Speaker output terminals for zones A & storing MP3 music format is inserted into this USB socket, B. Minimum impedance: 8 ohm bridged or 4 ohm stereo. whether it is currently playing wireless music or music input by the main channel, it will automatically switch to the U disk STEREO MODE... -
Page 6: Stereo Setup
SETUP Stereo Setup: Back Panel RCA Input/Outputs In this configuration, the mode switch is set to “Stereo”. Connect the line out jacks from a stereo pre-amplifier or source to the MAIN input jacks of your XMP Gen2. Next connect your speakers to the terminals marked “Speaker A”... -
Page 7: Specifications
SPECIFICATIONS Model XMP100BT Gen2 XMP300BT Gen2 Amplifier Type Stereo Four Channel (2A, 2B) Stereo Four Channel (2A, 2B) Design Type Digital Class D Digital Class D Wireless BT (version) Wireless BT V5.3 Wireless BT V5.3 Rated Output Power 200 Watts Max 600 Watt Max 8-Ohm Load 50W x 2 Channel RMS/Output 8-ohm... -
Page 8: Warranty
For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD Audio . The unit must be returned to OSD Audio at the owner’s expense and with prior written permission.
