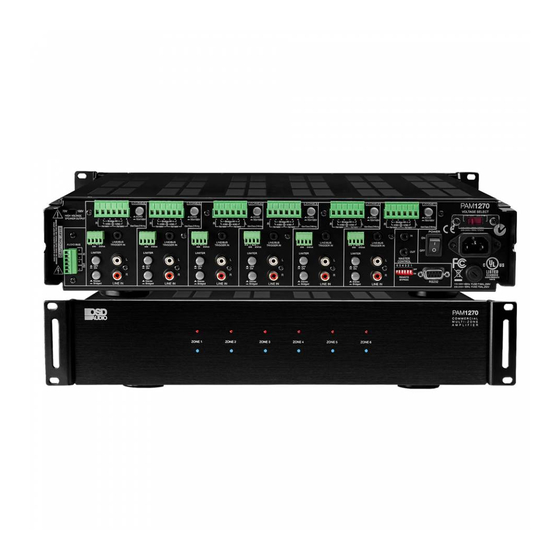

OSD Audio PAM 1270 Owner's Manual

OSD Audio PAM 1270 Owner's Manual

Multi-zone
Hide thumbs Also See for PAM 1270:

Advertisement

Quick Links

W A R R A N T Y & R E P A I R
ll OSD AUDIO electronics have (2) year Limited Warranty against defects in materials and
workmanship. Proof of purchase must accompany all claims. During the warranty period
OSD AUDIO will replace any defective part and correct any defect in workmanship without
charge for either parts or labor.
OSD AUDIO may replace returned electronics with a product of equal value and
performance. In such cases, some modifications to the mounting may be necessary and
PAM 1270
are not OSD AUDIO's responsibility.
M U LT I - Z O N E
A M P L I F I E R
For this warranty to apply, the unit must be installed and used according to its written in-
structions. If necessary, repairs must be performed by OSD AUDIO. The unit must be
returned to OSD AUDIO at the owner's expense and with prior written permission.
Accidental damage and shipping damage are not considered defects, nor is damaged
resulting from abuse or from servicing performed by an agency or person not specifically
authorized in writing by OSD Audio.
OSD AUDIO sells products only through authorized dealers and distributors to ensure that
customers obtain proper support and service. Any OSD AUDIO product purchased from
an unauthorized dealer or other source, including retailers, mail order dealers and online
sellers will not be honored or serviced under existing OSD AUDIO warranty policy. Any sale
of product by an unauthorized source or other manner not authorized by OSD AUDIO shall
void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the
warranty on those parts. In these cases, repairs will be made on the basis of the retail
value of the parts and labor. To return for repairs, you must email customer service at
RMA@OSDAUDIO.com for a Returned.
Merchandise Authorization (RMA) number then the unit must be shipped to OSD AUDIO at
the owner's expense, along with a note explaining the nature of service required. Be sure
to pack the product(s) in a corrugated container with at least 3 inches of resilient material
to protect the unit from damage in transit.
This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence,
or improper operation (installation) • Any products that have been altered or modified •
Any product whose identifying number of decal, serial #, etc. has been altered,
defaced or removed • Normal wear and maintenance.
O W N E R ' S M A N U A L
OSD Audio | 775 Columbia Street Brea, CA. 92821 | osdaudio.com
022216 PAM1270 Amp manual V1.indd 1
2/22/16 4:01 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAM 1270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OSD Audio PAM 1270

  • Page 1 OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable product.
  • Page 2 I N T R O D U C T I O N B L O C K D I A G R A M The PAM1270 is a major step forward in installation amplifiers technology. Twelve mono Zone power amplifiers, featuring 85% class D design technology, can operate as 6 independent Zone amplifiers.
  • Page 3 S P E A K E R M O D E S A F E T Y CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK ) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICE TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of nu-insulated “danger- ous voltage”...
  • Page 4 P H Y S I C A L L O C A T I O N A N D M O U N T I N G S A F E T Y Wall or Ceiling Mounting – The appliance should be mounted to wall or ceiling only as recommended by 1.
  • Page 5 Continuous Output Power: 30W per channel 8ohms at 1k Hz THD 0.1% 50W per channel 4ohms at 1k Hz THD 0.1% PAM 1270 100W Bridged 8ohms at 1k Hz THD 0.1% 30W per channel 70V/100V at 1k Hz THD 0.1% Total Harmonic Distortion: 0.1% @ 10W...
  • Page 6 F E A T U R E S A N D F U N C T I O N F E A T U R E S A N D F U N C T I O N R E A R P A N E L 8.
